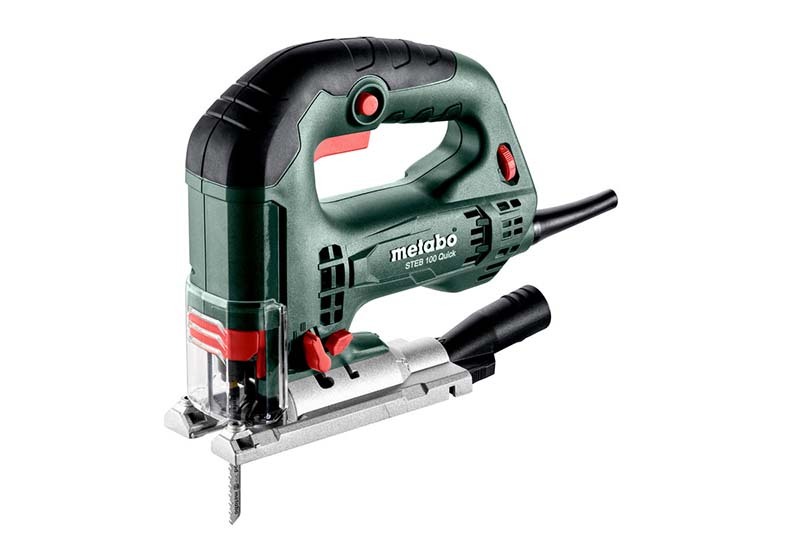

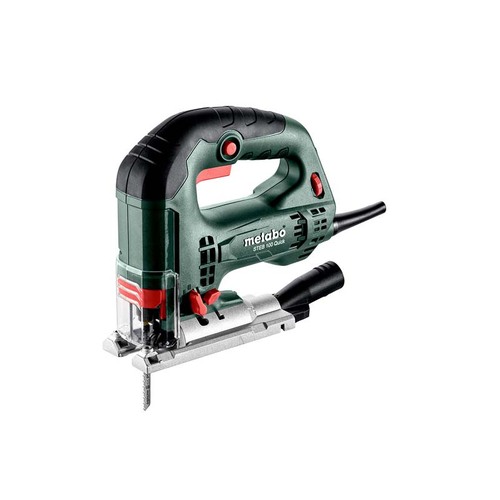

Metabo Universal Jigsaw - 601110500

• Universal jigsaw with bow-type handle for precise guidance while sawing.
• Precise and material-matched sawing due to the variable stroke rate, pendulum stroke and low-lying saw blade guidance with spring support.
• Metabo Quick for tool-free saw blade change and with automatic ejection.
• Top handle with non-slip soft-grip surface.
• Selectable chip blowing function ensures free view of cutting line.
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised stroke rates, which remain almost constant under load.

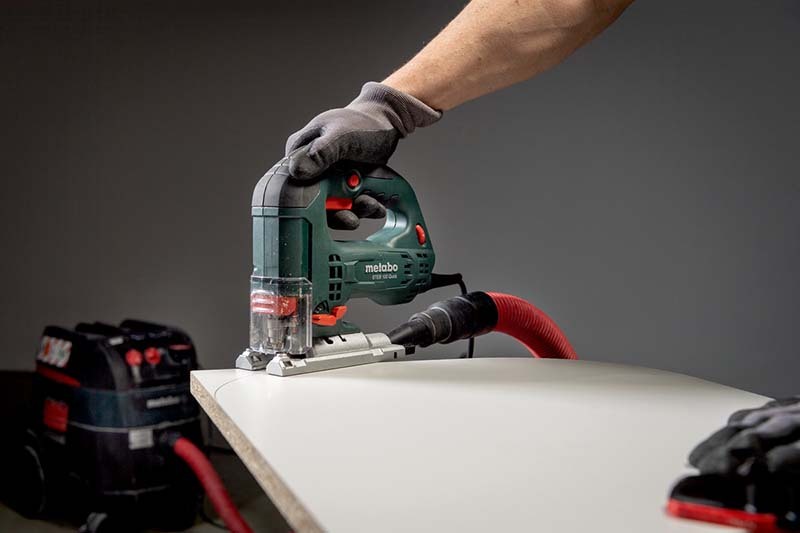

• Extraction possibility by means of connecting an all-purpose vacuum cleaner.
• Non-detachable protective glass that can be pushed down for effective extraction and for protection against flying chips.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Extraction Nozzles
• Jigsaw blade wood
• Hexagonal wrench
• Protective glass
• Chip Guard Plates

Characteristics

Rated input power
710 W
Output power
470 W
Cutting depth wood
100 mm / 4 "
Cutting depth NF metal
25 mm / 1 "
Cutting depth sheet steel
10 mm / 3/8 "
Swivel range from / to:
- 45 / + 45 °
Pendulum stroke levels
4
Strokes in idle
1000 - 3100 rpm
Saw blade stroke
22 mm / 7/8 "
Weight (without power cable)
2.1 kg / 4.6 lbs
Cable length
4 m / 13 "

Vibration

Sawing wood
13 m/s²
Uncertainty of measurement K
1.5 m/s²
Sawing metal
13.7 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
86 dB(A)
Sound power level (LwA)
97 dB(A)
Uncertainty of measurement K
3 dB(A)
