Description

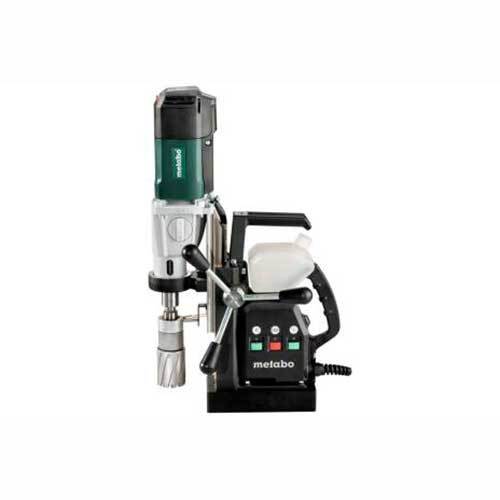

Metabo MAG 50 Magnetic Core Drill

  • Magnetic core drill with large depth of feed, therefore suitable for use of core drills, spiral drills and countersinks
  • Magnetic base with high holding power permits working on vertical surfaces and overhead
  • Robust Metabo marathon motor with internal wiring for long service life
  • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
  • Clockwise/anti-clockwise rotation with thread cutter
  • Durable two-speed gearbox with oil bath lubrication for ideal speeds
  • Integrated coolant container for easy to dose internal cooling of the core drill
  • Bright LED light for easy alignment in poor light conditions
  • Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
  • Protective circuit starts motor only if the magnet is activated
  • Overload protection: protects the motor from overheating
  • Restart protection: prevents unintentional start-up after power supply interruption
  • Lockable slide for comfortable tool change
  • Handle for easy carrying and lifting
  • Resistant mains cable (5 m) with rubber shroud

Contents

  • Industrial holder for Weldon shank 19 mm
  • Safety strap
  • Hexagon socket wrench SW 5
  • Swarf protection guard
  • Transport case
  • Ejector pins 75 and 100 mm
  • MK 2 drift key

Technical Data

  • Rated input power: 1200 W
  • Max. drill-Ø with core drill: 50 mm / 2 "
  • Max. drill-Ø with spiral drill: 20 mm / 3/4 "
  • Maximum drilling depth: 50 mm / 2 "
  • No-load speed: 100 - 250 / 200 - 450 rpm
  • Bit retainer: Morse taper MK 2 / Weldon shaft 19 mm (3/4")
  • Max. magnetic holding force: 12250 N

Characteristics

Rated input power 1200 W
Output power 620 W
Max. drill-Ø with core drill 50 mm / 2 "
Max. drill-Ø with spiral drill 20 mm / 3/4 "
Maximum drilling depth 50 mm / 2 "
Thread cutting M 16
No-load speed 100 - 250 / 200 - 450 rpm
Revolutions at rated load 250 / 450 rpm
Bit retainer Morse taper MK 2 / Weldon shaft 19 mm (3/4")
Weight 12.7 kg / 28 lbs
Cable length 5 m / 16 ft
Torque 90 / 50 Nm // 797 / 443 in-lbs
Max. depth of feed 160 mm / 6 5/16 "
Max. magnetic holding force 12250 N

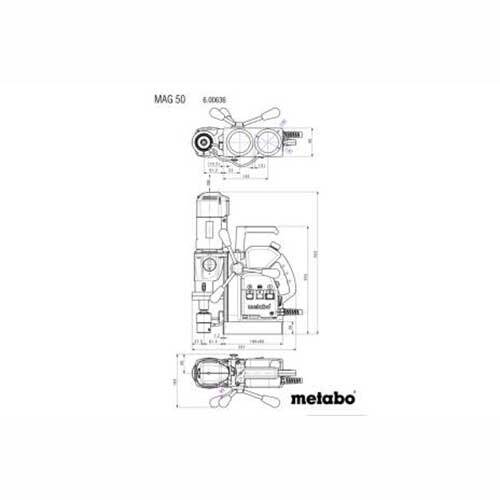

Dimensions of the magnet base 90 x 190 mm // 3 9/16 x 7 1/2 "
Height carriage lowest position 457 mm / 18 "
Height carriage topmost position 610 mm / 24 "



Vibration

Drilling in metal 2.5 m/s²
Uncertainty of measurement K 1.5 m/s²



Noise Emission

Sound pressure level 79 dB(A)
Sound power level (LwA) 92 dB(A)
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0175034
  • Brand Metabo
  • Model Number 600636500
  • Barcode Number 4007430238214
  • Type Magnetic Core Drill
