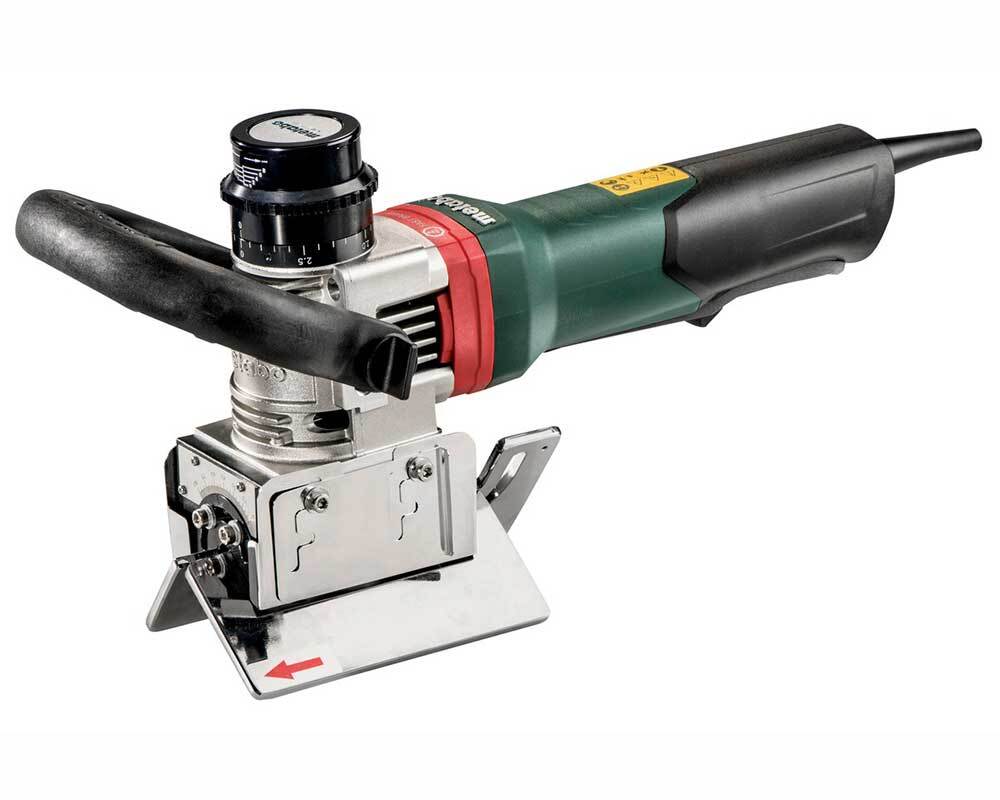

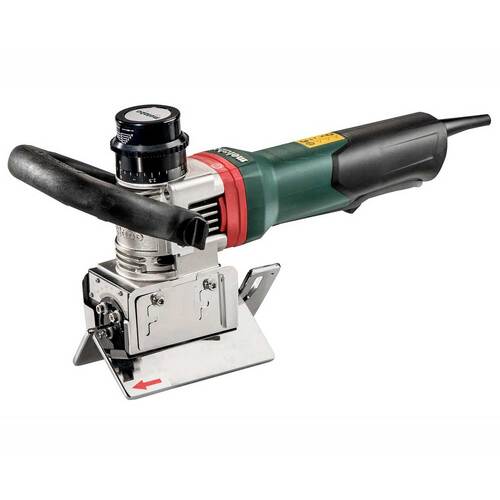

Metabo KFMPB 15-10 F Metal Bevelling Tool

• Metal bevelling tool for chamfer heights up to 10 mm for weld seam preparation with maximum user safety by virtue of a dead-man switch and brake system

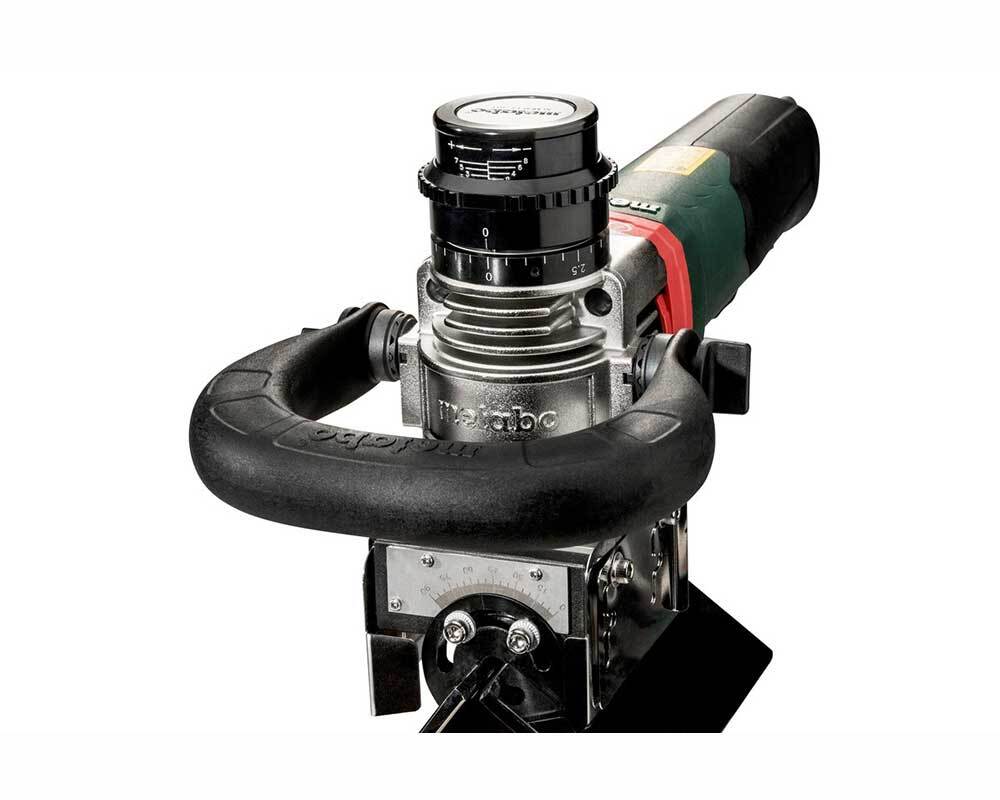

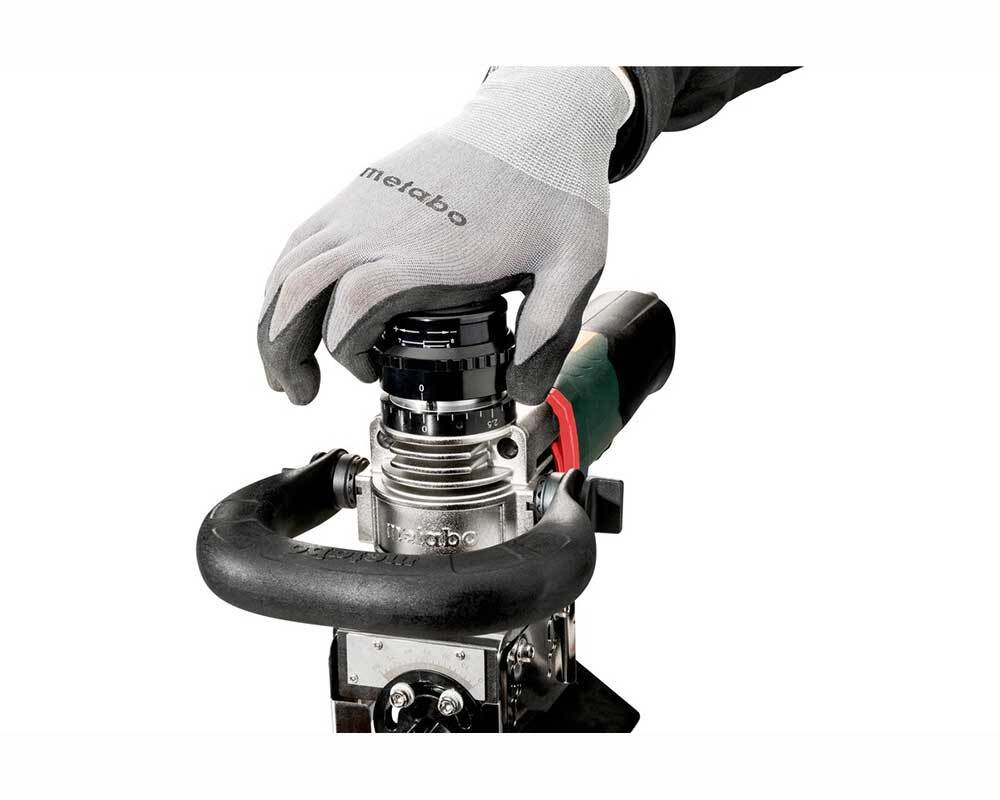

• One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working

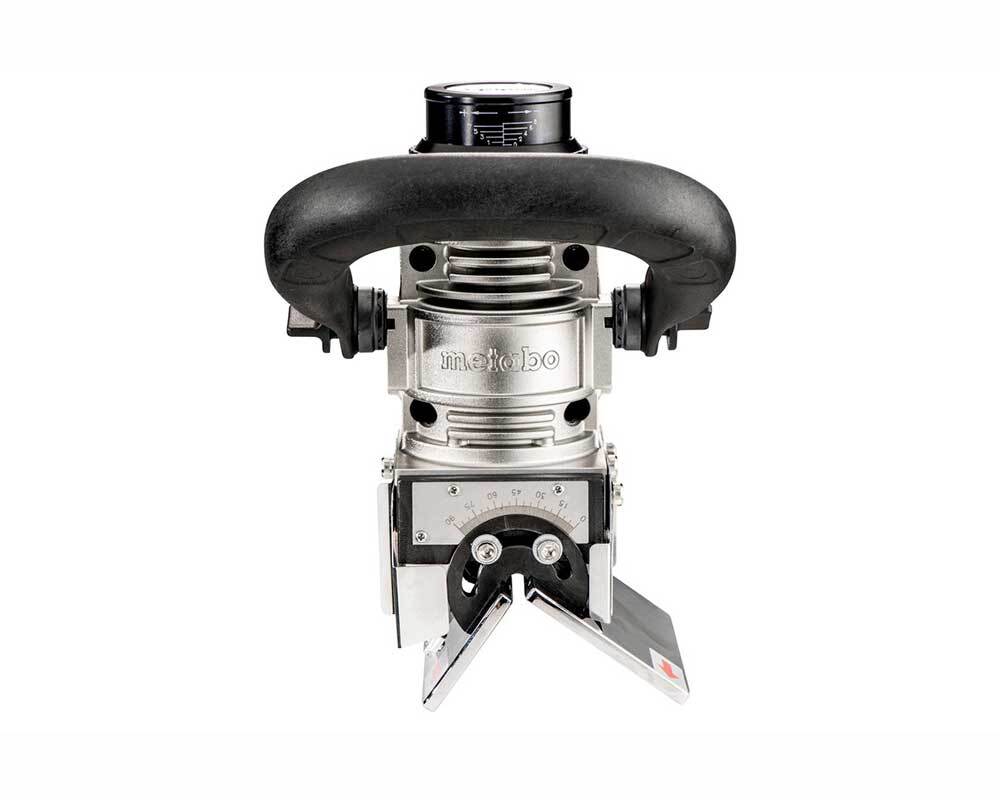

• Precise setting of the chamfer angle directly via the guide plates

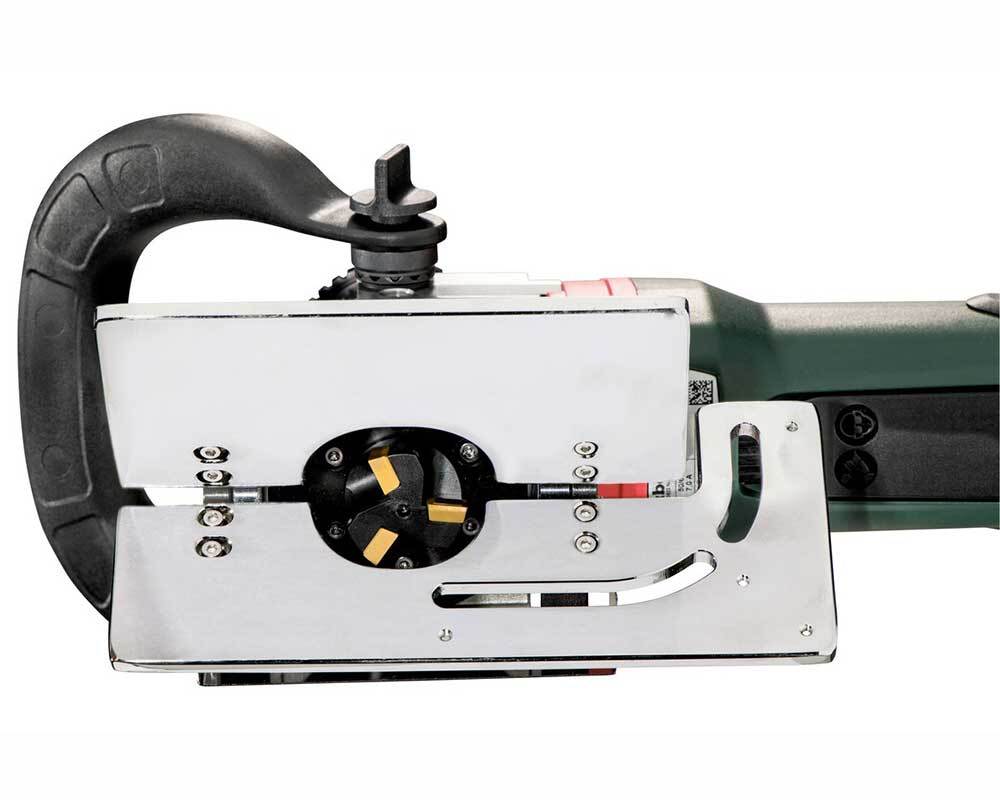

• Universal milling head with three carbide indexable inserts for all chamfer angles from 0-90°
• Controlled working by virtue of large-scale guide plates
• Stop roller to guide along pipes for easy preparation of weld seams
• Bail handle adjusts without tools for secure, even guiding
• Metabo Marathon-motor with patented dust protection for long service life
• Tacho Constamatic (TC) Full-wave Electronics: fast work progress by means of constant speed under load
• Patented, mechanical brake system stops the router bit within 2 seconds after switching off
• Electronic overload protection, soft start and restart protection
• Protection of the user by virtue of lateral plates for conveying the chips

Includes

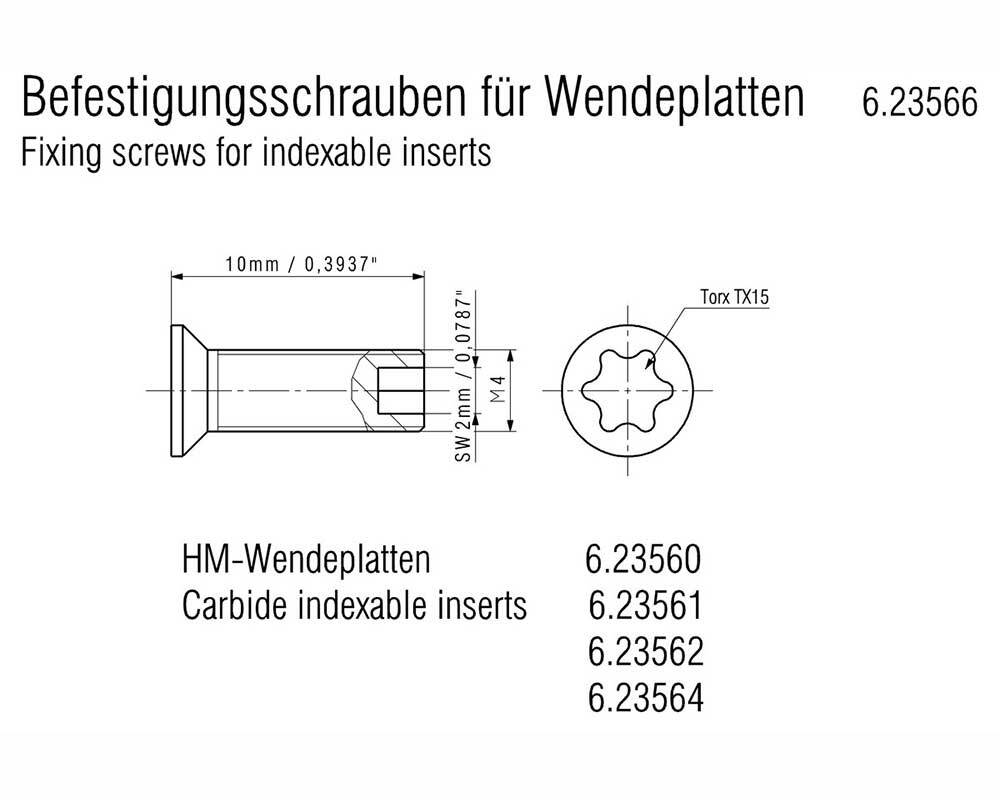

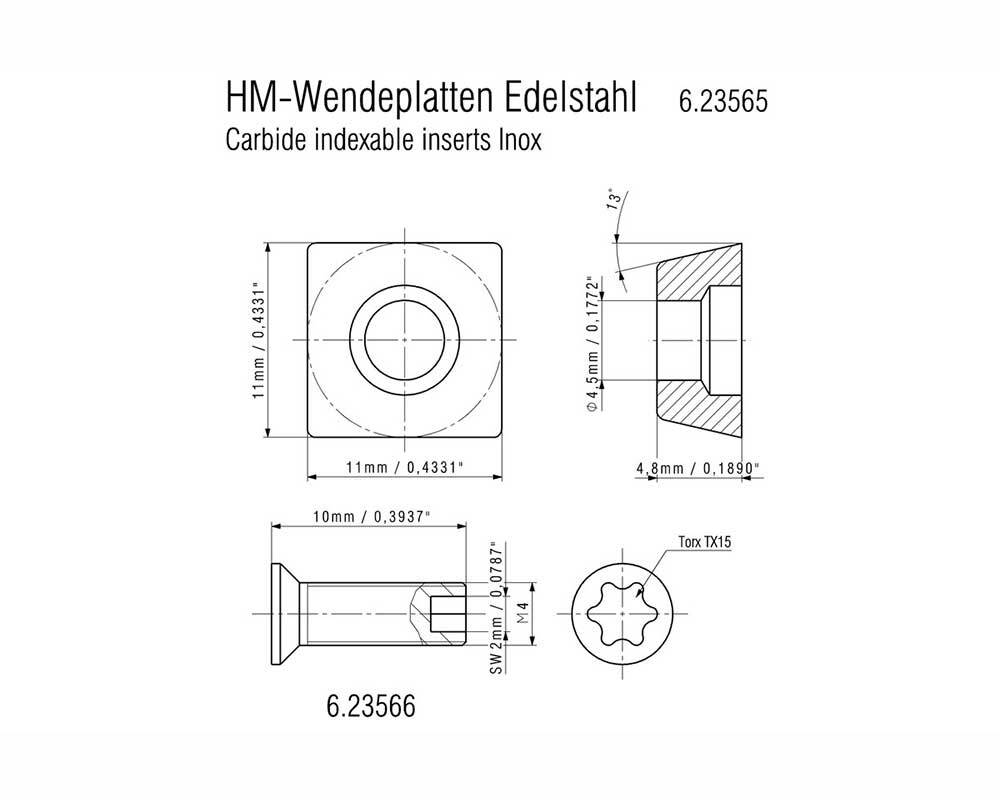

• 3 Carbide indexable inserts Universal
• Stop roller
• Screwdriver for Torx screws 15
• Screwdriver SW 4 with T-handle
• Open-jawed spanner SW 10
• Bow-type handle
• Metal carry case

Technical Data

• Rated input power: 1550 W
• Max. chamfer height at 45°: 10 mm / 3/8 "

Characteristics

No-load speed
12500 rpm
Rated input power
1550 W
Output power
840 W
Type of edges
Chamfer
Max. chamfer width 45°
14 mm / 9/16 "
Max. chamfer height at 45°
10 mm / 3/8 "

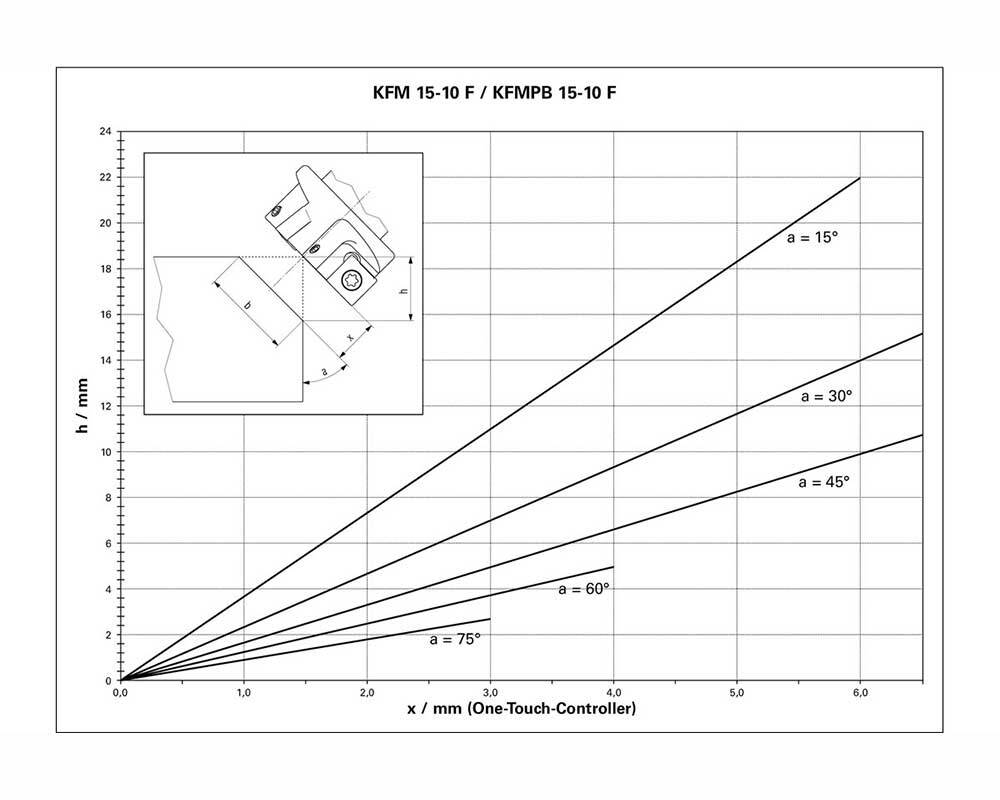

Grading of cutting depth setting
0.1 mm / 0.00394 "
Curves smallest outer Ø
75 mm / 2 15/16 "
Weight (without power cable)
5.1 kg / 11.2 lbs
Cable length
4 m / 13 ft

Vibration

Vibration
2.5 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
91 dB(A)
Sound power level (LwA)
102 dB(A)
Uncertainty of measurement K
3 dB(A)
