Description

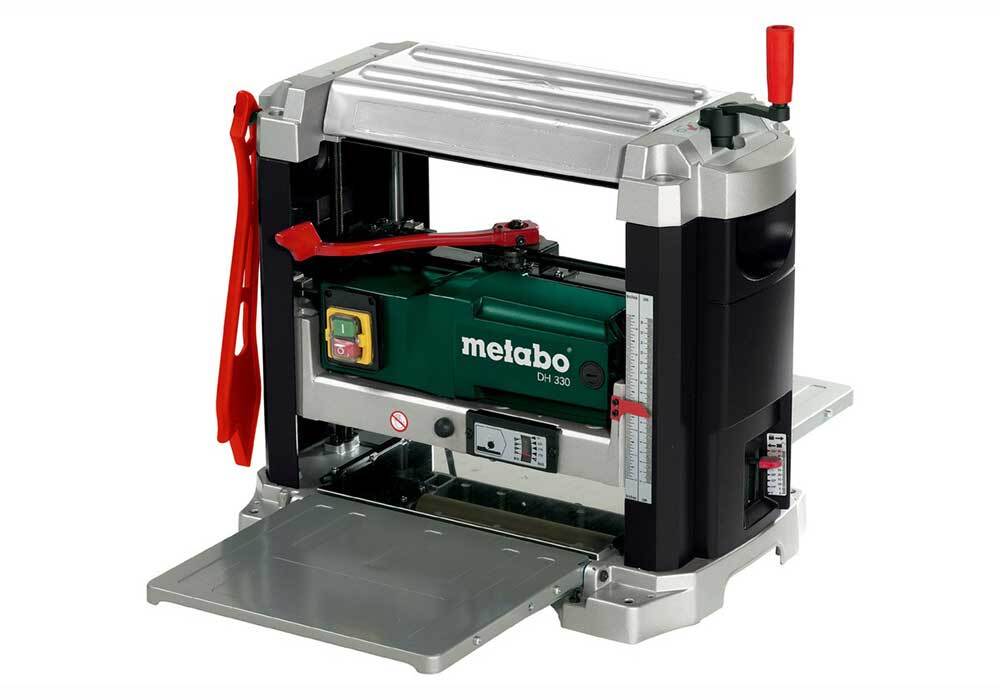

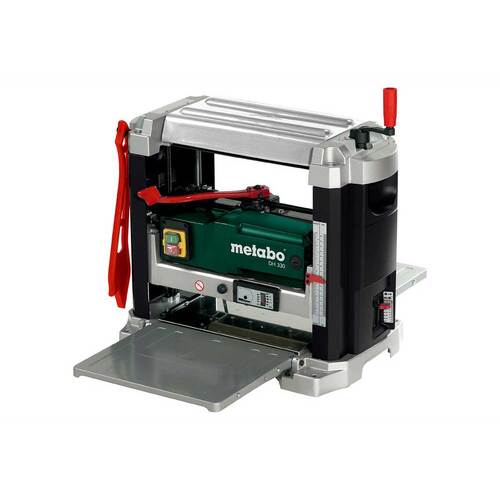

Metabo Bench Thicknesser DH 330 (0200033019)

Ideal for mobile use due to low weight.
Stable gear for uniform work piece feed
Convenient height adjustment with crank handle.
Easy setting of common passage heights using stop points.
Powerful universal motor for powerful lugging drive and even planing result.
Restart protection: prevents unintentional start-up after power supply interruption.

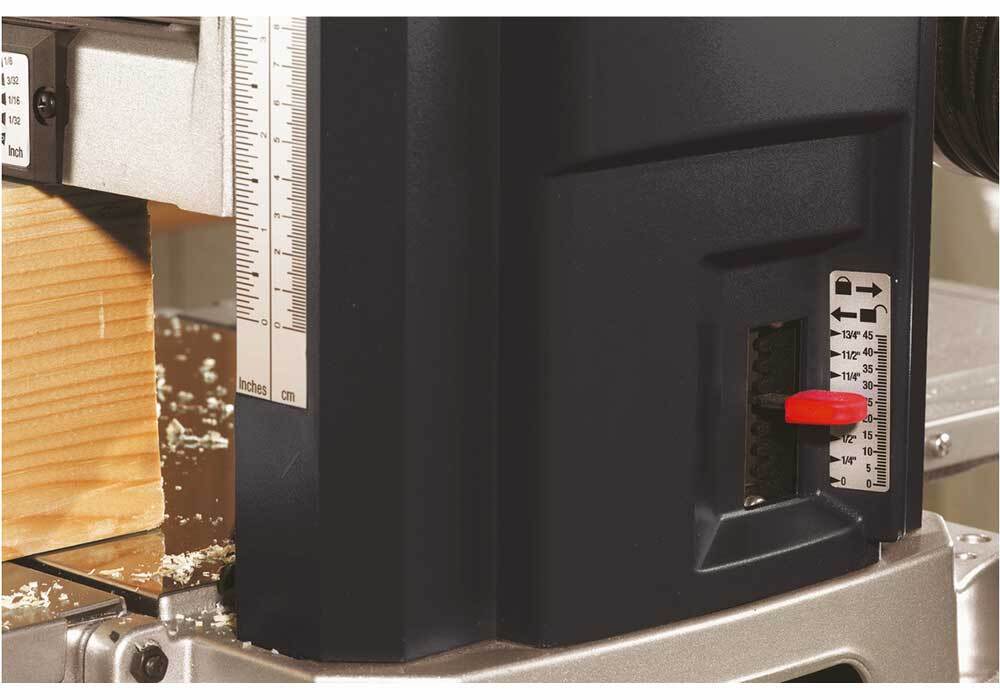

Precise thickness adjustment for quick and exact planing.
Large feed and exit tables support the conveyance of long materials.
Planing locking mechanism prevents unintentional adjustment of the chip removal setting.

Note

The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to the content and product description.
Accessories are included only if listed in the contents.

Contents

Technical Data

Characteristics

Dimensions	579 x 857 x 574 mm // 1.9 x 2.9 x 1.9 ft
Chip removal bench thicknesser	0 - 3 mm // 0 - 1/8 "
Material thickness table	Cast aluminium / special steel aluminium
Thickness table L x W	840 x 330 mm // 33 x 13 "
Passage height/width	152 / 330 mm // 6 / 13 "
Feed rate	7.51 m/min / 25 ft/min
Diameter of blade shaft	47 mm / 1 7/8 "
Number of blades	2
Revolutions of blade shaft	9800 rpm
Mains voltage	220 - 240 V
Rated input power	1800 W
Weight	35 kg / 77.2 lbs
