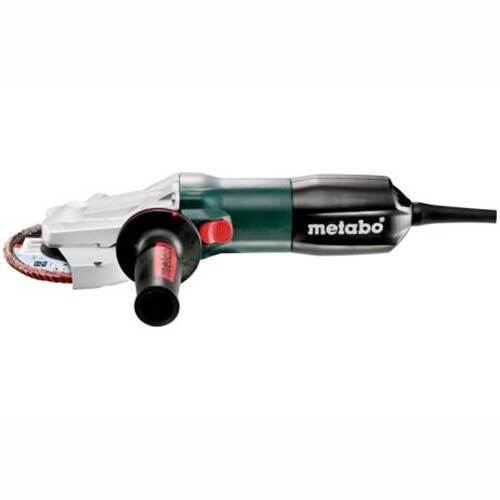

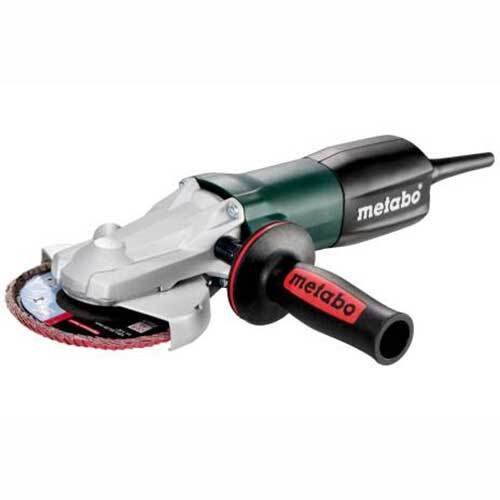

Metabo 613060190 Flat-Head Angle Grinder

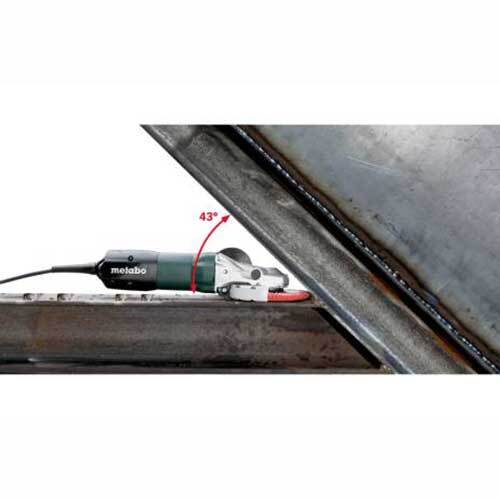

• Most compact flat-head angle grinder for working at acute angles down to 43°.

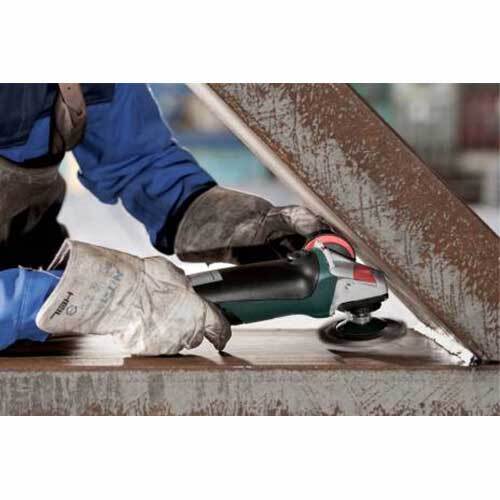

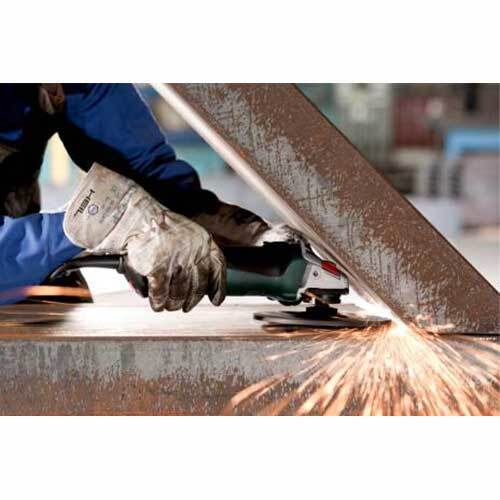

• Particularly developed for the removal of weld slag, rust or paint in narrow frame constructions and for working in tight spaces.
• Metabo Marathon motor with patented dust protection for long service life.
• Constamatic (C)-Full wave electronics: fast work progress by means of almost constant speed under load.
• Metabo Quick for tool-free disc change by means of a quick-locking nut.
• Tool-free adjustable guard; twist-proof.
• Electronic safety shutdown: reduces kickback if the disc stops unexpectedly - for high user safety.
• Electronic overload protection, soft start and restart protection.
• Auto-stop carbon brushes to protect the motor.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Guard
• Inner support flange
• Quick-locking nut
• Side handle
• 1 Flap disc Flexiamant Super Convex (125mm; P60)

Technical Data

• Minimum accessible angle: 43 °
• Disc-Ø: 125 mm / 5"
• Rated input power: 910W
• No-load speed: 10000rpm
• Torque: 2 Nm / 18 in-lbs

Characteristics

Minimum accessible angle
43 °
Disc-√ò
125 mm / 5 "
Rated input power
910 W
Output power
430 W
No-load speed
10000 rpm
Revolutions at rated load
8200 rpm
Torque
2 Nm / 18 in-lbs
Spindle thread
M 14
Weight (without power cable)
2.1 kg / 4.6 lbs
Cable length
4 m / 13 ft
Handle circumference
197 mm / 7 3/4 "

Vibration

Surface grinding
5.5 m/s²
Uncertainty of measurement K
1.5 m/s²
Grinding with sandpaper
2.5 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
88 dB(A)
Sound power level (LwA)
99 dB(A)
Uncertainty of measurement K
3 dB(A)
