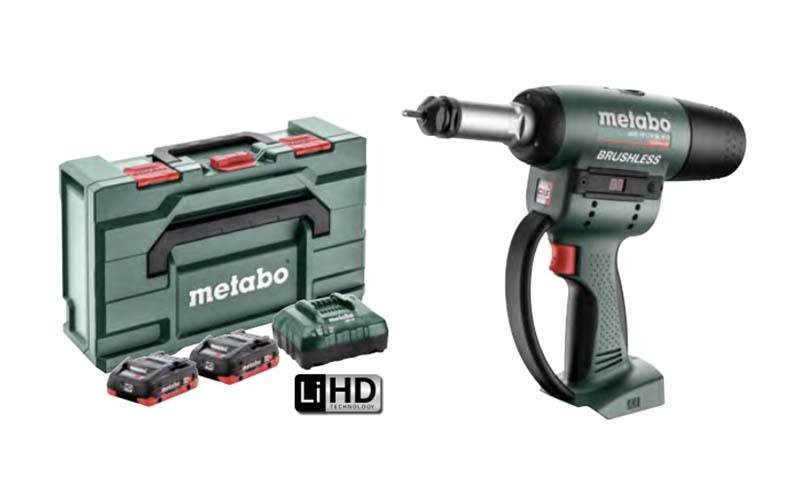

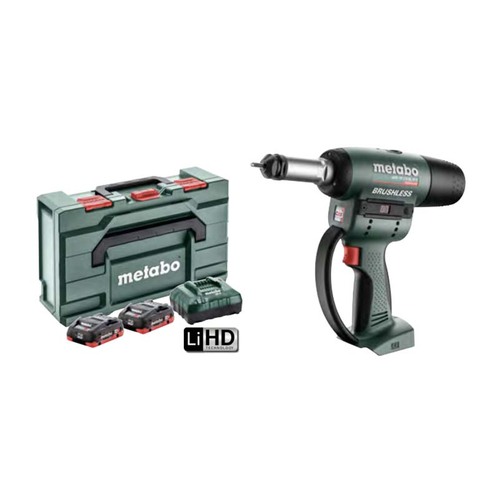

Metabo Cordless Rivet Nut Gun Kit - AU60178800

• Rivet Nut Gun NMP 18 LTX BL M10
• 2 x 4.0 Ah LiHD Battery Packs
• ASC 55 Air-Cooled Charger
• metaBOX 145 M case

About NMP 18 LTX BL M10

• Cordless rivet nut gun with setting power adjustment for blind rivet nuts up to M10 in aluminium, M8 in steel, M6 in stainless steel.
• Versatile use thanks to mandrel quick change system.
• Automatic drill-on of the blind rivet before setting.
• Time-saving auto-reverse function: Pull mechanism returns to starting position after setting and nut is drilled off the mandrel.
• Easy presetting of the placement force on the LED display for working that is gentle on the material and threads.
• LED display with protective cover: 10 memory positions for retrieveable settings.
• Selectable LED light during setting or continuously (max. 10 min).
• Eyelet for energy-saving work with balancer / spring tension.
• With matching adapter (accessory) also suitable for blind rivet studs.
• Powerful Brushless motor for quick work progress and highest efficiency.
• Practical storage screwed onto the housing for additional mandrels.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Technical Data

Characteristics

Vibration

Noise emission

About LIHD Battery Pack

• LiHD battery packs for ultimate performance and extremely long application with minimal temperature generation.
• Intelligent battery management for long-lasting battery packs with a 3-year warranty.
• Patented “AIR COOLED“ charging technology.
• Permanent Electronic Single Cell Protection (ESCP) when charging, for particularly long life.
• Processor-controlled charge and discharge management.
• Capacity display with almost no self-discharge.

About Air Cooled Charger ASC 55

• The universal one: one charger for all slide-on battery packs of all Volt classes (12-36V).
• Patented "AIR COOLED" charging technology for short charging times thanks to cooling the battery pack during the charging cycle.
• Optimal communication between battery pack and charger for maximum service life of the battery packs.
• 3-year warranty on all Metabo battery packs and chargers irrespective of the number of charging cycles.
• "Air Cooled" function: the patented principle is based on air-cooling the battery pack during the charging process.
• The battery packs are gently cooled down to the required charging temperature, and then during the charging process are constantly maintained at optimum temperature. With this principle, a higher tool life of the battery packs and up to 30% shorter total charging time can be achieved.
• Battery voltage: 12 - 36 V
• Mains voltage: 220 - 240 V
• Mains frequency: 50 - 60 Hz
• Max. charging current: 3 / 4 A
• Output rating: 55 W
• Charging time for 18 V/4.0 Ah: 80 min
• Charging time for 18 V/8.0 Ah: 160 min
