Description

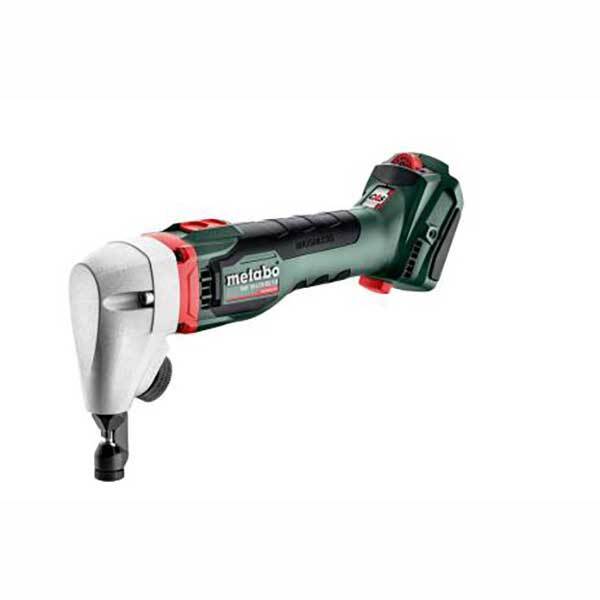

Metabo Brushless Metal Sheet Nibbler - NIV 18 LTX BL 1.6

  • Handy, powerful cordless nibblers for effortless cutting of flat and shaped sheets.
  • Good cornering ability for notches and interior cut-outs of a radius of 40 mm or more.
  • Fast, tool-free adjustment of cutting direction by up to 360°, in 45° steps.
  • High feed rate for faster working, thanks to an efficient brushless motor.
  • Infinitely adjustable cutting speed for individual customisation to the given material and task at hand.
  • Distortion- and spark-free cutting, without the annoyance of metal dust.
  • Comfortable handling thanks to low weight, slim grip area and switch located on the top.
  • Metabo Quick: tool-free quick changing of dies and punches.
  • Electronic overload protection for long service life.
  • With chip collection bag to protect against contact corrosion from ejected chips.

Note

  • The machine shown may differ in equipment and technical details depending on the configuration.
  • Kindly pay attention to the content and product description.
  • Accessories are included only if listed in the contents.

Contents

  • Punch
  • Combo-spanner
  • without battery pack, without charger
  • Die
  • Chip Collection Bag

Technical Data

  • Battery voltage: 18 V
  • Max. sheet thickness for steel: 400 N/mm²: 1.6mm / 0.0629"
  • Strokes in idle: 660 - 2360 rpm
  • Smallest curve radius: 40 mm / 1.5748"

Characteristics

Type of battery pack Li-Power
Battery voltage 18 V
Max. sheet thickness for steel: 400 N/mm² 1.6 mm / 0.0629 "
Max. sheet thickness for steel: 600 N/mm2 1.2 mm / 0.0472 "
Max. sheet thickness for steel: 800 N/mm2 0.7 mm / 0.0275 "
Max. sheet thickness for aluminium: 250 N/mm2 2 mm / 0.0787 "
Strokes in idle 660 - 2360 rpm
Cutting speed 1.2 - 2.6 m/min // 47.2 - 102.3 inch/min
Cutting width 5 mm / 0.1968 "
Starting hole diameter 21 mm / 0.8267 "
Smallest curve radius 40 mm / 1.5748 "
Weight without battery pack 1.3 kg / 2.9 lbs
Weight with battery pack 1.7 kg / 3.7 lbs

Vibration

Cutting of sheets 8 m/s²
Uncertainty of measurement K 1.6 m/s²

Noise Emission

Sound pressure level 96 dB(A)
Sound power level (LwA) 107 dB(A)
Uncertainty of measurement K 3 dB(A

Specifications

  • AIMS SKU A0174944
  • Brand Metabo
  • Model Number 601614850
  • Barcode Number 4061792188938
  • Type Metal Sheet Nibbler
SKU: A0174944 On Sale

Metabo 18V 1.6mm Brushless Metal Sheet Nibbler - (Tool Only)

Metabo Brushless Metal Sheet Nibbler - NIV 18 LTX BL 1.6

$733.31
$771.91
