Description

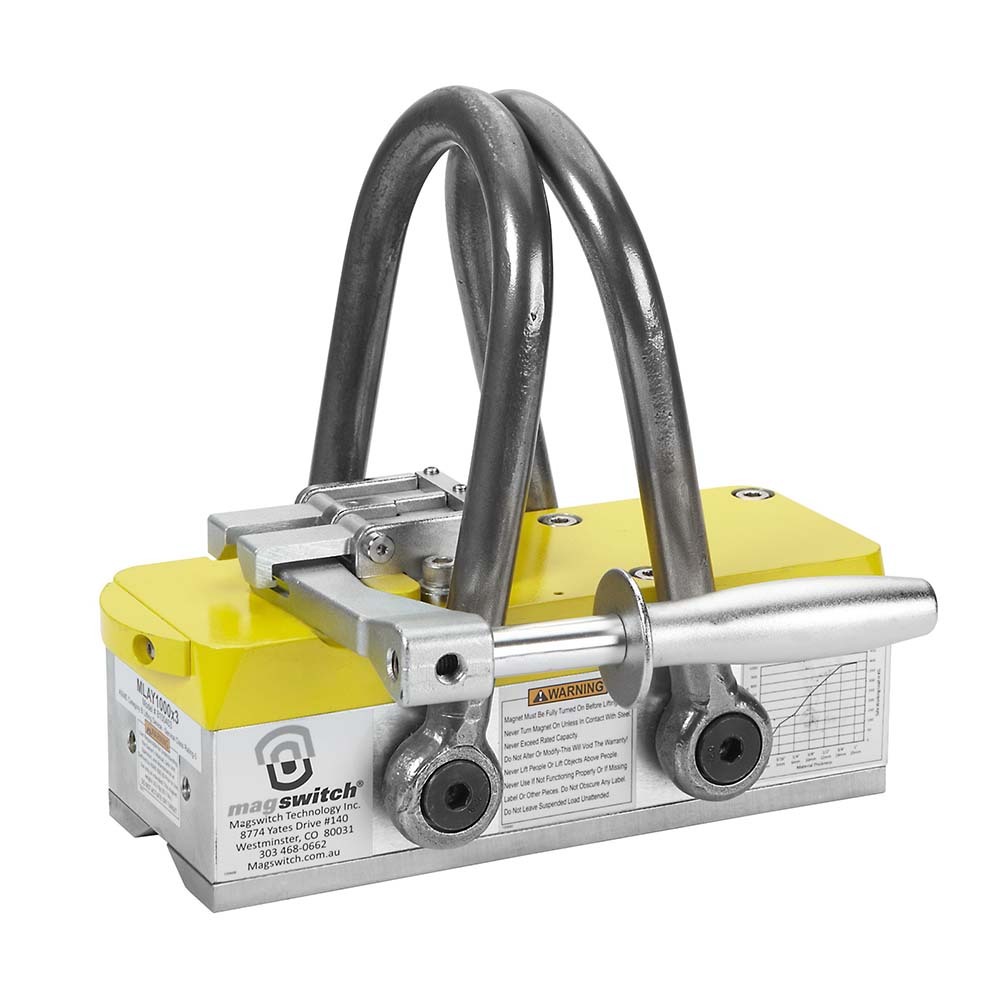

Magswitch MLAY1000x3 Lifting Magnet

  • Magswitch LAY series magnets utilize different size magnets to attain different field depths.
  • This allows for greater working loads and increased control over larger work pieces.

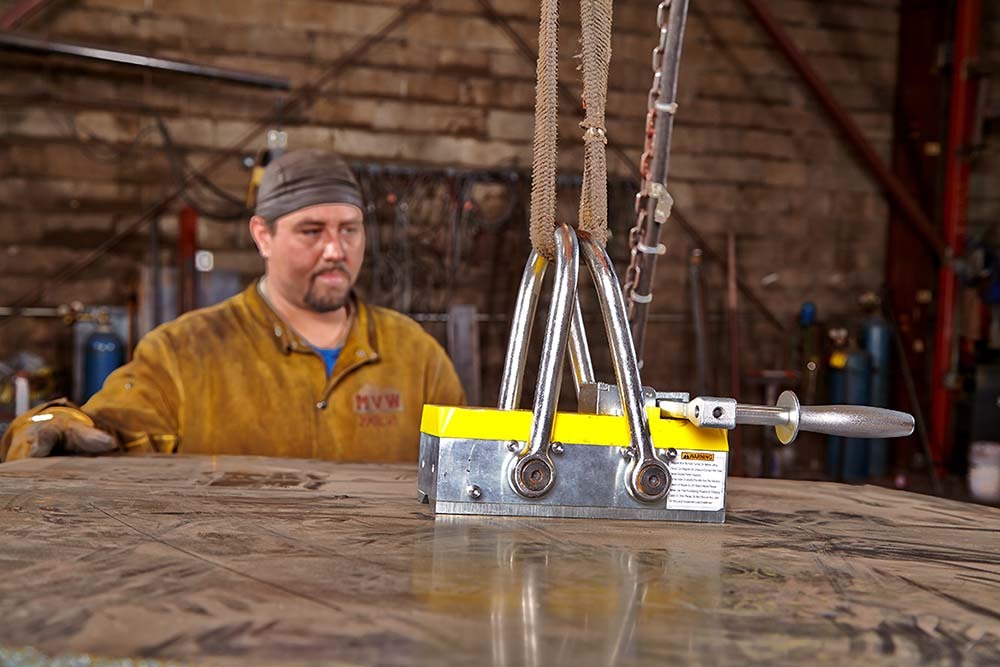

  • The MLAY1000x3 is a lightweight heavy lifting magnet ideal for lifting thick sheet, beams, pipe, and performs well on air gaps such as rust and dirt.

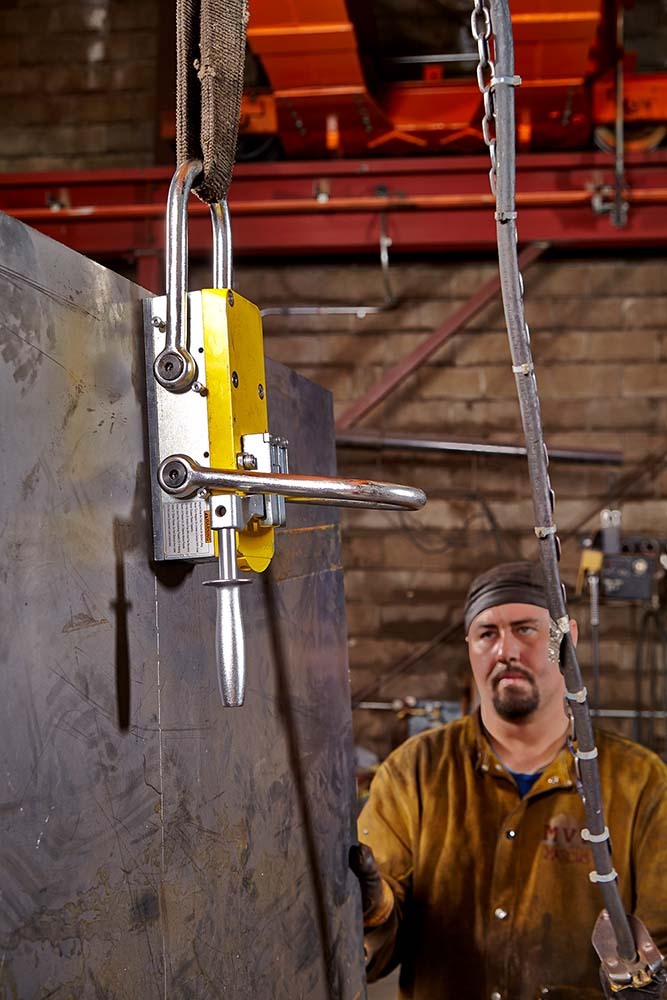

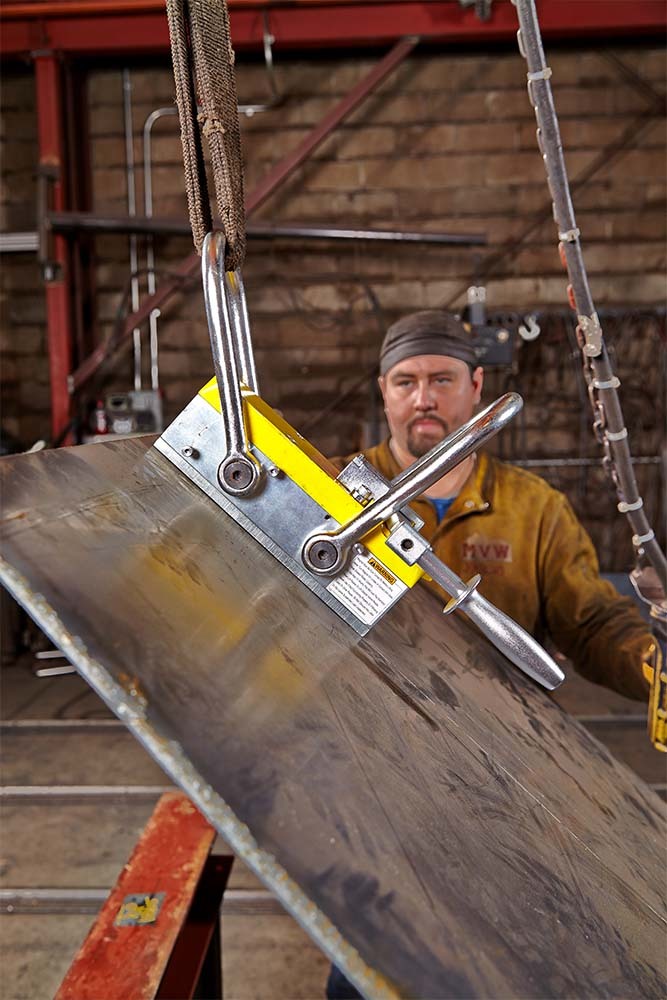

  • It features a unique dual swivel hook design for both load stability and lifting from horizontal to vertical.
  • With customizable pole shoes to fit almost any application, the LAY is a great all around tool that is perfect for picking pipe and round as well as large plate steel

Specifications

Max Breakaway* 2733 lbs/1242 kg
Safe Working Load* 911 lbs/414 kg
Full Saturation Thickness 3/4” / 12.7mm
Max Safe Shear* 198 lbs/90 kg
Minimum Thickness for De-Stack 3/4" / 12.7mm
Net Weight 36.5 lbs/16.6 kg
Mounting Thread M8x1.25
Overall Height 264.52 mm
Magnetic Pole Footprint 255.0x97.6 mm

* Max Breakaway determined in laboratory environment on 2" thick SAE1018 Steel with surface application. Always test the magswitch in each application before deployment.

About MSA Magswitch

  • The Magswitch Lifting Magnets are a powerful tool designed for moving heavy steel sections, beams, and components.
  • These magnets allow for operators to safely and easily lift steel material on and off trucks, cutting beds, guillotines, saws, etc.
  • Not only do these magnets substantially save time and allow for increase in production, they also greatly reduce WHS risks such as back injury caused by lifting heavy steel objects.
  • Magswitch technology values Heavy Lifting capabilities to a whole new level of strength & safety.

Features

  • Lock On and Off handle – Magnet turns completely On and Of
  • Superior hold on thin steel (7mm deep field)
  • Compact, lightweight and easy actuation
  • Lifts large flat sheets, beams and pipe
  • Performs well on air gaps such as rust and dirt
  • Customizable pole shoes to fit almost any application
  • Magnet stays clean as you can wipe off debris easily

Specifications

  • AIMS SKU A0159637
  • Brand Magswitch
  • Model Number 8100403
  • Barcode Number 087862800124
  • Type Lifting Magnet
SKU: A0159637

Magswitch MLAY1000x3 Lifting Magnet

Magswitch Lifting Magnet

$2,864.25

How it works.

Make 4 payments of $716.06 over 8 weeks and get it now!


Buy now, pay later.
