Description

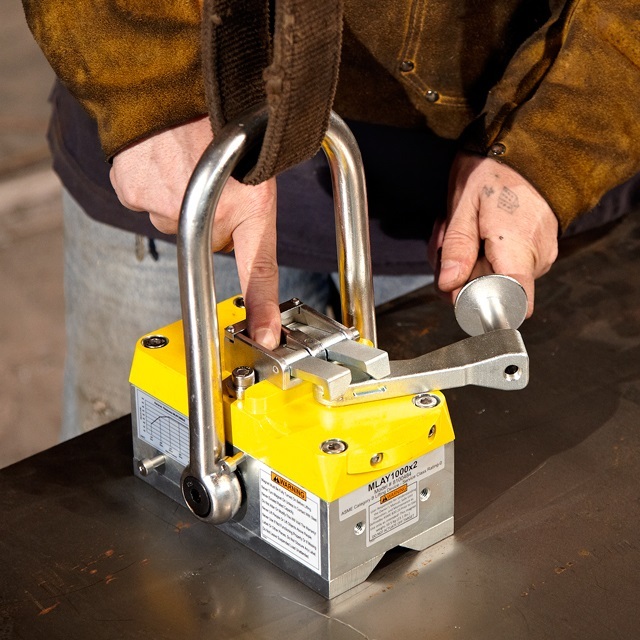

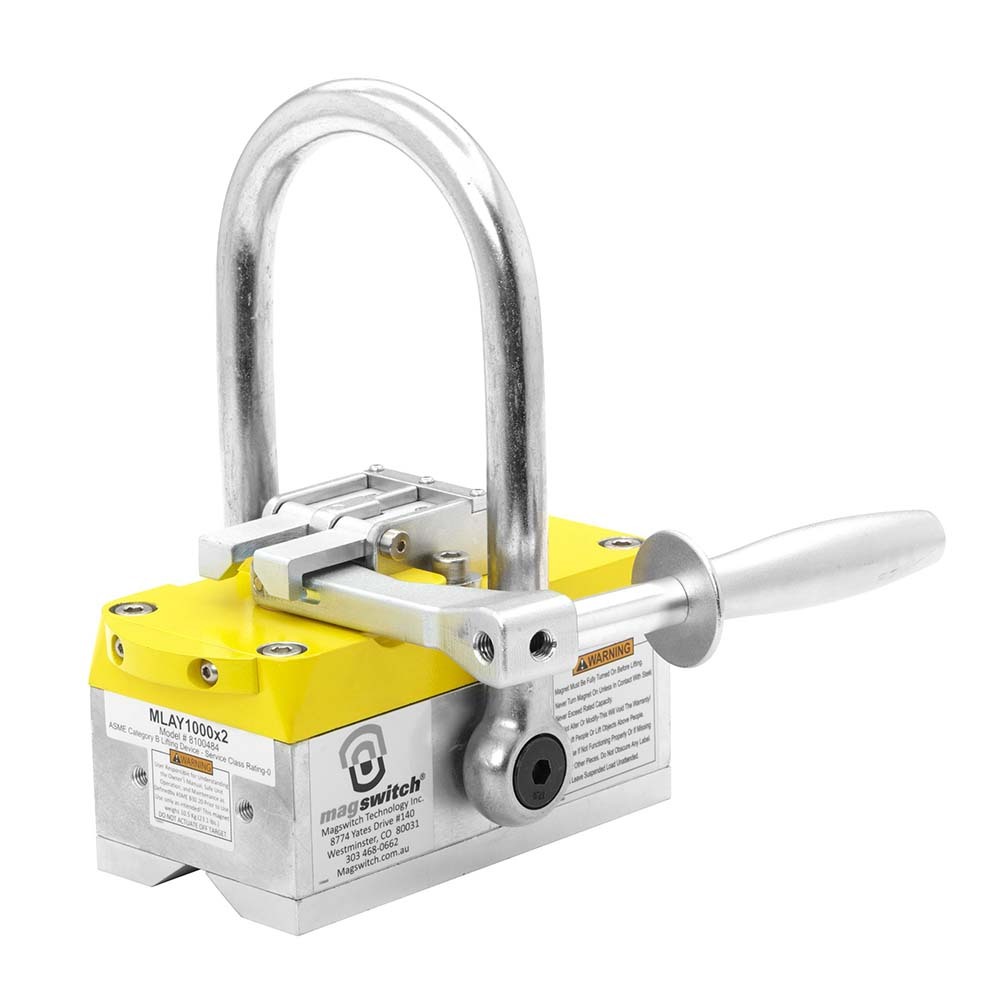

Magswitch MLAY1000x2 Lifting Magnet

Magswitch LAY series magnets utilize different size magnets to attain different field depths.
This allows for greater working loads and increased control over larger work pieces.
The MLAY1000x2 is a lightweight heavy lifting magnet ideal for lifting thick sheet, beams, pipe, and performs well on air gaps such as rust and dirt.
It features a unique single swivel hook design for lifting from horizontal to vertical.

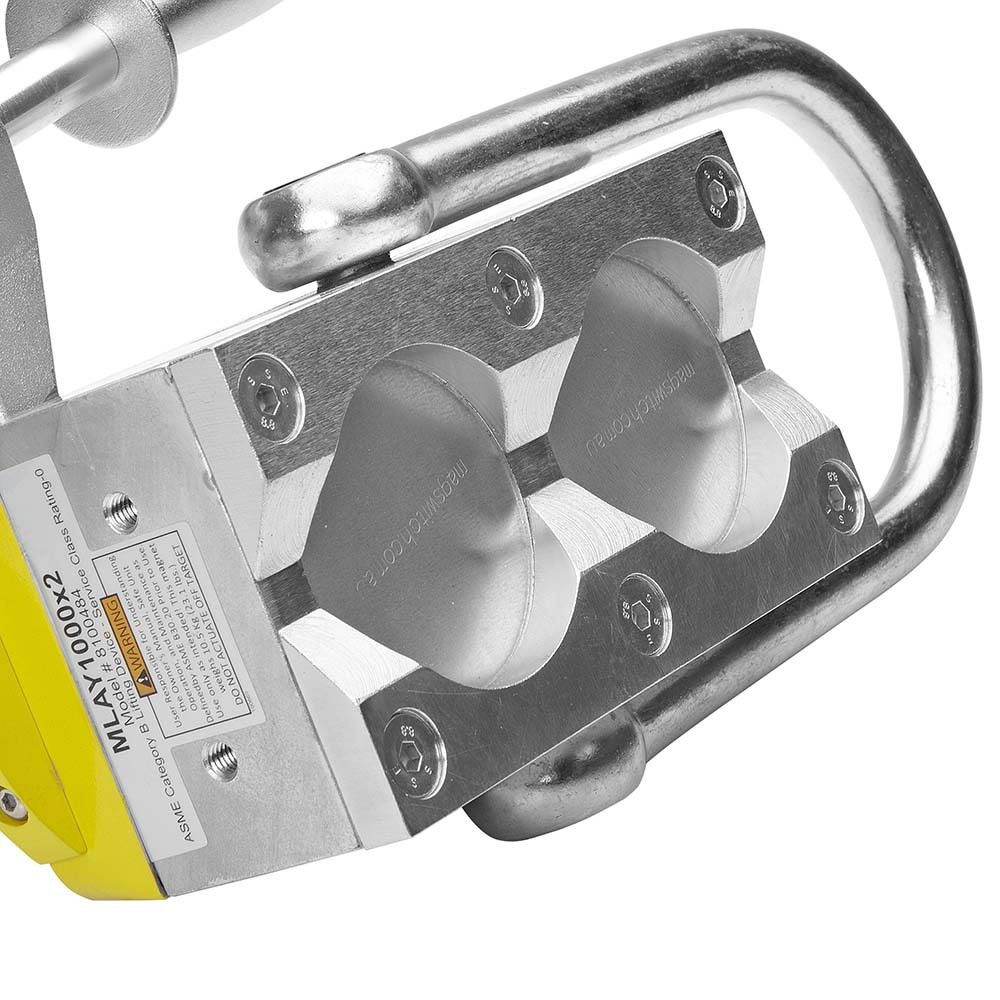

With customizable pole shoes to fit almost any application, the LAY is a great all around tool that is perfect for picking pipe and round as well as large plate steel.

Specifications

Max Breakaway*	2000 lbs/907 kg
Safe Working Load*	667 lbs/303 kg
Full Saturation Thickness	12.7mm
Max Safe Shear*	125.4 lbs/57 kg
Minimum Thickness for De-Stack	0.8" / 19.1mm
Net Weight	23.8 lbs/10.8 kg
Mounting Thread	M8x1.25
Overall Height	269.5 mm
Magnetic Pole Footprint	177.5x96.0 mm

* Max Breakaway determined in laboratory environment on 2" thick SAE1018 Steel with surface application. Always test the magswitch in each application before deployment.

About MSA Magswitch

The Magswitch Lifting Magnets are a powerful tool designed for moving heavy steel sections, beams, and components.
These magnets allow for operators to safely and easily lift steel material on and off trucks, cutting beds, guillotines, saws, etc.
Not only do these magnets substantially save time and allow for increase in production, they also greatly reduce WHS risks such as back injury caused by lifting heavy steel objects.
Magswitch technology values Heavy Lifting capabilities to a whole new level of strength & safety.
