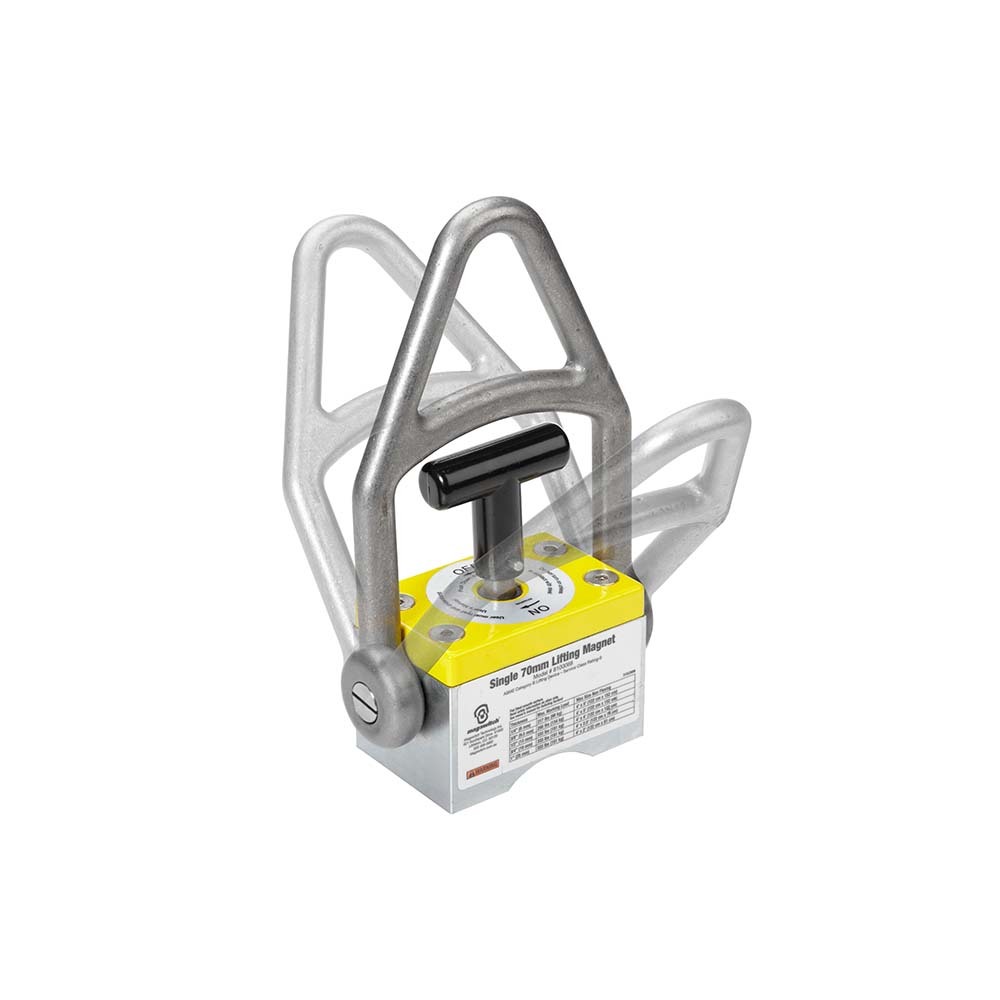

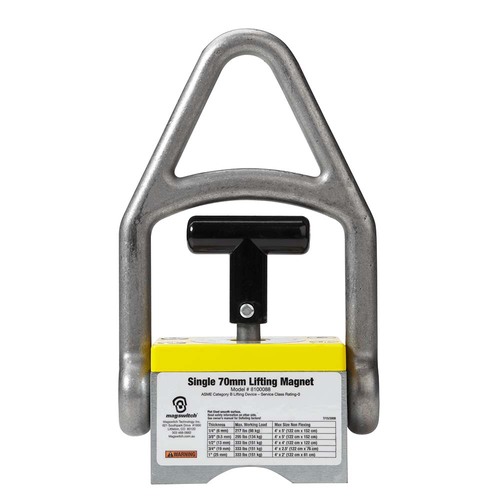

Magswitch MLAY1000 Lifting Magnet

• Magswitch LAY series magnets utilize different size magnets to attain different field depths.
• The MLAY1000 series utilizes 70mm magnets to achieve full saturation at 1/2 inch and greater.
• The MLAY1000 is a medium duty lifting magnet ideal for fitting in tight spots and lifting beams and medium sheets.
• This unit is great for lifting loads with painted or rusty surfaces as the deep field penetrates further into the metal.

Max Breakaway*
1000 lbs/454 kg
Safe Working Load*
333 lbs/151 kg
Full Saturation Thickness
3/4" / 12.7mm
Max Safe Shear*
50 lbs/22.7 kg
Minimum Thickness for De-Stack
3/4" / 12.7.5mm
Net Weight
11.5 lbs/5.2 kg
Overall Height
253.12 mm
Magnetic Pole Footprint
108.0 x 72.0 mm

* Max Breakaway determined in laboratory environment on 2" thick SAE1018 Steel with surface application. Always test the magswitch in each application before deployment.

About MSA Magswitch

• The Magswitch Lifting Magnets are a powerful tool designed for moving heavy steel sections, beams, and components.
• These magnets allow for operators to safely and easily lift steel material on and off trucks, cutting beds, guillotines, saws, etc.
• Not only do these magnets substantially save time and allow for increase in production, they also greatly reduce WHS risks such as back injury caused by lifting heavy steel objects.
• Magswitch technology values Heavy Lifting capabilities to a whole new level of strength & safety.

Specifications

Features

• Lock On and Off handle – Magnet turns completely On and Of
• Superior hold on thin steel (7mm deep field)
• Compact, lightweight and easy actuation
• Lifts large flat sheets, beams and pipe
• Performs well on air gaps such as rust and dirt
• Customizable pole shoes to fit almost any application
• Magnet stays clean as you can wipe off debris easily
