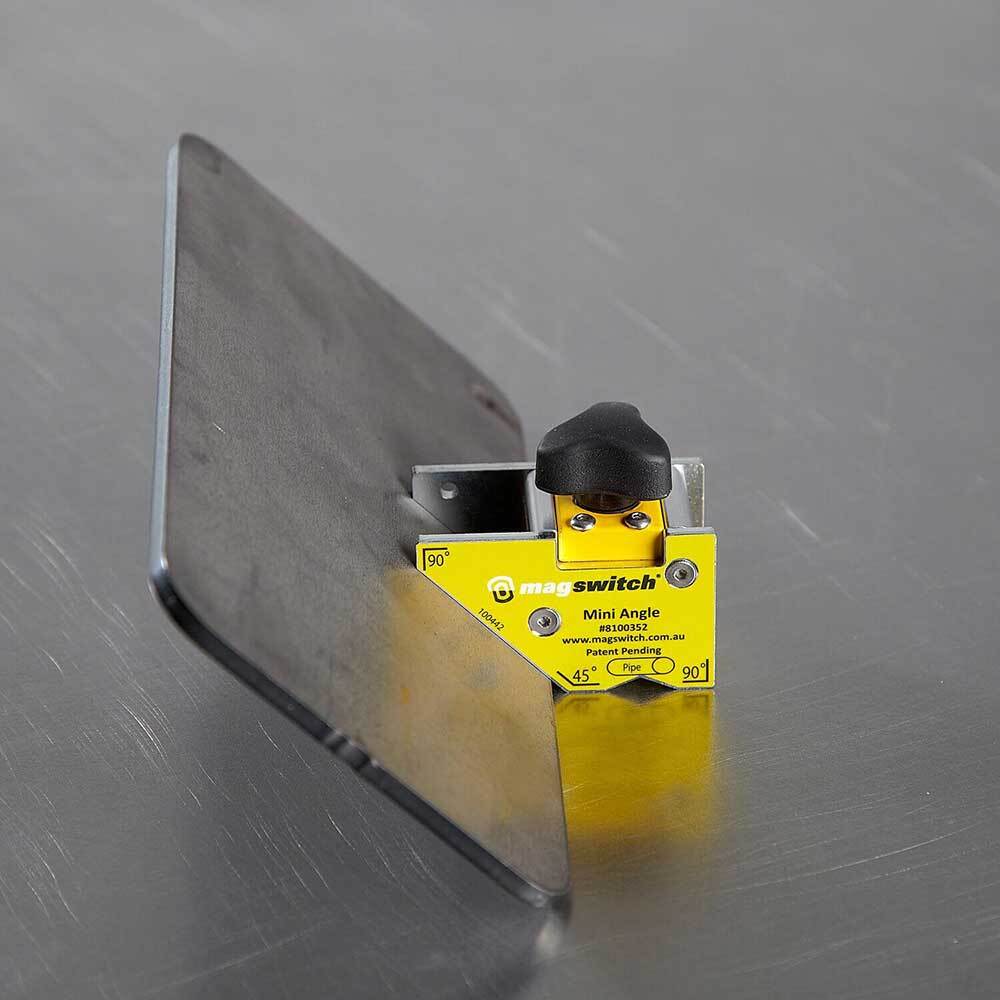

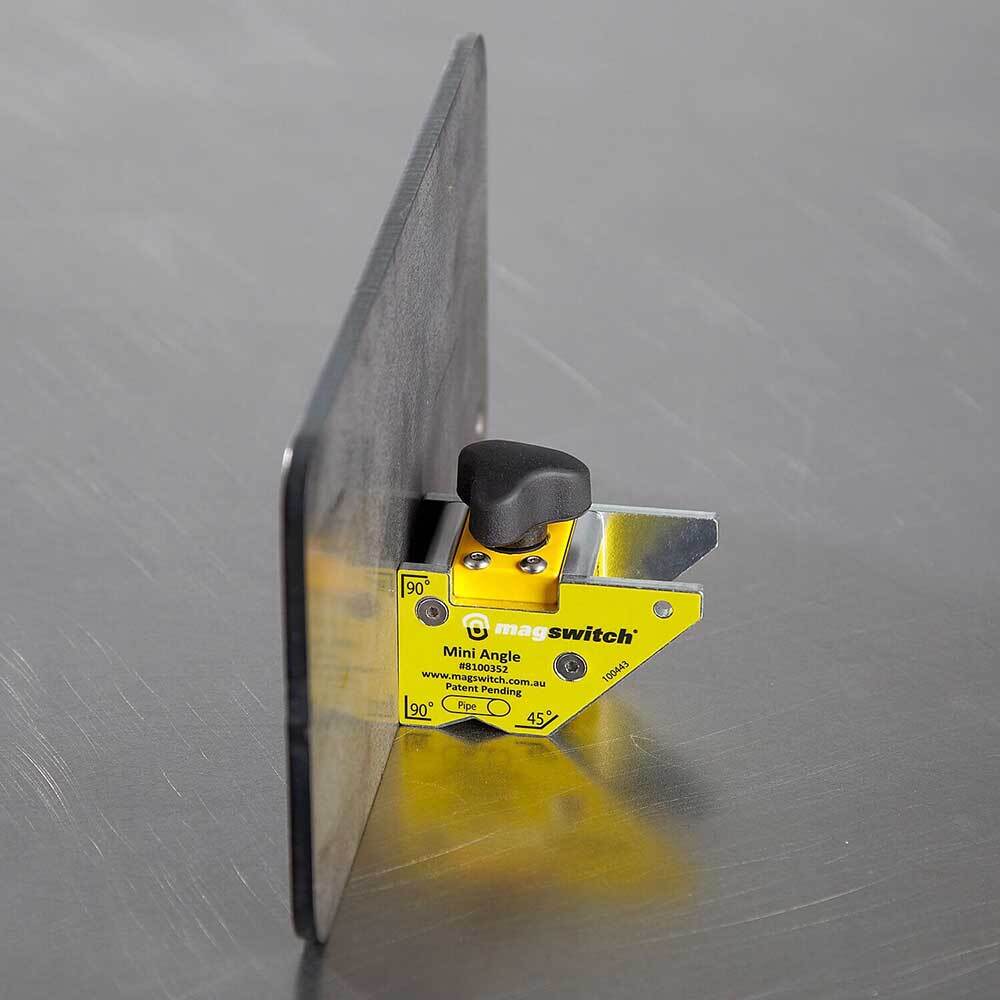

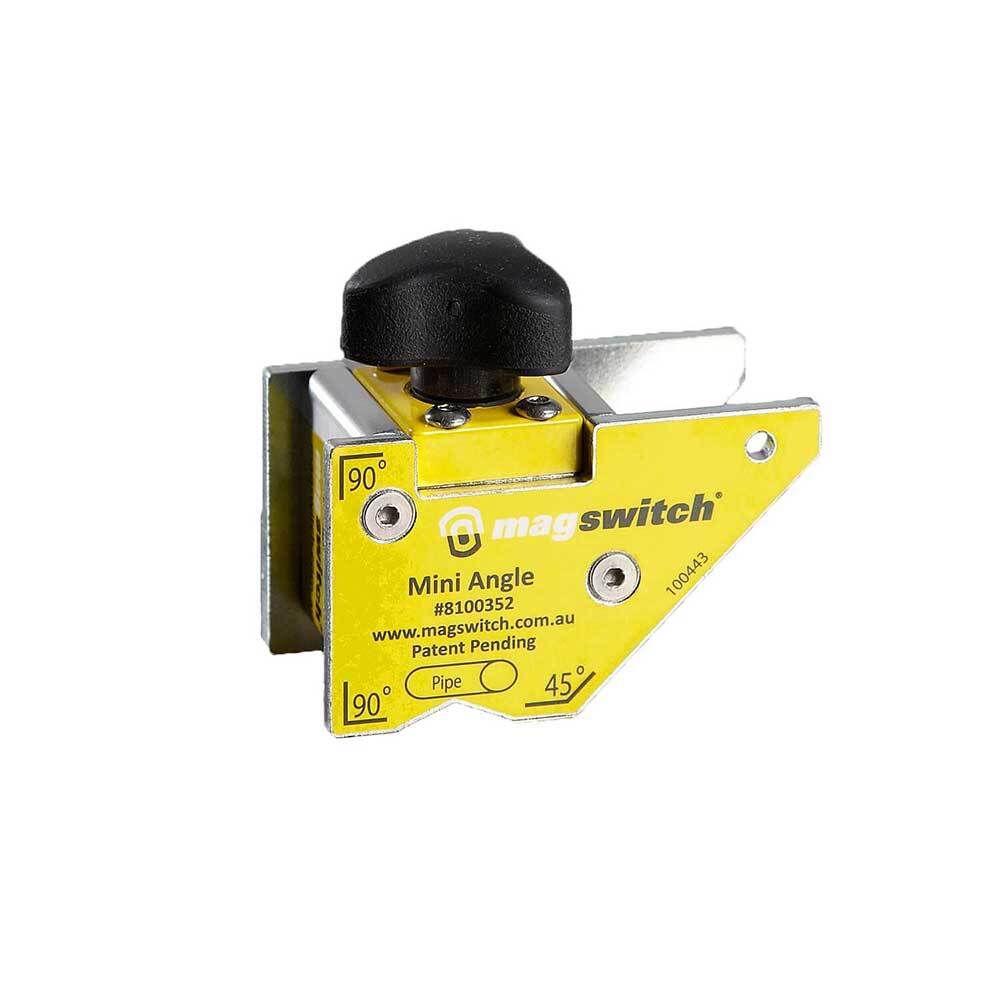

Magswitch Mini Angle

  • The Magswitch line of Mini Multi Angle workholding magnets offer you more angles in one product than any other magnetic angles.
  • If you're tired of Mini angle magnets that claim they shut off, but really don't, then you'll love Magswitch.
  • Magswitch Mini angles are hassle free.
  • They stay clean for years of use.
  • Once you use Magswitch Mini Angles, you will never settle for anything less.


  • Max Breakaway: 90 lbs/40kg
  • Full Saturation Thickness: 11 g / 3.05mm
  • Max Safe Shear: 6 lbs / 2.7kg
  • Net Weight 0.4 lbs/0.2kg
  • Overall Height: 55mm
  • Magnetic Pole Footprint: 59.5 x 32mm


  • AIMS SKU A0160225
  • Brand Magswitch
  • Model Number 8100352
  • Barcode Number 878628001125
  • Type Mini Angle
SKU: A0160225

Magswitch Mini Angle Magnetic Pole Footprint 59.5 x 32mm - 8100352
