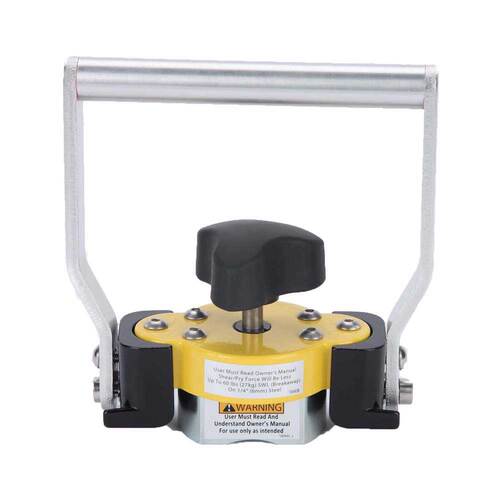

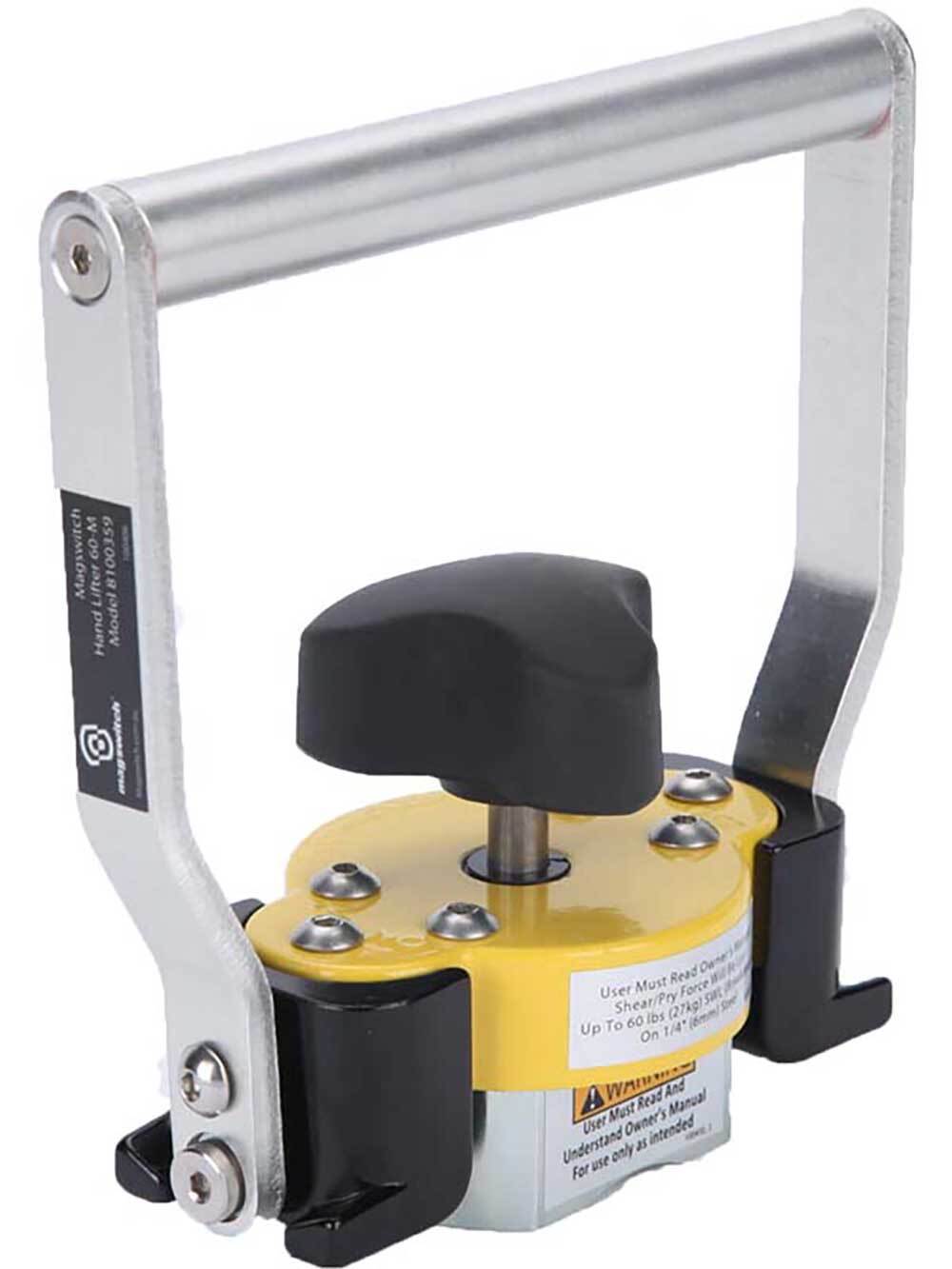

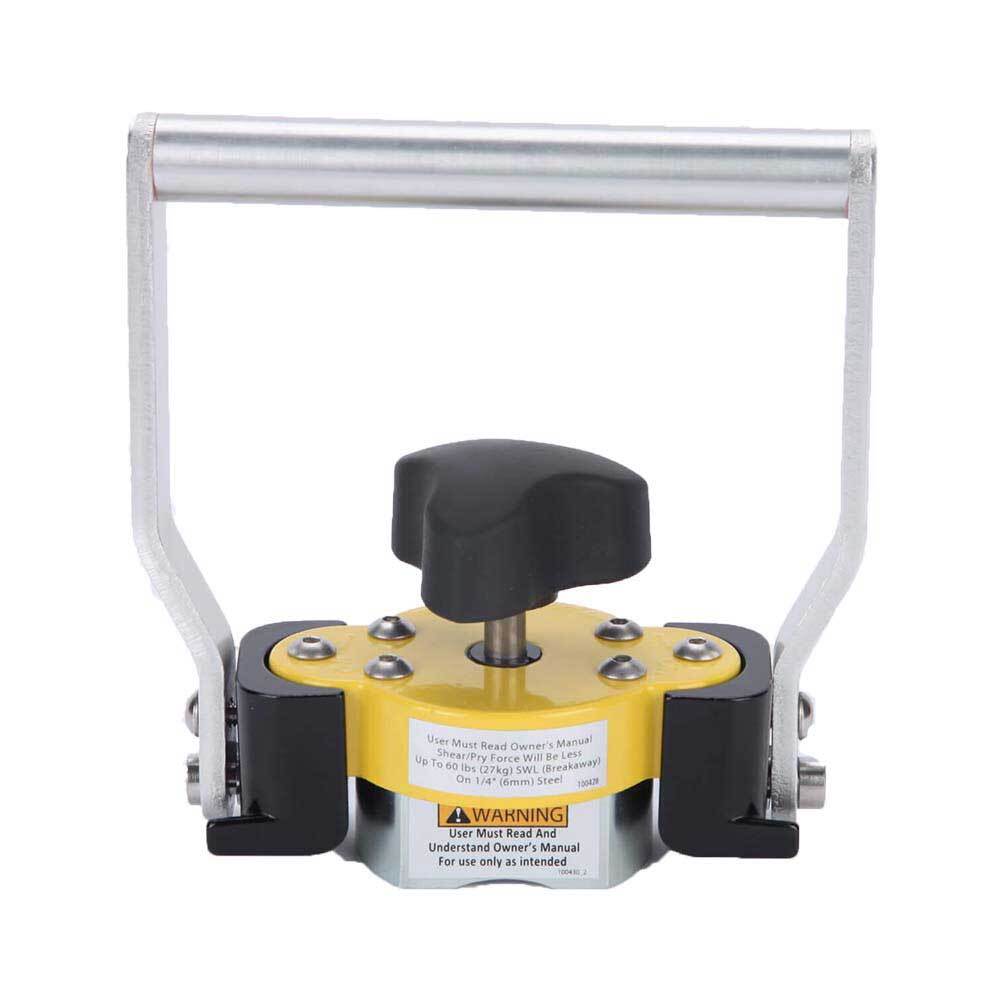

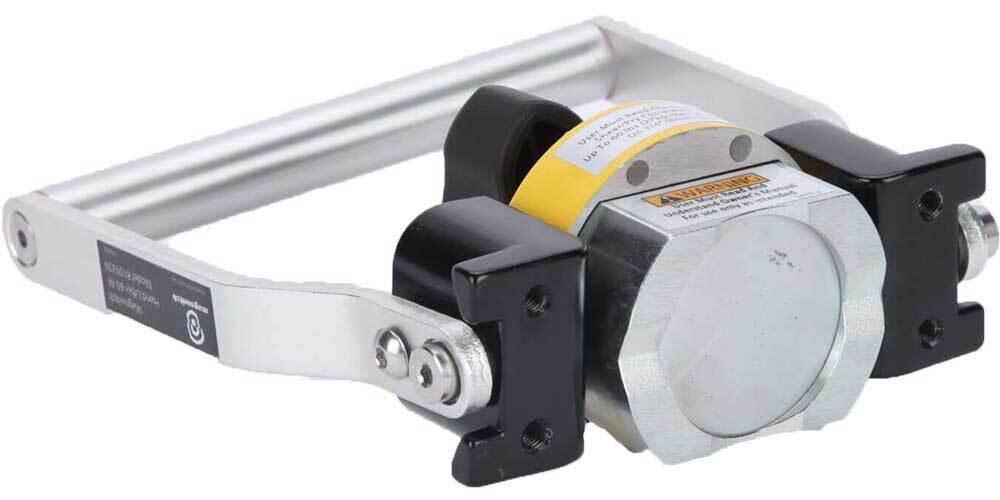

Magswitch Hand Lifter 60-M (Manual)

  • The Magswitch Manual Hand Lifter 60-M adds safety and convenience to every workstation.
  • The Magswitch Manual Hand Lifter 60-M lets you pick, place, slide, and reposition steel without using your fingers.
  • No need to tough hot, sharp, or dirty steel.
  • Ideal for small steel handling, dragging sheet, picking, placing, and pulling parts out of burn table, or handling scrap.

Features:

  • Holds flat and round surfaces of steel
  • Pivot handle with multi settings (for sheet dragging) or locking handle vertical for use as a (hand lifter)
  • Battery strength indicator light
  • No need to manhandle steel or fight magnets in moving steel
  • Magnet turns completely On and Off
  • Magnet stays clean as you can wipe off debris easily
  • Does not require an electrical power source

Specifications

  • Max Breakaway*: 235 lbs/106 kg
  • Full Saturation Thickness: 0.25” / 6 mm 2:1
  • Shear Working Load*: 45 lbs/20 kg
  • Net Weight: 1.3 lbs/0.6 kg
  • Overall Height: 140 mm
  • Magnetic Pole Footprint: 56mm x 41.25mm

Note

* Max Breakaway determined in a laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro-inches. Many factors contribute to the actual breakaway force in each application

Specifications

  • AIMS SKU A0171094
  • Brand Magswitch
  • Model Number 8100359
  • Barcode Number 0878628001170
  • Type Manual Hand Lifter
SKU: A0171094

Magswitch Hand Lifter 60-M (Manual) 8100359

Magswitch Hand Lifter 60-M (Manual)

$295.01
