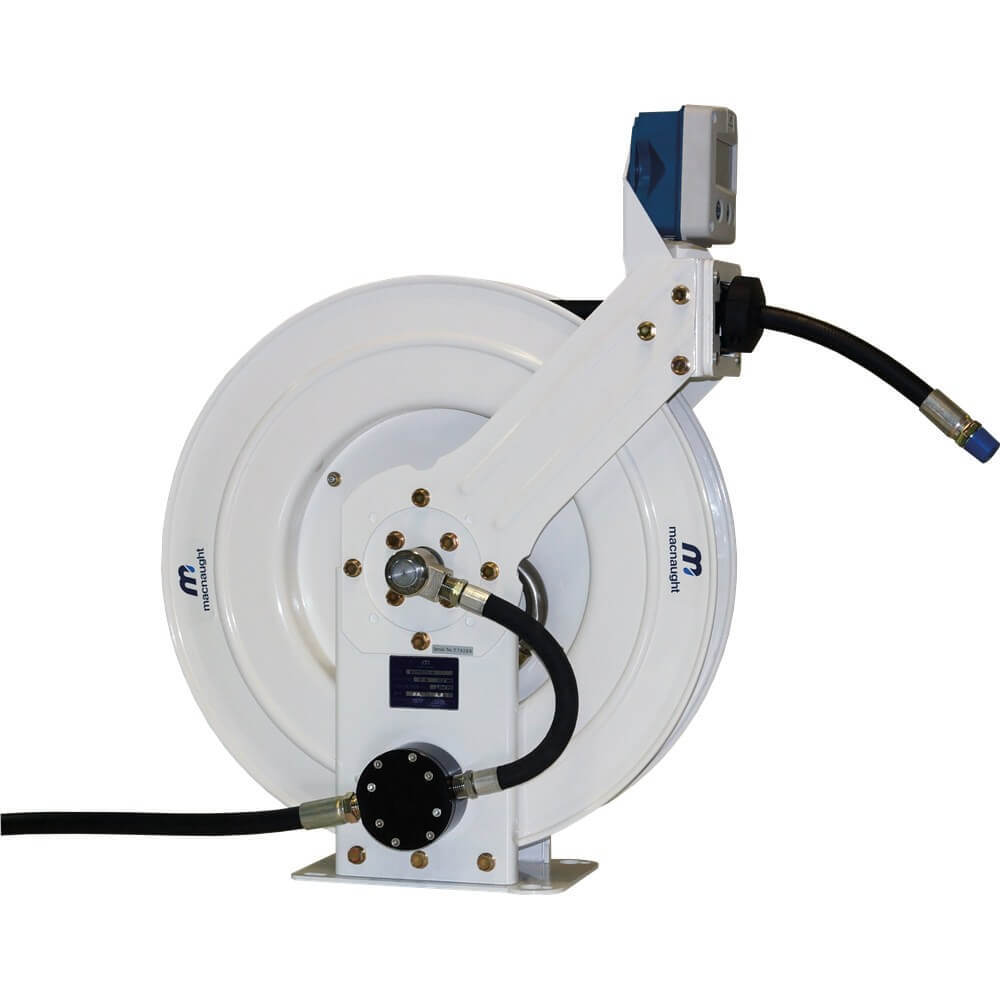

The MAX reel by Macnaught represents the first hose reel developed worldwide with integrated flow meter and flow register.

The marriage of the brand new MX range of oval gear flow meter products featuring the revolutionary M-Lock mounting system and the equally new MAN narrow face hose reel products offers unparalleled simplicity for OEMs, installers and users alike.

With the MAX range of metered hose reels there is no longer any need for separate mounting of meters, intermediate plumbing or vulnerable wiring between meters and registers.

The reel comes completely fitted and wired to be placed in situ ready to function. The only installation required is bolting the unit down and the connection of the inlet fluids and outlet control.

Although equally at home in static workshop situations,the MAX range of metered hose reels has been specifically designed to meet the rigors of the mobile lube service vehicle.

Technical Specifications

• Nominal Size: 1/2"
• Fluid Type: Oil
• Swivel Working Pressure: 1,250psi
• Flow Range: 3-30L/min
• Meter accuracy: 0.5%
• Meter Repeatability: 0.03%
• Meter seal material: Viton
• Meter body material: Aluminium
• Shaft Material: Stainless Steel
• O'ring Material: Viton
• Housing Material: Zinc Coated Brass
• Hose Working Pressure: 1,250psi
• Hose ID: 1/2"
• Hose Length: 15m
• Reel Inlet: 1/2"BSPM
• Includes 1m feeder hose: Yes
• Hose Outlet: 1/2"BSP
