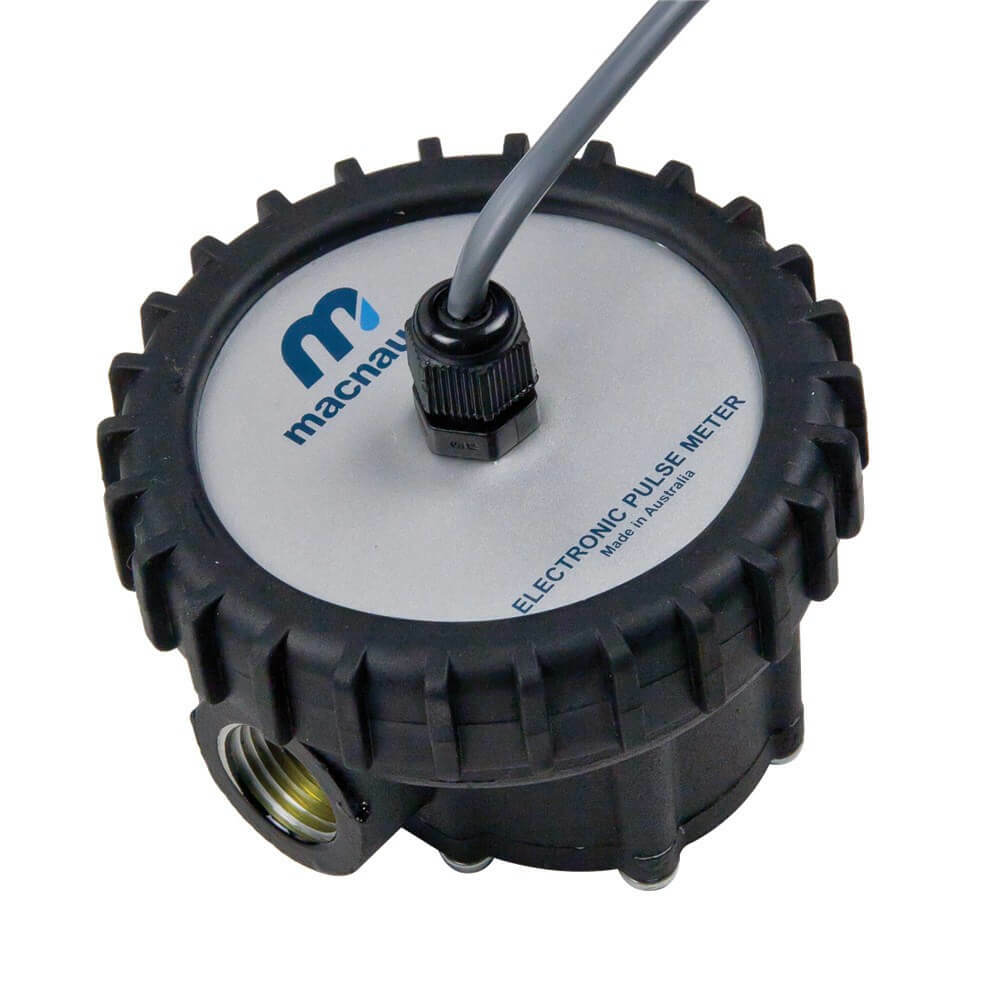

In-line oval gear meter with pulse output only, designed to measure lubricating oils. Flow rate up to 30L/min. Accuracy is around +/- 0.5% of reading with maximum pressure to 6,900 kPa (1,000 psi). Fly Lead is included to allow connection to other devices. Fitted with 1/2" BSP(F) ports.

Technical Specifications

• IM012 meter with pulse output only
• Suitable for oils up to SAE 140, automatic trans ?uid, engine oil, gear oil, hydraulic oil coolant, diesel, kerosene
• Includes 1m ?y lead either reed switch and/or half effect sensor
• Flow range up to 1 – 30LPM
• Accurate reading to +/- 0.5% with maximum pressure to 6,900kPa (1,000psi)
• 1/2” BSP(F) inlet/outlet ports
