Description

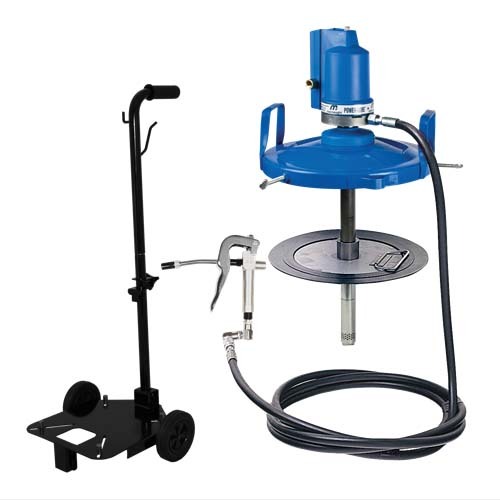

P3 POWERLUBE 20Kg Grease Kit With Trolley P3-01CTROLLEY

  • The POWERLUBE is a premium quality, reliable, 50:1 air-operated pneumatic greasing system that is excellent for high volume grease users that have many applications and require continuous high pressure greasing.
  • This portable grease dispensing system is suitable for 20kg pails and is equipped with a low air consumption motor that doesn't need to be lubricated due to the use of modern polymer materials.
  • Users will save on power and the oily mist and mess associated with air operated equipment is gone.
  • Suitable for underground coal mine applications.
  • Comes with trolley.

Technical Specifications

  • P3001 (50:1) Air-operated pump
  • Maximum pump output pressure: 51,700kPa (7,500psi)
  • Maximum gun output pressure: 68,900kPa (10,000psi)
  • Compatible with 20kg (or similar size) pails
  • 4m x 6mm ID delivery hose
  • Output 460g/min (at pump)
  • Grease viscosity up to NLGI No.2
  • Wetted components - Zinc, hard chrome-plated carbon steel, brass, Nitrile and polyurethane rubber
  • Maximum air pressure: 150psi
  • Minimum air pressure: 60psi
  • Air inlet: 1/4" NPT (F)
  • Pump outlet: 1/4" NPT (F)
  • Minimum compressor size: 0.08m³/min (3cfm)

Features & Benefits

  • Adjustable collar system - Allows adjustment to different height grease pails.
  • Zinc components - For underground mining compatibility
  • Air-operated system with up to 460g/min grease delivery - Fast, efficient greasing.
  • Non-corroding air motor design - No air line lubricator required. Easy and low cost to repair
  • 50:1 ratio air motor - Instant delivery of up to 50 times applied air pressure
  • Quiet air motor design - Meets all industry noise level standards
  • 4m high pressure grease hose - Extra hose length for easier access to difficult applications.
  • B2 Booster Gun - Boosts greasing pressure up to 10,000psi when required. (Helps clear blocked nipples or frozen fittings).
  • 360° ZSB Swivel - Improves maneuverability and offers easier one handed operation
  • KY Supergrip 3 jaw high pressure coupler - Positive no leak connection ensures grease gets to the bearing.
  • Rubber edged follower plate - Wipes container clean to use all of the grease in the container, prevents air pockets and contamination
  • Fully sealed greasing system with in-built grease strainer - Clean grease to the bearing every time
  • Range of push on / quick release greasing accessories available - Increased versatility / flexibility for different applications
  • Fully repairable - Provides a longer service life
  • Comes with TR20G-01 trolley - Ease of moving product to application

Package Includes

  • P3001 pump unit
  • lid & rubber edged follower plate
  • B2 booster gun
  • KY Supergrip coupler
  • ZSB high pressure swivel
  • 4m high pressure grease hose
  • TR20G-01 Trolley

Specifications

  • AIMS SKU A0145956
  • Brand Macnaught
  • Model Number P3-01CTROLLEY
  • Barcode Number 9317147737531
  • Type Grease Kit
SKU: A0145956

Macnaught P3 POWERLUBE 20Kg Grease Kit With Trolley P3-01CTROLLEY

P3 POWERLUBE 20Kg Grease Kit With Trolley P3-01CTROLLEY

$1,413.64
