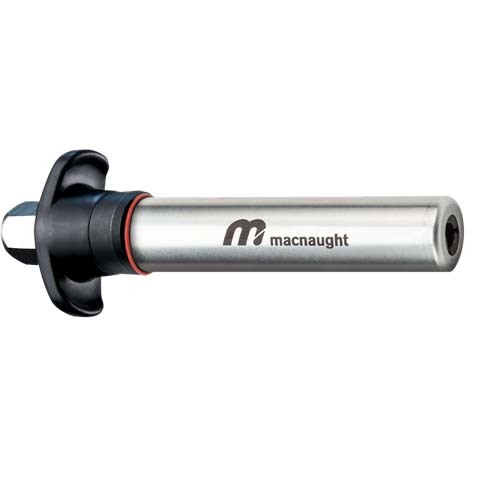

Kyplus XL Grease Coupler

  • Macnaught's patented release mechanism delivers enhanced safety and is both easier and faster to use.
  • The KY+XL (Metric Thread) retains the benefit of the original floating jaw design, providing a strong, leak-free connection while improving safety & usability.
  • Internal pressure relief that reduces the risk of high-pressure grease release
  • Quick & easy release mechanism enabling one-handed operation - Load & Lube.

Technical Specifications

  • Built-in hydraulic pressure relief
  • 10,000psi (68,900 kPa) max pressure
  • Dimensions: 101mm x 15mm

Features & Benefits

  • Patent Approved internal pressure relief mechanism for easy disconnect under pressure and superior safety.
  • Compact design for greater accessibility
  • Original Floating jaw design for leak-free grip.
  • Quick & easy release mechanism enabling one-handed operation - Load & Lube.
  • 2 years warranty.


  • AIMS SKU A0159140
  • Brand Macnaught
  • Model Number KYPLUSXL-01
  • Barcode Number 9317147743174
  • Max Working Pressure (psi) 10, 000
  • Inlet Thread Type 1/8" BSP
  • Max Working Pressure (kPa) 68, 900
  • Type Grease Coupler
SKU: A0159140

Macnaught Kyplus XL Grease Coupler 1/8" BSP

Kyplus XL Grease Coupler 1/8" BSP - KYPLUSXL-01
