Description

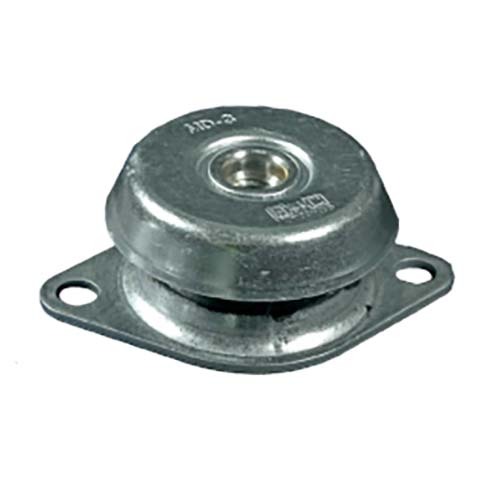

Mackay Flange MD Isolator Interlocked

  • Works as an anti vibration mount and as an engine stabiliser.
  • High-damping elastic compound.

Technical Characteristics

  • Metal hood protects from possible oil splashes.
  • Electrolytic coating that protects the part from corrosion.
  • Interlocking metal component that provides a fail-safe protection for mobile applications.
  • Limits the ascending vertical movement when the mounting is submitted to shocks attraction.

Applications

  • Suitable to insulate engines that produce high-amplitude vibrations.
    • Engines from 1 to 3 cylinders
    • Motor Pumps
    • Gensets
    • Compressors
    • Ventilators.

Specifications

  • AIMS SKU A0166982
  • Brand Mackay
  • Model Number M135210
  • Barcode Number 9313699023467

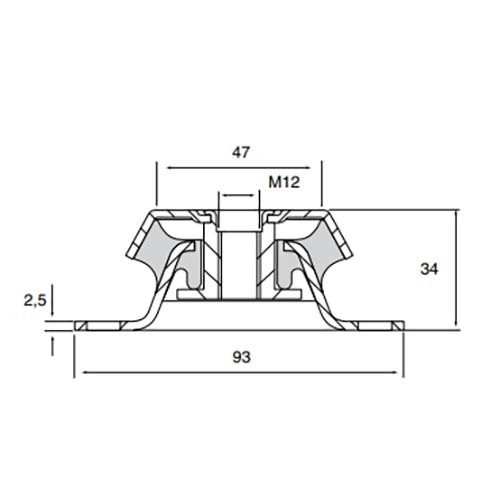

  • Thread Size M12
  • Weight (kg) 0.23

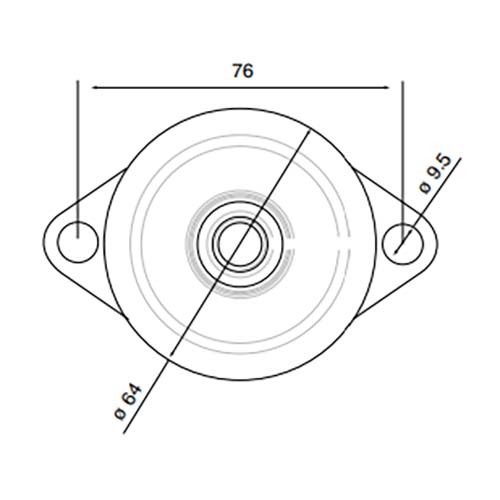

  • Hole Diameter 9.5
  • Length in (mm) 93
  • Height Size (mm) 34
  • Centre To Centre 76
  • Plate Thickness (mm) 2.5
  • Load (kg) 130
  • Deflection (mm) 3.5
  • Head Button Diameter (mm) 64
  • Head Top Diameter (mm) 47
  • Type Flange Isolator
  • Material Metal
SKU: A0166982

Mackay M135210 MD Flange Isolator Interlocked M12 93 x 34mm Load 130kg

Mackay MD Flange Isolator Interlocked

$131.33
