Description

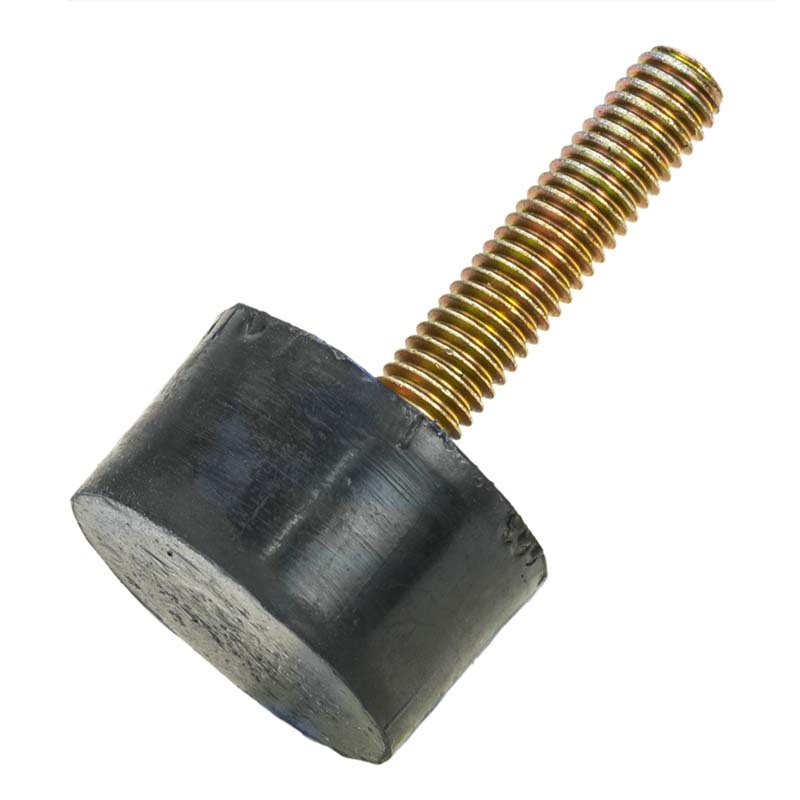

Mackay Bonded Buffer

  • For inexpensive and effective control of machinery vibration, shock and acoustic noise. These buffers are equally adaptable when controlling impact or when used as machine feet; they also may be used as snubbing rubbers when excessive shock loads are encountered in resiliently mounted equipment.

Features

  • Designed specifically to control impact and torque reaction loads.
  • Built to limit movement and stabilize equipment at critical frequencies.
  • A rugged rubber bonded to metal unit ensures simplicity of application and ease of installation.

Specifications

  • Dimensions A: 22 mm
  • Dimensions B: 35 mm
  • Dimensions C: 3/8 Whitworth
  • Dimensions D: 38 mm
  • Static Load: 64 kg
  • Static Deflection: 3 mm
  • Buffing Load: 180 kg
  • Buffing Deflection: 8 mm

Specifications

  • AIMS SKU A0170785
  • Brand Mackay
  • Model Number M170
  • Barcode Number 9313699028578
  • Type Cylindrical Bonded Buffer
  • Material Rubber/Metal
SKU: A0170785

Mackay M170 Cylindrical Bonded Buffer 35mm Buffing Load 180kg

Mackay Bonded Buffer
