Description

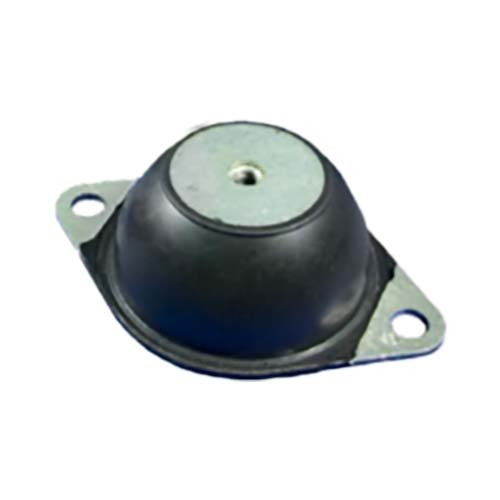

Mackay 2-Hole Hy-Deflection Dome Mount

These mounts offer great elasticity in the radial and axial direction. Their internal design make them ideal mounts for machines that produce vibrations in 3 directions. The design of the mounts facilitates easy installation. The top metal part has an inside thread for securing to the machine, with two passing screw holes for the flange for securing to the bed plate.

  • The metal parts are electrolytic coated to protect against corrosion.
  • The rubber hardness is engraved on the metal parts

Applications:

  • Compressors
  • Air-conditioners
  • Ventilators
  • Vibrating Tables

Specifications

  • AIMS SKU A0166412
  • Brand Mackay
  • Model Number M175001
  • Barcode Number 9313699024938

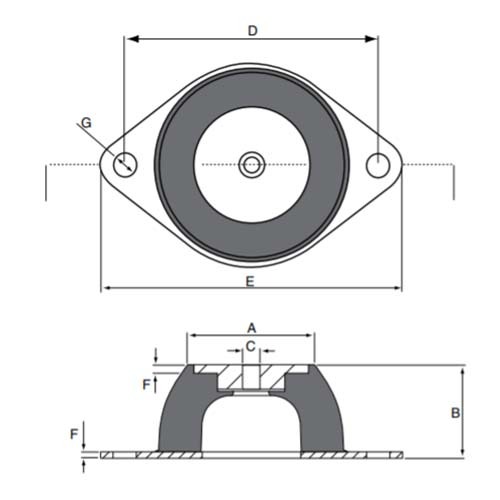

  • Thread Size M10
  • Weight (kg) 0.17
  • Hole Diameter 10 mm
  • Head Diameter (mm) 48
  • Length in (mm) 114
  • Height Size (mm) 35 mm
  • Centre To Centre 92 mm
  • Plate Thickness (mm) 2
  • Load (kg) 40
  • Deflection (mm) 4
SKU: A0166412

Mackay M175001 2-Hole Hy-Deflection Dome Mount 40kg Load

Mackay 2-Hole Hy-Deflection Dome Mount

$107.00
