Specifications

AIMS SKU A0134799
Length (mm) 750
Pitch (mm) 3.5
Recommended Tightening Torque Hdg (nm) 344.6
Tensile Strength (kn) 519
Minimum Proof Load (kn) 126.2
Stress Area (mm²) 561
Size M30
Shear Strength (kn) 126.2
Core Area (mm) 519
Minimum Stress Under Proof Load (mpa Or N/mm²) 225
Proof Strength (kn) 224.4
Minimum Ultimate Tensile Load (kn) 224.4
Minimum Tensile Stress (mpa Or N/mm²) 400

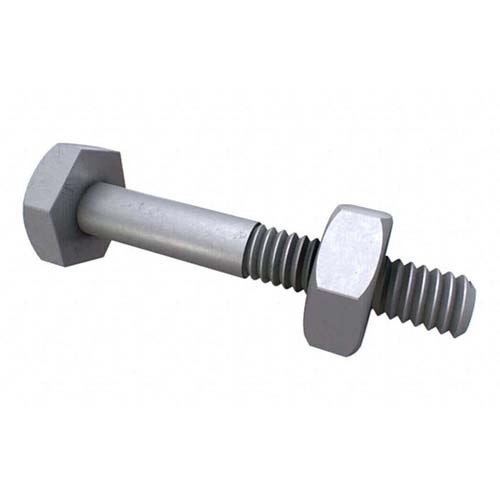

• Type Hex Bolt and Nut
• System of Measurement Metric
• Material Low Tensile Steel
• Finish Hot Dip Galvanised
• Class 4.6
