Specifications
- AIMS SKU A0134046
- Length (mm) 110
- Pitch (mm) 2
- Minimum Stress Under Proof Load (mpa Or N/mm²) 830
- Stress Area (mm²) 157
- Size M16
- Minimum Ultimate Tensile Load (kn) 163.3
- Minimum Tensile Stress (mpa Or N/mm²) 1040
- Minimum Proof Load (kn) 130.3
- Thread (mm) 38

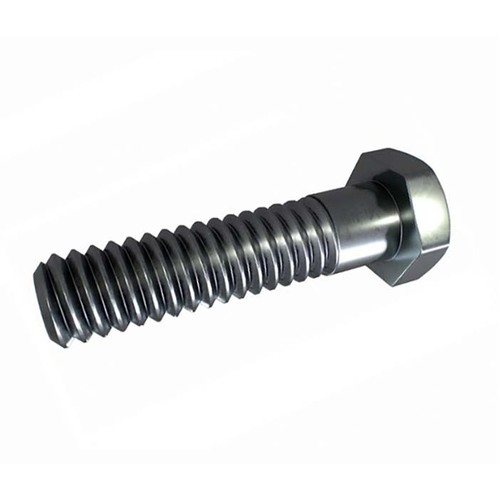

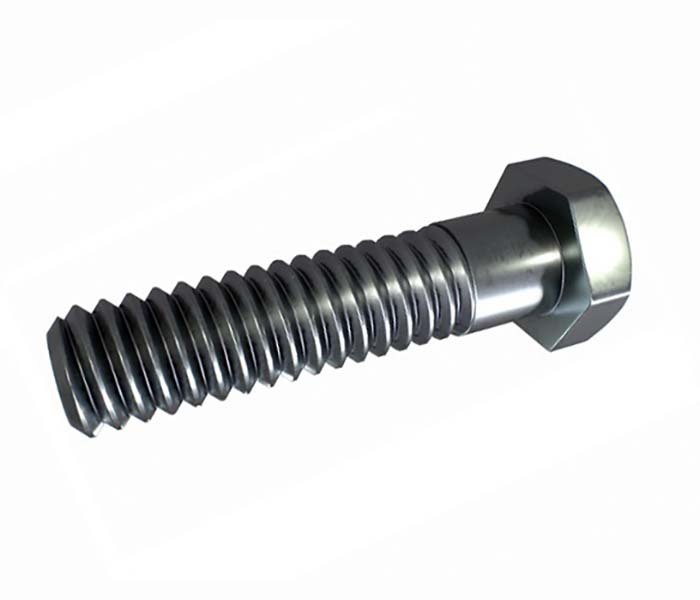

- Type Metric Hex Bolt
- System of Measurement Metric
- Material High Tensile Steel
- Finish Plain
- Class 10.9
