M12 x 140 mm Stud Anchor, 316 Stainless Steel - STAA4M12X140

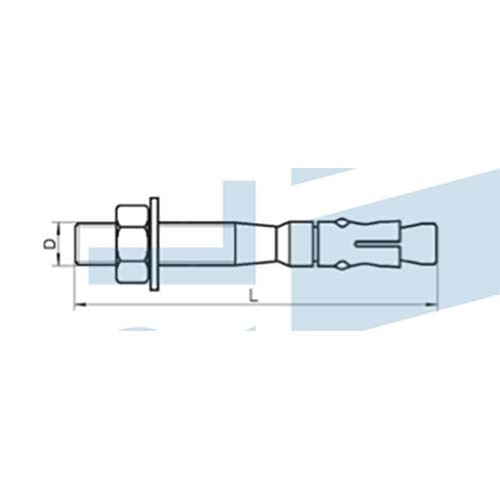

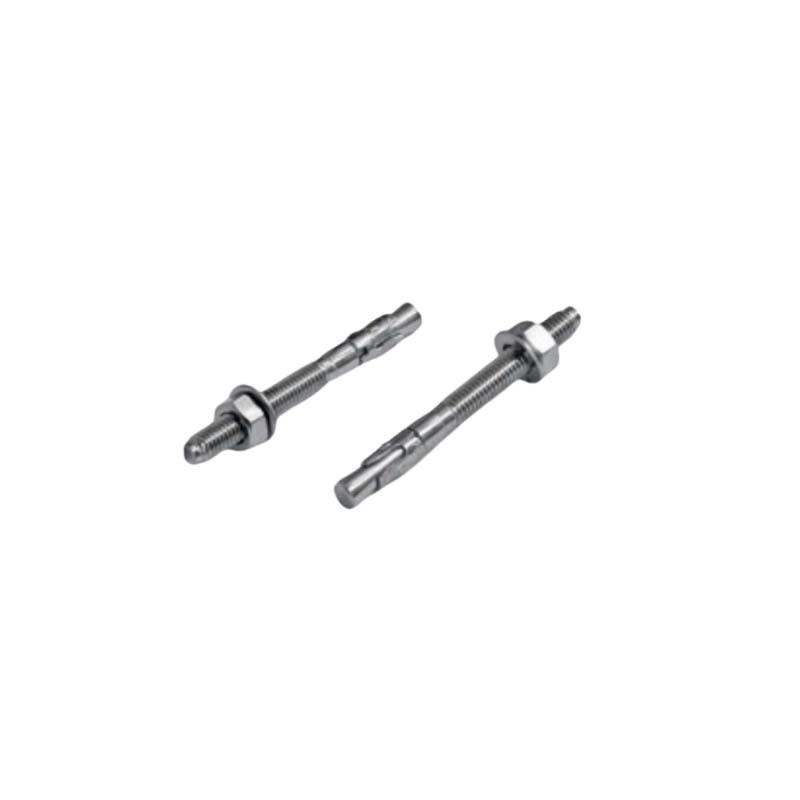

Made in 316 (A4) stainless steel, the Stud Anchor is a through-bolt style expansion anchor with a threaded stud, a nut and washer, and an expansion clip. It is set in drilled concrete by tightening the nut.

Made from 316 (A4) stainless steel, the grade normally specified for chloride-exposed work such as coastal installations, swimming pools, marine fittings and food-processing plant. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.

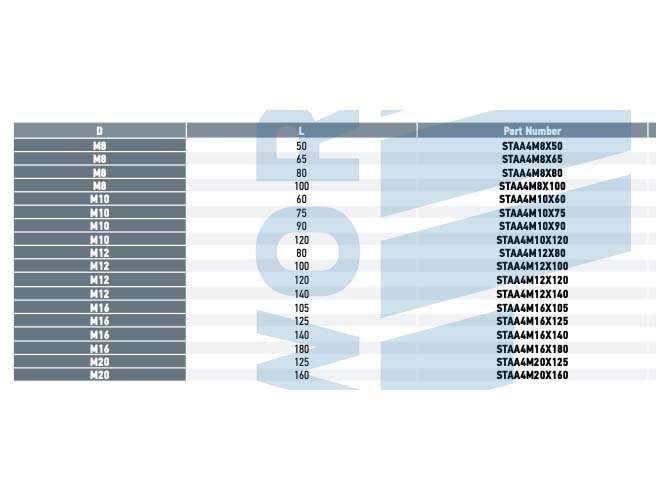

This listing has 18 variants covering sizes M8 to M20 and lengths 50 mm to 180 mm. Pack quantities depend on size: packs of 10 to 50.

Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. Use stainless washers and nuts with stainless fasteners, so the whole joint is made of the same material.

Where this product is used

• Handrails and balustrades into concrete
• Machinery and equipment bases
• Larger sizes for frames, plant and structural fixings
• Chemical and washdown areas
• Boat, jetty and waterfront structures
• Fixing steel plates, columns and brackets to concrete

Features

• Threaded stud with nut and washer
• Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment
• Choice of 18 sizes, M8 to M20
• Supplied in packs of 10 to 50
• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
• Expansion clip grips in concrete

Key specifications

Selecting the right option

Drill to the hole diameter and depth in the supplier data and clear the dust. Loads are not stated here, so check the supplier load data for your base material.
