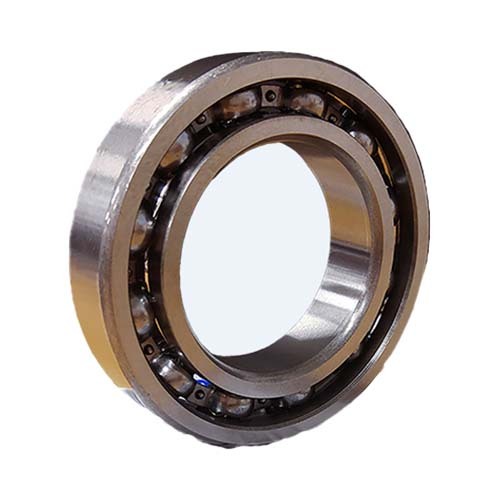

Deep Groove Ball Bearing Open Type - 16000 Series
- Deep Groove Ball Bearing Open Type.
- 16000 Series
About Deep Groove Ball Bearing
- Deep groove ball bearings are available in a variety of sizes and are the most popular of all rolling bearings.
- This type of bearing supports radial load and a certain degree of axial load in both directions simultaneously.
- Simplifies the sealing structure of applications.
- Greasing is not necessary because bearings are pre-lubricated.
With locating snap ring
- Bearings with a locating snap ring can be fitted to the housing easily, as the locating snap ring facilitates axial positioning.
Extra-small ball bearings and miniature ball bearings
- The open type is widely used. Also available are the shielded/sealed type and the flanged type; the latter is easily positioned in the axial direction.
Features Deep Groove Radial Bearing
- Type: Open Type, Shielded/ sealed type, With locating snap ring, Maximum type, and Double-row.
- The most popular rolling bearing type used in a wide variety of industries and applications.
- The inner and outer rings have deep uninterrupted grooves.
- They can support radial loading and a certain degree of axial loading in either direction
- High-speed capability.
- The Maximum style not to be used when axial loading or high speed is involved.
- Sealed and shielded types are filled with an appropriate volume of grease.
- Bearings with a locating snap ring aid axial positioning and eliminate the need for housing shoulder.
- Cages can be a pressed steel, machined copper alloy, molded polyamide, synthetic resin, pressed stainless sheet steel
- Automotive: Transmissions, electrical devices, truck, and trailer equipment.
- Off-Highway Vehicles: Construction equipment, agricultural equipment, railroad rolling equipment.
- Electrical Equipment: Standard motors, electric appliances for domestic use
- Other: Measuring instruments, medical instruments, and miscellaneous industrial equipment.
- AIMS SKU A0153348
- Brand Koyo
- Model Number 16018/KOYO

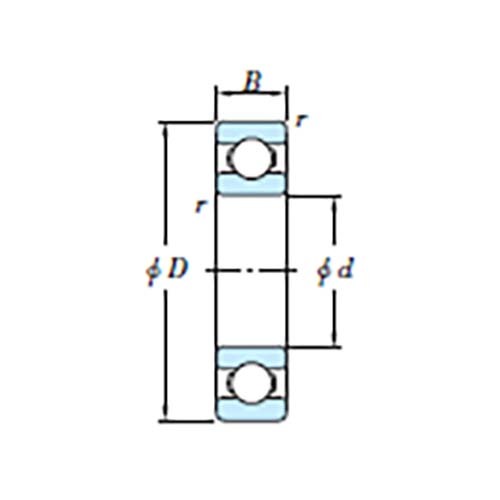

- Bore Diameter x Outer Diameter x Width (mm) 90 x 140 x 16
- Boundary Dimension (mm) r min. 1

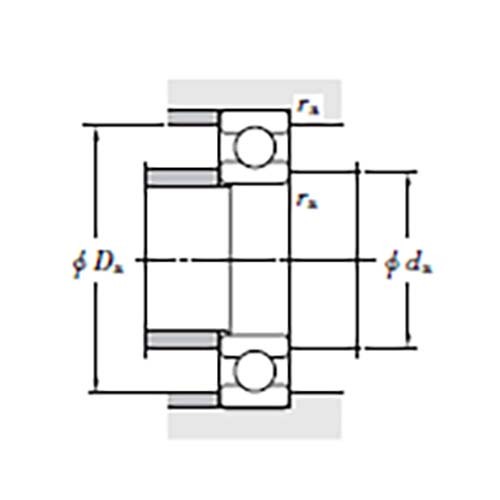

- Mounting Dimension (mm) Da Min. 95
- Basic Load Rating (kN) C0r 37
- Outside Diameter D (mm) 140
- Limiting Speed (min-1) Oil lub. 5600
- Mounting Dimension (mm) Ra Max. 1
- Factor F 0 16.3
- Basic Load Rating (kN) Cr 49.9
- Bore Diameter d (mm) 90
- Limiting Speed (min-1) Grease oil lub. 4700
- Mounting Dimension (mm) Da Max. 135
- Fatigue Load Limit (kN) Cu 1.85
- Bearing Width B (mm) 16
- Type Deep-Groove Ball Bearings
- Series 16000 Series
