Description

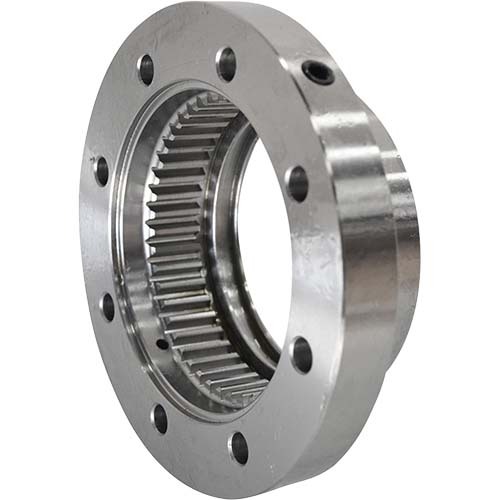

Gear Coupling G20 - Flanged Sleeve

  • Type G20.
  • Flange Sleeve.

About Gear Coupling

  • Gear coupling compensates angular misalignment, parallel misalignment, and end float.
  • The fully crowned hub teeth provide minimum loading stress and ensure longer life.
  • Gear Coupling follows the international standards of AGMA and JIS, which easily allows replacing with major industrial products.

About Gear Coupling Characteristic

  • High torque, small size, long life, and very little loss of transmitting power.
  • The concave-convex flange design allows easy assembly and the high-quality gasket prevent leakage of lubricant.
  • Gear Coupling permits parallel, angular misalignments and ends floating by crown gear teeth.

Specifications

  • AIMS SKU A0152813
  • Brand KCP
  • Model Number 1025G20-FS
  • Size 1025
  • Cap 0.188
  • Min Bore Da 1.25
  • Torque Rating (ib-in) 66150
  • Hp Per 100 rpm 105
  • a (inch) 8.38
  • Lube Wf Ib 0.5
  • Max Bore Da 3625
  • E (inch) 6.1
  • B (inch) 6.25
  • C (inch) 3.03
  • Cplg Wt(ib) G20 65
  • Allow Speed Rpm 5000
  • D (inch) 5.14
  • J 2.82
  • Type Flanged Sleeve Gear Coupling
SKU: A0152813 On Sale

KCP Gear Coupling 1025 G20 - Flanged Sleeve

Gear Coupling G20 - Flanged Sleeve 1025G20-FS

$258.00
$516.00
