Taper Grid Coupling Grid Element

  • Grid assembly for taper grid coupling.
  • Grid in light load, the grid bears near the outer edges of the hub teeth and the long span between the points of contact remains flexible under load variations.
  • Grid in normal load, as the load increases, the distance between the contact points on the hub teeth is shortened, but a free span still remains flexible for shock loads.
  • Grid in shock load, the coupling is flexible within its rated power capactity. Under extreme overloads, the grid bears and transmits full load on the hub teeth directly.

*** Grid Only ***

About KCP Taper Grid Coupling

  • Taper Grid Couplings are recognizable due to their unique steel flexible grid running through the tapered hubs.
  • The benefits of the Grid Coupling are reduced vibration and shock loads.
  • The compact size of shaft-to-shaft couplings.
  • Handle torque capacity due to high strength hardened alloy steel construction
  • Deflect torsionally for normal shock or vibratory loads.
  • Capacity for misalignment without producing the detrimental side loads.
  • Designed with a trapezoidal cross-section and tempered for spring hardness.
  • Increase in strength rating and provide reserve strength for a longer part life.
  • Easy to fit the trapezoidal grids into the slots of the hub and short time of installation.
  • Free to rock, pivot, and float.

Specifications

  • AIMS SKU A0148860
  • Brand KCP
  • Model Number 1060H-G
  • Gap Normal (mm) 3
  • Dimension D (mm) 76.2
  • Bore Diameter Max (mm) 55
  • Max. Speed (rpm) 4350
  • Size 1060H
  • Cplg Wt (kg) 7.3
  • Gap Min (mm) 1.5
  • Dimension C (mm) 63.5
  • Basic Torque (kg-cm) 6337
  • Dimension B (mm) 130
  • Gap Max (mm) 4.5
  • Dimension E (mm) 92
  • Bore Diameter Min (mm) 19
  • Hp Per 100 rpm 8.85
  • Dimension A (mm) 150.5
  • Lube Wt (kg) 0.09
  • Type Grid Taper Coupling
SKU: A0148860 On Sale

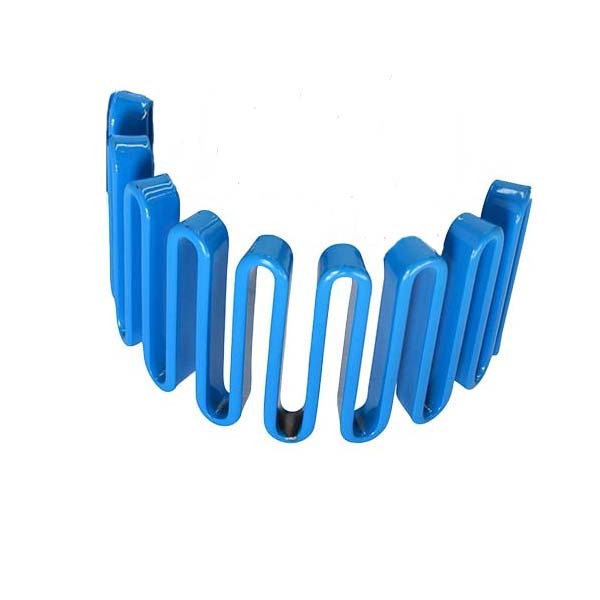

KCP 1060H-G Taper Grid Coupling Grid Element - 1 Piece
