Description

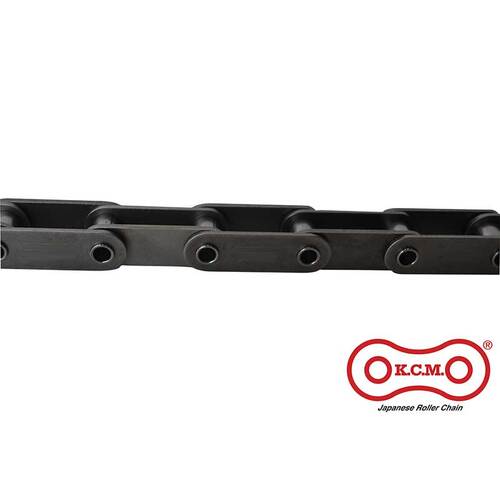

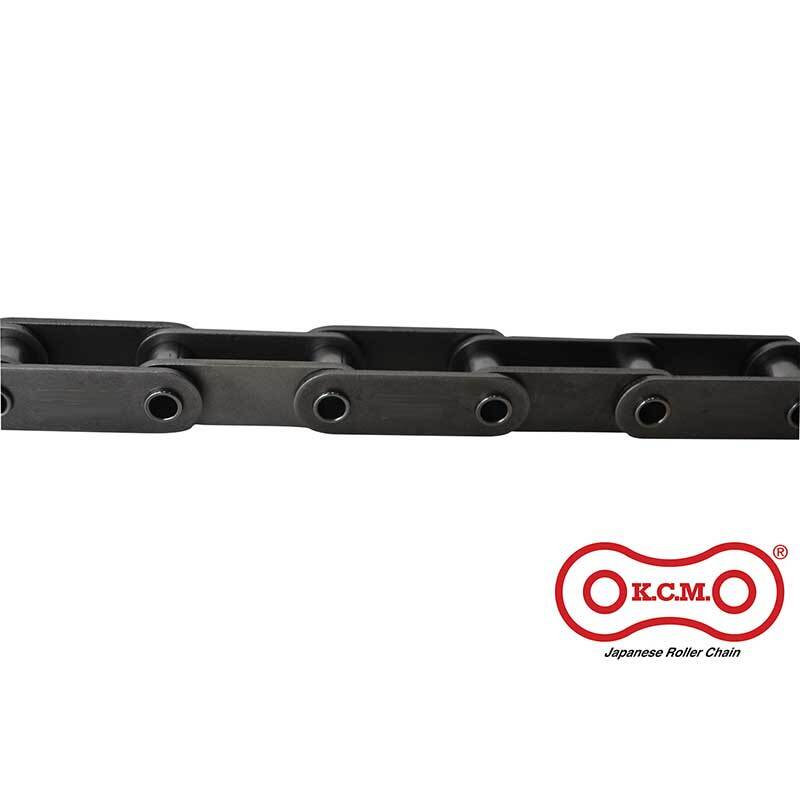

KCM Roller Chain Hollow Pin Double Pitch

This chain uses hollow pins to which various attachments can easily be fixed.

  • Available in different chain numbers

About KCM

KCM is an exclusive roller chain manufacturer certified by ISO 9001 (International Quality Management and Assurance Standard). Using state-of-the-art manufacturing and quality assurance technology, KCM strives to maintain its world-recognized quality products. KCM roller drives are used in a broad range of industries to transmit and drive various equipment.

Each box contains 10 Foot of Chain. Additional links may be purchased separately if required.

AIMS Industrial Supplies is an authorised roller chain supplier in Australia.
If you need assistance in selecting the right chain, please refer to the dimensions or contact our office.

Specifications

  • AIMS SKU A0067011
  • Brand KCM
  • Model Number C2040HP
  • Chain Number C2040HP
  • Average Tensile Strength kN (kgf) 13.2 (1,350)
  • Pin Outside Diameter (d) (mm) 5.68
  • Link Plate Thickness T (mm) 1.5
  • Pin B (mm) 9.4
  • Chain Length 10 ft
  • Maximum Allowable Load kN (kgf) 1.77 (180)
  • Links of 1 unit (mm) 120
  • Pin Inside Diameter d。(min) (mm) 4
  • Roller Type S
  • Pin (A+B) L2 (mm) 17.5
  • Pin A (mm) 8.1
  • Roller Chain Type Hollow Pin
  • Features Double Pitch
  • Approx. Weight (kg/m) 0.46
  • Bush Diameter D (mm) 7.95
  • Link Plate Height H (mm) 11.7
  • Pin (A+A) L1 (mm) 16.2
  • Width Between Inner Plates W (mm) 7.95
  • Chain Pitch 1 in
  • Type Roller Chain
SKU: A0067011

KCM C2040HP Roller Chain Hollow Pin 1" Double Pitch - Box of 10 Foot

KCM Hollow Pin Double Pitch

$171.83
