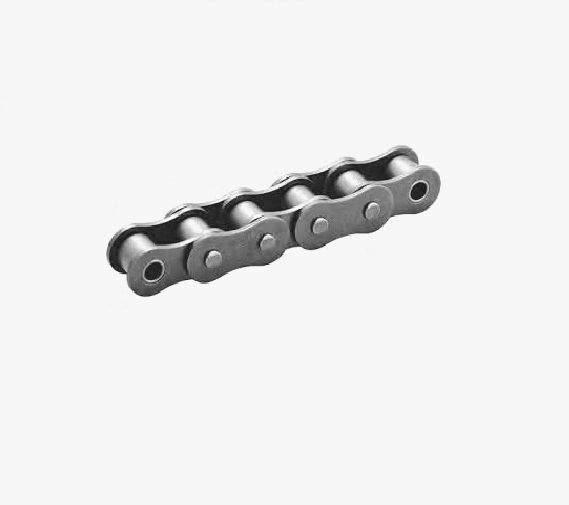

KCM 40-1 ASA Roller Chain Simplex 1/2" Pitch - Box of 10 Foot

Description

KCM is an exclusive roller chain manufacturer certified by ISO 9001 (International Quality Management and Assurance Standard). Using state of the art manufacturing and quality assurance technology, KCM strives to maintain its world recognized quality products. KCM roller drive chains are used in a broad range of industries for transmission and driving of various equipment.

Features

Wide range of roller chain sizes available to suit various applications
Choose from 3 different strands: Simplex, Duplex or Triplex
Available in British or American standard

Each box contains 10 Foot of Chain and 1 Connecting Link. Additional links may be purchased separately if required.

AIMS Industrial Supplies is an authorised roller chain supplier in Australia. If you need assistance in selecting the right chain, please refer to the dimensions or contact our office.

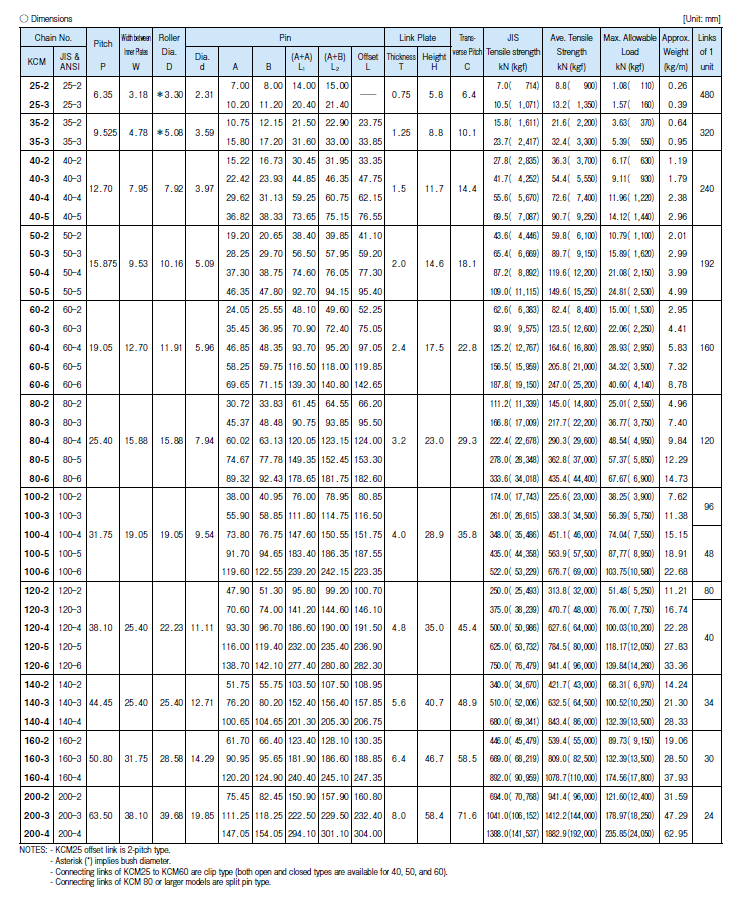

Specifications

AIMS SKU A0067125

Brand KCM

Model Number 40-1/KCM

Chain Number 40

Pitch (inch) 1/2

Number of Chain Links 240

Chain Strands 1 Simplex

Approximate Weight 0.61 kg/m

Maximum Allowable Load kN (kgf) 2.26 (230 )

Average Tensile Strength, kN (kgf) 18.1 (1,850 )

JIS Tensile Strength, kN (kgf) 13.9 (1417)

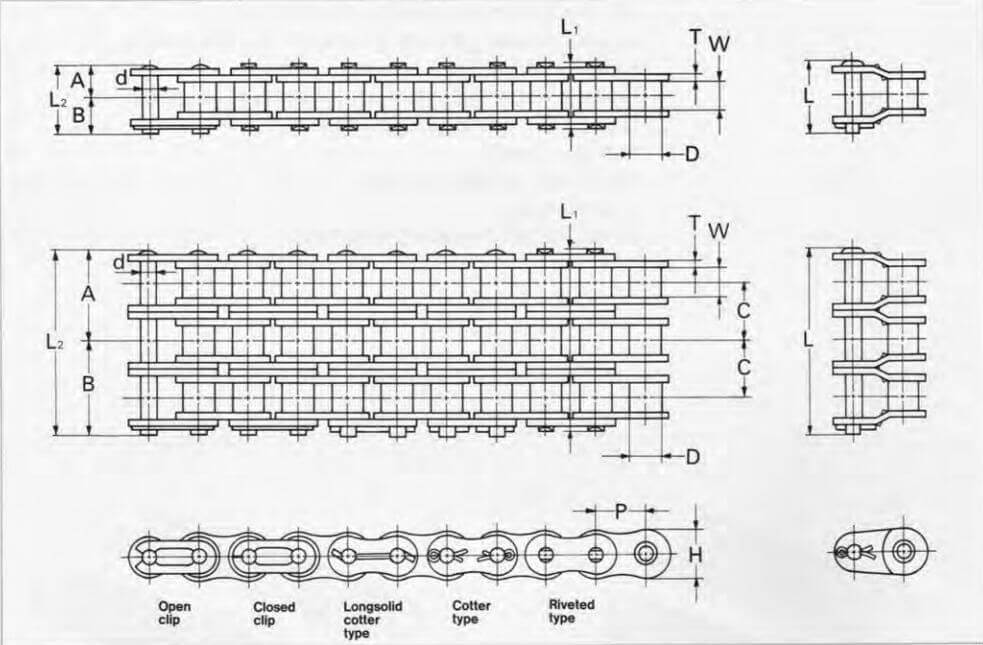

Link Plate Height (H) 11.7 mm

Link Plate Thickness (T) 1.5 mm

Pin Offset L 18.95 mm

Pin (A+B) L 17.55 mm

Pin (A + A) L 16.05 mm

Pin B 9.53 mm

Pin A 8.02 mm

Pin Diameter (D) 3.97 mm

Roller Diameter (D) 7.92 mm

Width Between Inner Plates (W) 7.95 mm

Pitch (P) 12.7 mm

System of Measurement American (ASA)
Material Steel
Strand Simplex

Calculate Shipping

Resources

KCM Roller Chains Catalogue
