JK 5206 Angular Contact Ball Bearing Open 30 x 62 x 23.8mm - IJK

Description

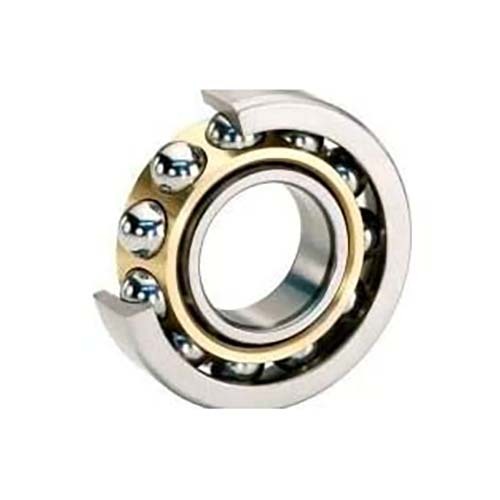

Angular Contact Ball Bearing Open

Open type.

All About Angular Contact Ball Bearings

Angular contact ball bearing supporting combined radial and bidirectional thrust loads ball contact angle of 20 degrees relative to the inner and outer raceways increases thrust load capacity steel shields on both sides of the bearing to keep lubricant in and contaminants out.
Pressed steel cage evenly spaces balls for reduced friction, vibration, and noise Normal axial internal clearance for applications where thermal expansion is not a factor.

Specifications

AIMS SKU A0156803

Brand IJK

Model Number 5206/IJK

Bore Diameter (mm) 30

Width (mm) 23.8

Outer Diameter (mm) 62

Chamfer R(min) 1

Balls Number 18

Ball Size 9.5

Load Rating Dynamic C(kgf)/(ibf) 3000

Load Rating Static C(kgf)/(ibf) 2150

Type Self Aligning Bearings
Series 5200
