Description

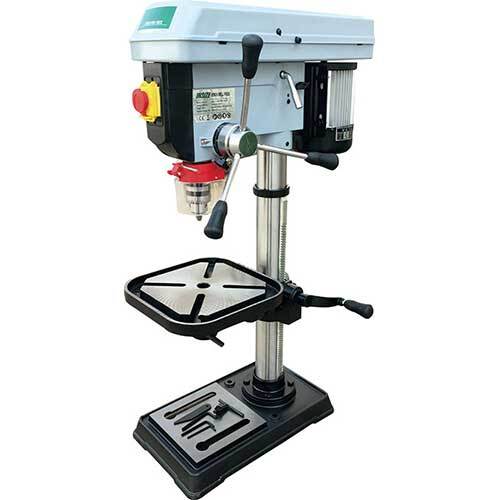

Bench Drill Press

Heavy duty quality casting, the main body 1 piece construction.
Main column tube thick-walled giving greater rigidity.
Efficient and smooth V belt drive system with adjustable spindle speeds.
Micro safety switch fitted to pulley guard to ensure “non-start “ when changing spindle speeds.
Belt tensioning lever quick action type.
Worktable slotted in the base to allow rigid mounting of work.
Left and right tilt work table, rotation to 45% with a gauge.
Heavy-duty rack and pinion work table height adjustment with locking lever.
Industrial duty 3 piece drilling lever with depth stop.
Safety drilling chuck guard, adjustable with the flip-up screen.
No Voltage Release Safety Switch.
Quality copper wound 240-volt fan-cooled, aluminium finned electric motor.
16 Spindle Speed: 220, 310, 350, 470, 480, 500, 640, 680, 700, 750, 1270, 1370, 1520, 1910, 2040 & 2840 RPM.

Includes

Specifications

AIMS SKU A0124242

Brand Insize

Model Number IN4120

Barcode Number 9335319026283

Type Bench Drill Press

Spindle Speed Range (rpm) 220-2840

Quill Diameter (mm) 47

Drilling Capacity Max (mm) 20

Motor (hp) 1

Chuck Guard Yes

Emergency Stop

Working Table (mm) 290 x 290

Spindle Speed Steps 16

Spindle Taper 2MT

Chuck Size (mm) 3-16mm /B16

Motor (w) 750

Micro Switch On Pulley Guard Yes

Column Diameter (mm) 72

Swing (mm) 360

Collar Diameter (mm) 55

Spindle Travel (mm) 82

Motor (v-amps) 240v-3.6Amp

Overall Height (mm) 990

Nvr Safety Switch Yes

Base Plate (mm) 460 x 280
