Description

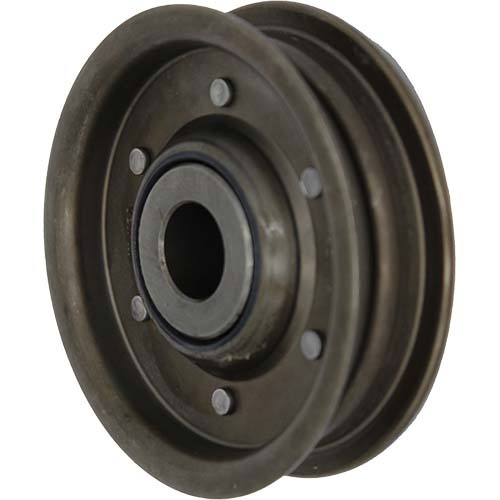

Idler Pulley Flat Flanged

  • Provide long life under demanding conditions.
  • They are installed with standard 1/2" or 5/8" bolts.
  • Applications include agricultural, power transmission equipment, and conveyor systems.
  • Belt idlers are generally used as tensioners or direction changes.
  • Permanently lubricated and sealed against grime and dirt. Fit into existing designs with little or no engineering changes, or are readily adapted to new designs.

About Aetna Idler

  • They are used in heavy-duty applications where loads and speeds are greater than required for unground bearings usually over 2000 RPM.
  • Many are used on modern combines.
  • Straight belt idlers for flat belts are available with double row bearings and bushed to clear 1/2", 5/8", and 3/4" bolts.
  • Aetna belt idlers are generally used as tensioners or direction changes.
  • Permanently lubricated and sealed against grime and dirt.
  • Fit into the existing design with little or no engineering changes or are readily adapted to new designs.

About Idler Advantage

  • Over-size, factory-packed lubricant chamber assures maximum life and operating efficiency without troublesome relubrication.
  • Case hardened to resist belt abrasion.
  • Available for most common belt sizes.
  • Bearing races are hardened to resist wear, outers and inners are accurately formed for smooth running.
  • Aetna's self-contouring, free-running, self-wiping seal provides positive contact under all conditions of misalignment.
  • Full ball complement for high durability.

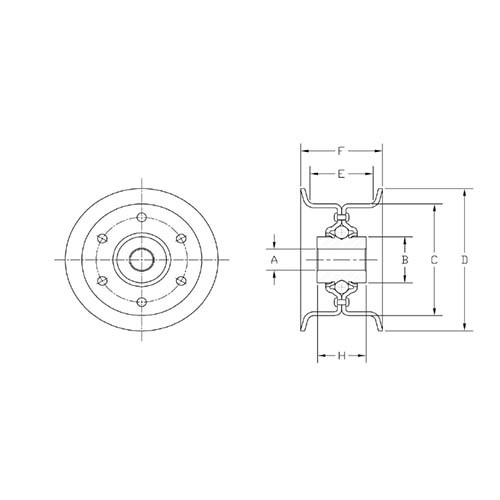

Specifications

  • AIMS SKU A0150982
  • Brand Aetna
  • Model Number AG2352-A
  • Weight (kg) 0.331
  • D (inch) 3-1/4
  • H (inch) 0.75
  • h (mm) 19.05
  • B (mm) 46.037
  • A (mm) 13.106/13.258
  • C (inch) 2-7/8
  • G (inch) 0.144
  • Belt Size 0
  • Weight (lbs) 0.73
  • g (mm) 3.657
  • e (mm) 17.462
  • f (inch) 27/32
  • C (mm) 73.025
  • E (inch) 11/16
  • Bolt Size (inch) 1/2
  • B (inch) 1-3/16
  • D (mm) 82.55
  • f (mm) 24.431
  • a (inch) .516/.522
  • Type Idler Pulley
  • Item Type Flat Flanged Idler - 4 Point Heavy Duty Pulley
SKU: A0150982

Aetna Idler Pulley Flat Flanged 2-7/8" OD x 1/2" ID x 1-3/16"
