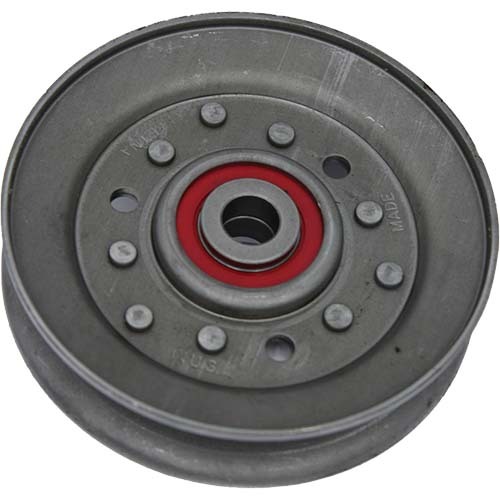

Idler Pulley B Section V-Belt High-Speed Pulley Single Row

  • High Speed Pulley.
  • Single Row Bearing.
  • B Section.

About Aetna Idler High-Speed Pulley - Single Row Bearing

  • They are used in heavy-duty applications where loads and speeds are greater than required for unground bearings usually over 2000 RPM.
  • Many are used on modern combines and hay baling equipment.
  • V-belt idlers are available with single-row bearings with a bore size to clear 1/2" and 5/8" bolts.
  • The belt idlers are generally used as tensioners or direction changes.
  • Permanently lubricated and sealed against grime and dirt.
  • Fit into the existing design with little or no engineering changes or are readily adapted to new designs.

About Advantage

  • Heavy gauge precision formed steel with a double row of steel rivets with strengthening rib.
  • Precision bearing for high capacity, lubricated, and sealed for life.
  • Solid steel bushing to provide proper mounting clearance
  • "Weep" holes to prevent water build-up.
  • Basic radial load rating of precision bearing is 1,820 pounds

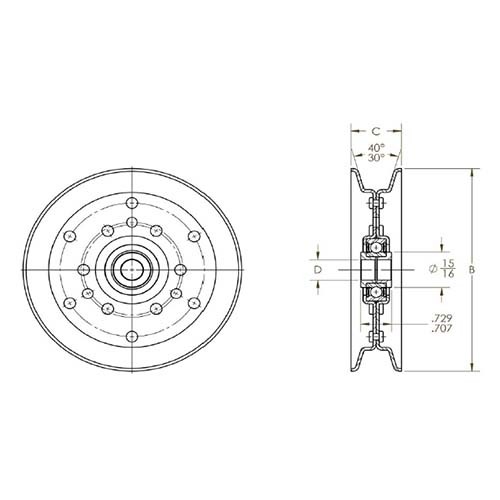

Specifications

  • AIMS SKU A0151003
  • Brand Aetna
  • Model Number B13516-A
  • Belt Size B
  • D (mm) 12.954/13.081
  • C (mm) 25.4
  • B (inch) 4-3/8
  • b (mm) 111.125
  • D (inch) .510/.515
  • Inside Diameter (inch) 1/2
  • C (inch) 1
  • Type V-Belt Idler Pulley
  • Item Type V-Belt Idler High Speed Pulleys - Single Row Bearing
SKU: A0151003 On Sale

Aetna Idler Pulley B Section 4-3/8" OD x 1/2" ID x 1" Wide

Idler Pulley B Section V-Belt Single Row

$89.42
$99.35
