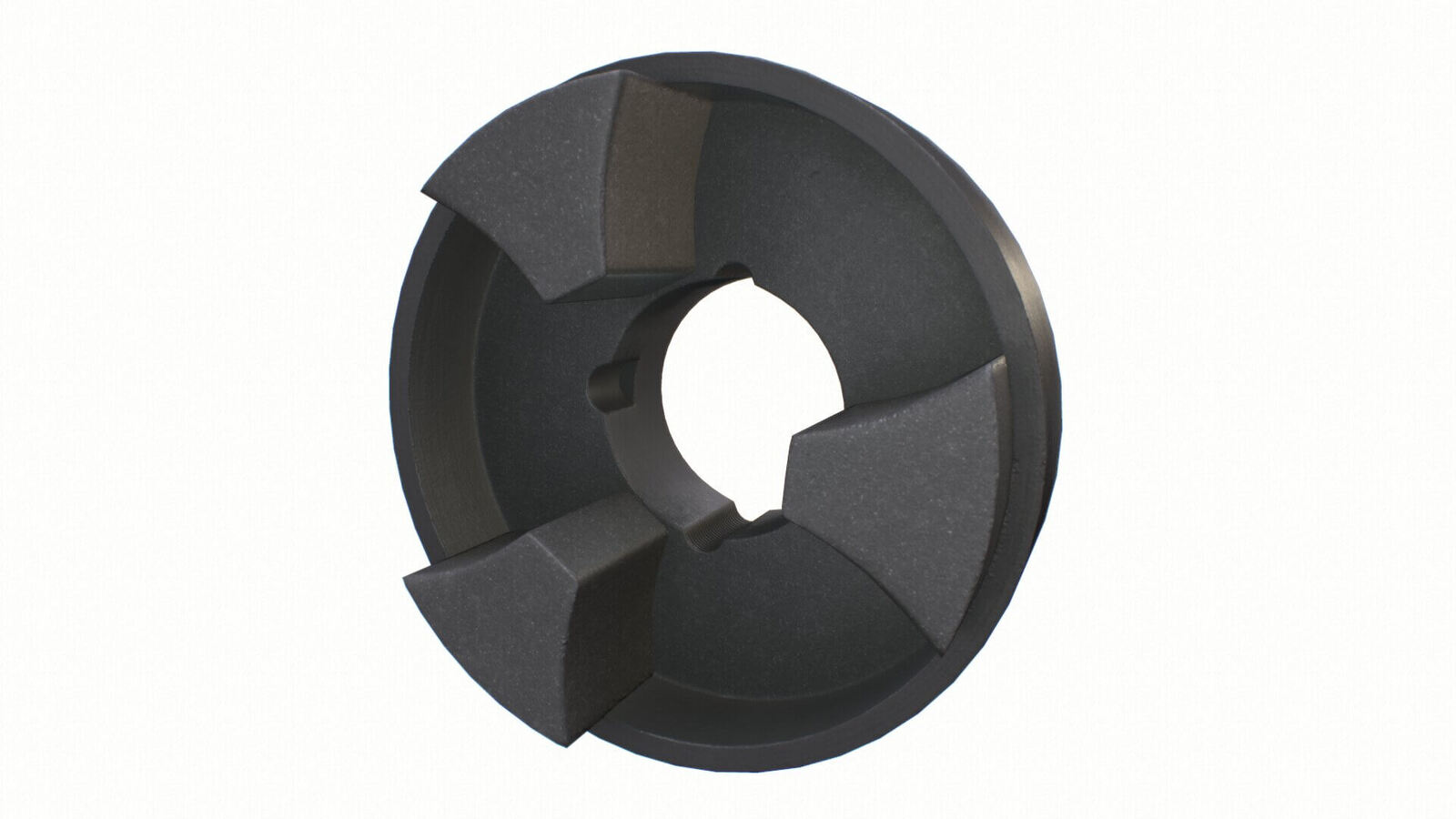

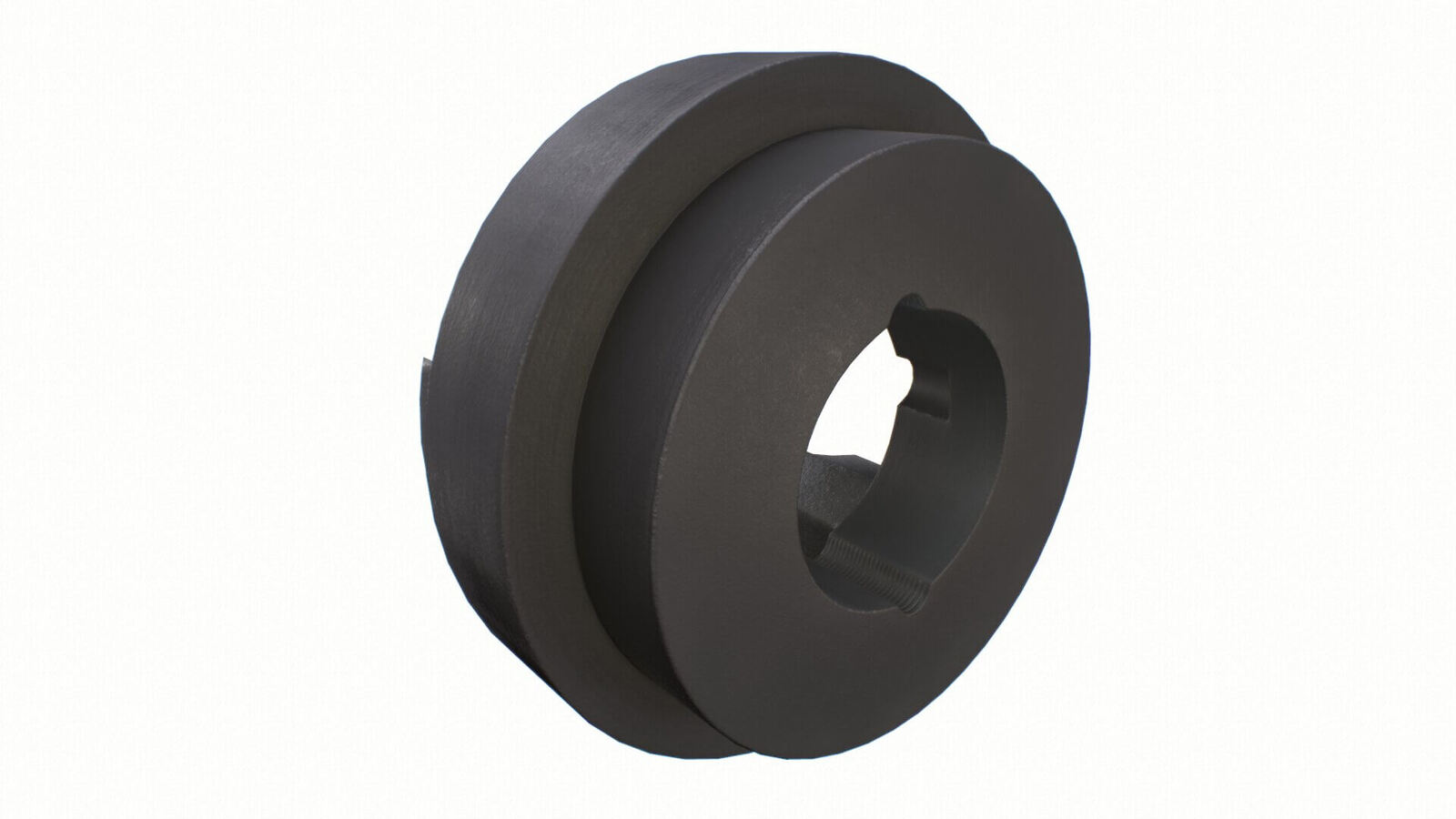

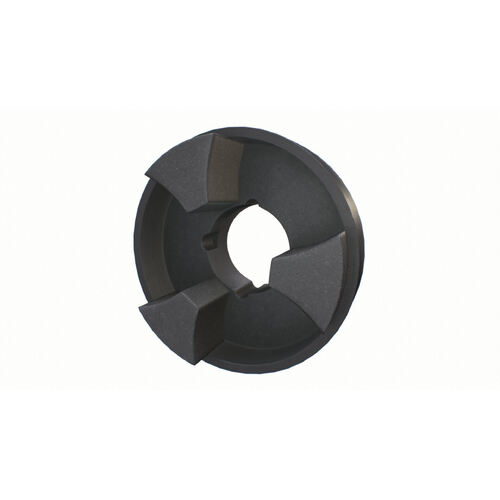

HRC Coupling Half - Hub Taper Lock Type H

***Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

Half-Coupling Flange Type-H

• HRC Half-Coupling Flange Type-H
• Coupling flange has taper bores ready to be fitted with tapered locking bush that is inserted from the hub end or outer side
• Product item is single flange (half-coupling) and tapered locking bush will need to be bought separately
• Can be paired with F-Type and B-Type Flanges (i.e. HH, HF, HB coupling assemblies)

Construction

• Material: GG25 Grey Cast Iron
• Angular Misalignment Capacity: 1 degree
• Refer to product data sheet for other technical details

Advantages

• Semi-elastic flexible coupling permit quick and easy assembly by means of Taper Lock bush fixing
• Coupling assembly is designed for general purpose and uses an element in compression
• H-Type Flange assists with ease of installation since bush enters the hub from outside the coupling
• Designed for use particularly on machinery driven from standard IEC electric motors
• Fully machined outside diameters allow alignment by simple edge methods
• Shaft connection is ‚Äö√Ñ√∫fail safe‚Äö√Ñ√π due to interacting jaw/dog design
• Installation is quick and easy without special tools, only an allen key is required
• Maintenance is virtually eliminated, and no lubricant is required
