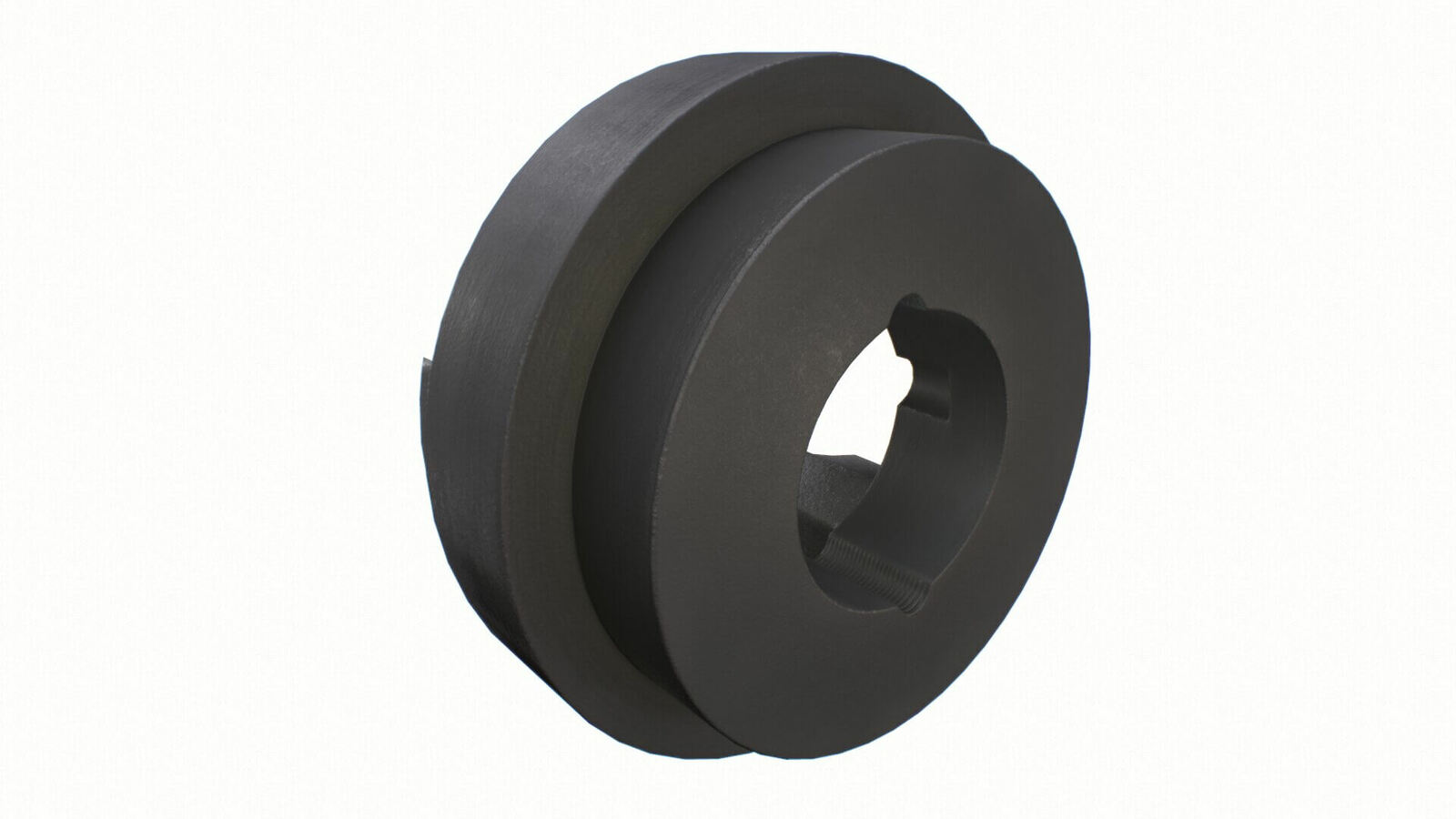

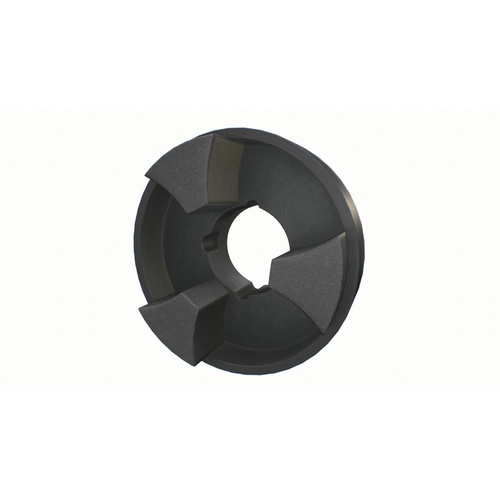

Half-Coupling Flange Type-F

• HRC Half-Coupling Flange Type-F
• Coupling flange has taper bores ready to be fitted with tapered locking bush that is inserted from the flange end or inner side
• Product item is single flange (half-coupling) and tapered locking bush will need to be bought separately
• Can be paired with H-Type and B-Type Flanges (i.e. FF, FH,FB coupling assemblies)

Construction

• Material: GG25 Grey Cast Iron
• Angular Misalignment Capacity: 1 degree
• Refer to product data sheet for other technical details

Advantages

• Semi-elastic flexible coupling permit quick and easy assembly by means of Taper Lock bush fixing
• Coupling assembly is designed for general purpose and uses an element in compression
• F-Type Flange allows coupling hub to be mounted against the bearing on a shaft, reducing overhung loads
• Designed for use particularly on machinery driven from standard IEC electric motors
• Fully machined outside diameters allow alignment by simple edge methods
• Shaft connection is ‚Äúfail safe‚Äù due to interacting jaw/dog design
• Installation is quick and easy without special tools, only an allen key is required
• Maintenance is virtually eliminated, and no lubricant is required

Features (HRC Coupling in Taper Bore)

• No re-boring and keywaying costs
• Eliminates precision taper fitting keys
• Taper bored components can be transferred to other diameter shafts by fitting alternative bore bushes
• Arrangement of threaded holes and longitudinally split tapered bushes ensure maximum grip and fast, easy fitting of coupling assemblies
• Design of the HRC coupling has been optimised so that power capacities are balanced to the appropriate shaft diameters utilising Taper-Lock Bush fixing
