HiKOKI DB3DL2(HLZ) Pencil Driver Drill Kit

  • Introducing the 36V 28mm SDS PLUS Brushless Rotary Hammer with Quick Release Chuck Kit DH3628DC(HRZ) from HiKOKI.
  • The DH3628DC is a game-changing rotary hammer designed to revolutionize your construction projects.
  • Powered by a robust 36V brushless motor, this 28mm SDS PLUS hammer delivers unrivaled performance and exceptional drilling power.
  • Equipped with a quick-release chuck, it allows for effortless bit changes, saving you valuable time on the job site.
  • The DH3628DC(H4Z) boasts enhanced durability, ensuring it can withstand the toughest tasks and prolonged use.
  • With its cutting-edge technology and ergonomic design, this HiKOKI rotary hammer is the ultimate tool for professionals seeking precision, efficiency, and reliability in their work.
  • Experience the future of drilling today

Features

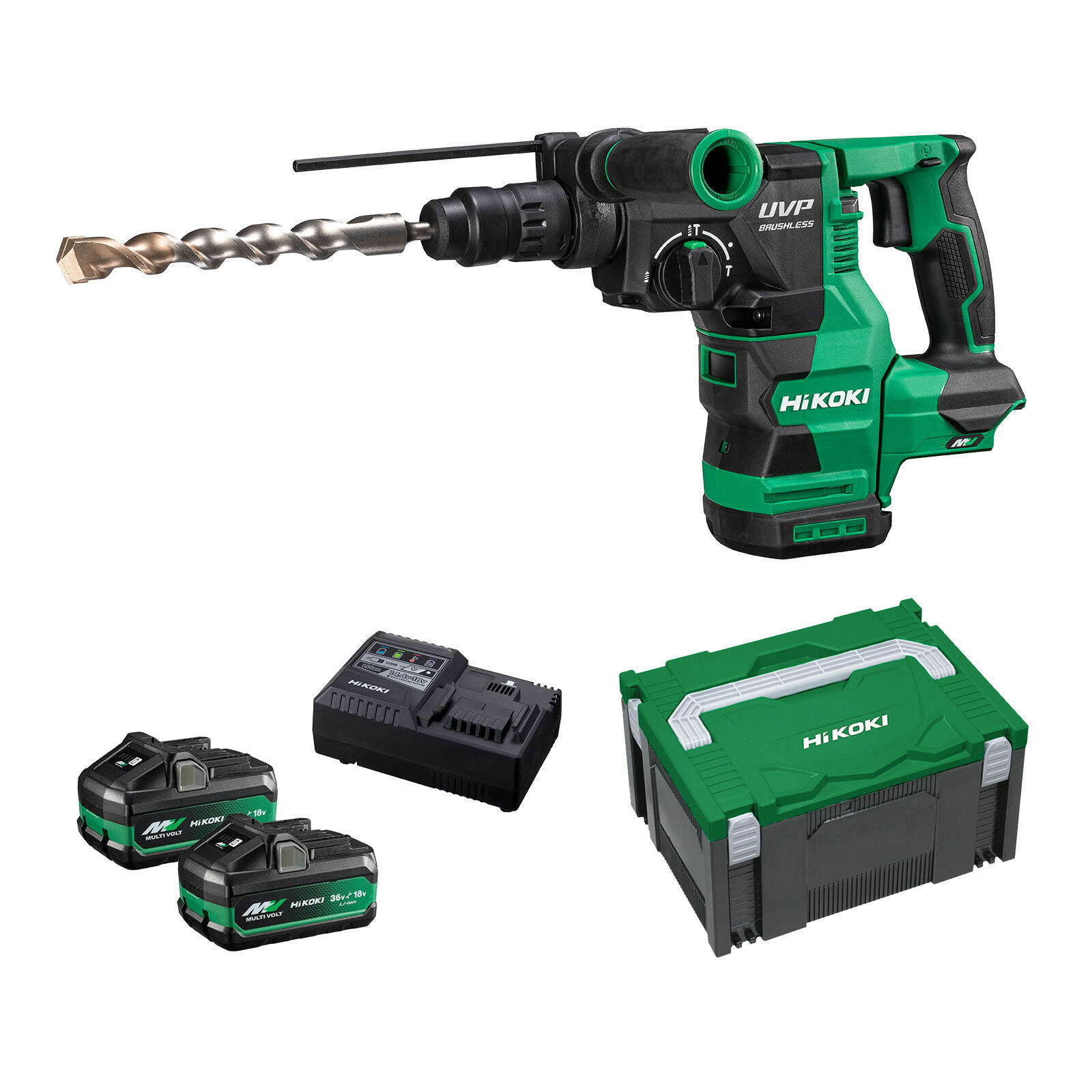

  • 1 x DH3628DC 36V 28mm SDS PLUS Brushless Rotary Hammer with Quick Release Chuck Kit
  • 2 x BSL36A18X 18V 5.0Ah / 36V 2.5Ah MultiVolt Battery
  • 1 x UC18YSL3 18V Rapid Charger with USB port
  • 1 x Stackable Case

Warranty:

  • Includes 3 Years Standard Warranty with an additional 3 Years when registered online.

About DH3628DC 36V 28mm SDS PLUS Brushless Rotary Hammer with Quick Release

  • Achieve exceptional drilling speed and chiseling performance with an impact energy of 3.2J (2.4ft-lbs).
  • Experience reduced vibration with the innovative Low Vibration System (UVP), featuring a dynamic vibration absorber and a low vibration handle.
  • Enjoy additional functionality, including an LED level, Reactive Force Control (RFC), 2-step rotation speed, auto stop function, and an LED working light for enhanced precision.
  • Benefit from the available dust extractor system, featuring a compact and lightweight design, cyclonic separation for sustained suction power, and a HEPA filter ensuring clean air exhaust.
  • Effortlessly switch between SDS-plus and wood/metal drill bits with the Quick Release Chuck, enhancing adaptability.
  • Experience lasting performance with the durable brushless motor.
  • Operate comfortably and efficiently with the ergonomically designed L-shaped body.

DH3628DC 36V 28mm SDS PLUS Brushless Rotary Hammer with Quick ReleaseSpecifications

  • Voltage: 36V
  • Motor type: Brushless
  • Switch type: Variable speed trigger switch
  • Impact energy: 3.2J
  • Drilling Range Capacity
    • Concrete drill bit: 3.4 - 28mm
    • Concrete core bit: 25 - 50mm
    • Steel: 13mm
    • Wood: 32mm
  • Full load impact rate: 0 - 4,300bpm
  • No-load rotation speed: 0-950rpm
  • 3 operating modes: Hammer only, drilling only & Hammer / Drilling
  • Light: LED
  • UVP (User Vibration Protection): Yes
  • Low Vibration Handle: Yes
  • RFC (Reactive Force Control): Yes
  • One-Push Action for Quick Bit Mounting: Yes
  • Constant Speed Control: Yes
  • 2 Step Speed Control: Yes
  • Auto Stop Function: Yes
  • LED level: Yes
  • Weight including battery (BSL36A18): 3.9kg
  • Dimensions L x W x H including battery: 356 x 91 x 232mm

About BSL36A18X 18V 5.0Ah / 36V 2.5Ah MultiVolt Battery

  • Dual Voltage: 18V and 36V, offering versatility.
  • Multiplex Protection Circuit (MPC): Guards against overload, overcharge, and over-discharge for enhanced safety and battery longevity.
  • No Memory Effect: Charge it whenever you need, without performance loss.

BSL36A18X 18V 5.0Ah / 36V 2.5Ah MultiVolt Battery Specifications

  • Voltage: 18V / 36V
  • Ampere: 5.0Ah (36V) / 2.5Ah (18V)
  • Power Output: 1080W
  • Cell Technology: Lithium (Li-ion) cells
  • Cooling System: Yes
  • Battery Mounting: Slide
  • Battery Level Indicator: Yes
  • Approx. charge time UC18YSL3: 32 minutes
  • Recharge cycles: Approx. 1,500
  • Weight: 0.7kg (700 grams)
  • Dimensions (L x W x H): 119 x 69 x 76mm
  • Compatibility: Compatible with HiKOKI 18V &36V Slide battery type products

About UC18YSL3 18V Rapid Charger with USB port

  • Approximately 38 minutes charging time (6.0Ah battery)
  • Approximately 32 minutes charging time (5.0Ah battery)
  • 18V Rapid charger with cooling and USB port
  • Compatible with all HiKOKI 18V slide type li-ion batteries

UC18YSL3 18V Rapid Charger with USB port Specifications

  • Voltage: 14.4V / 18V
  • Battery type: Lithium-ion (li-ion) Slide battery
  • Fan cooling: Yes
  • Charging time
    Approx. 32min for 5.0Ah Battery
    Approx. 38min for 6.0Ah Battery
  • Status indicator: LED light
  • USP port: 5V, 2.0Ah

Specifications

  • AIMS SKU A0209253
  • Brand Hikoki
  • Model Number DH3628DC(HRZ)
  • Barcode Number 9323624001453
  • Type Cordless SDS Plus Rotary Hammer Kit
