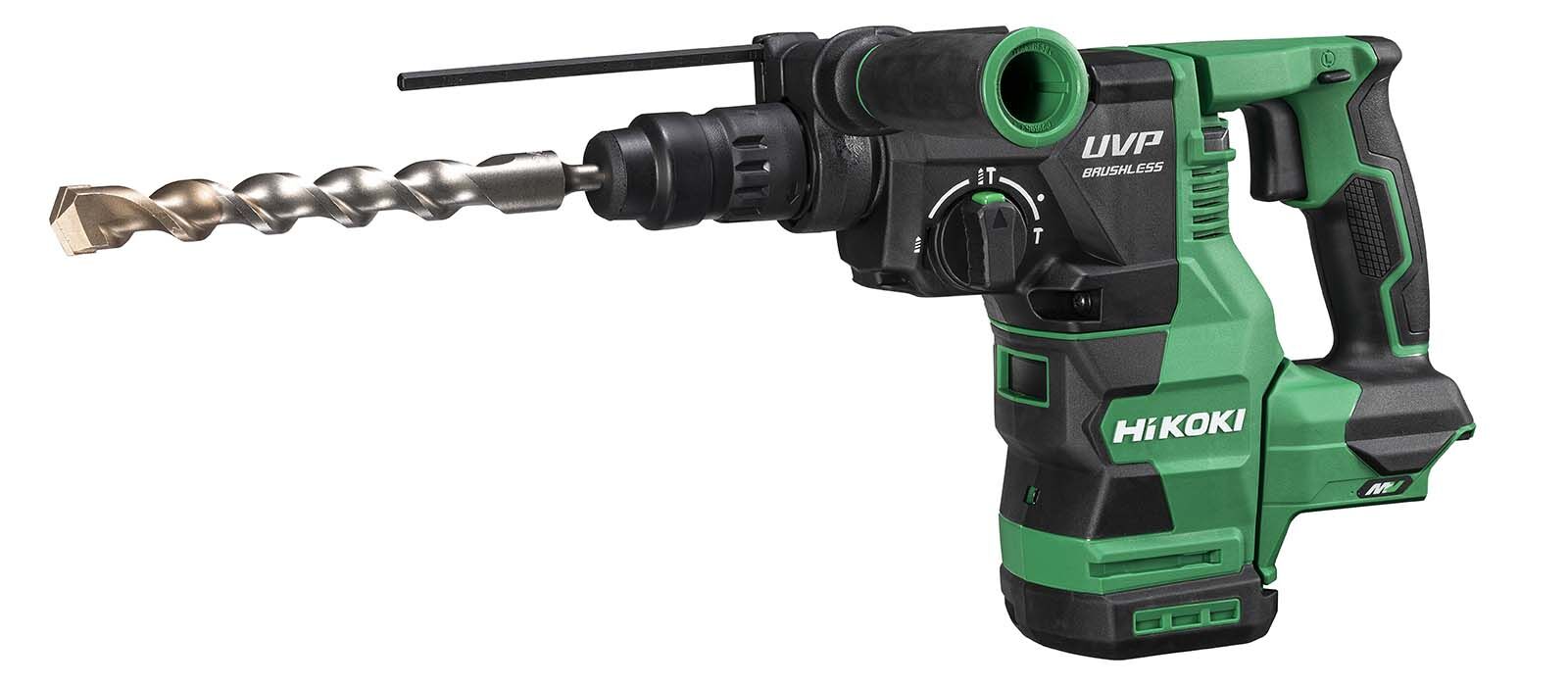

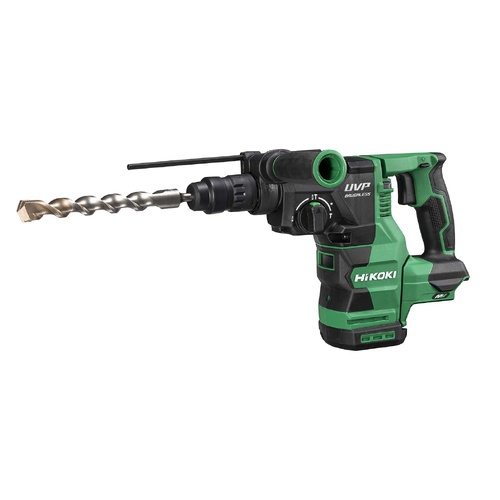

HiKOKI DH3628DC(H4Z) 36V Brushless SDS Plus Rotary Hammer

• Introducing the groundbreaking 36V 28mm SDS PLUS Brushless Rotary Hammer with Quick Release Chuck DH3628DC(H4Z) from HiKOKI.
• This cordless marvel combines an L-shaped body, quick-release chuck, and a 28mm concrete drilling capacity for unparalleled versatility.
• With 3.2J impact energy, it ensures swift drilling and outstanding chiseling performance.
• User-friendly features include Low Vibration System (UVP), LED level, Reactive Force Control (RFC), 2-step rotation speed, auto stop, and an LED working light for precise control.
• The dust extractor system, featuring cyclonic separation and a HEPA filter, ensures sustained power and clean air.
• Skin Tool only (Battery & Charger not included)

Product Features

• Achieve exceptional drilling speed and chiseling performance with an impact energy of 3.2J (2.4ft-lbs).
• Experience reduced vibration with the innovative Low Vibration System (UVP), featuring a dynamic vibration absorber and a low vibration handle.
• Enjoy additional functionality, including an LED level, Reactive Force Control (RFC), 2-step rotation speed, auto stop function, and an LED working light for enhanced precision.
• Benefit from the available dust extractor system, featuring a compact and lightweight design, cyclonic separation for sustained suction power, and a HEPA filter ensuring clean air exhaust.
• Effortlessly switch between SDS-plus and wood/metal drill bits with the Quick Release Chuck, enhancing adaptability.
• Experience lasting performance with the durable brushless motor.
• Operate comfortably and efficiently with the ergonomically designed L-shaped body.

Applications:

• Drilling into concrete surfaces
• Creating pilot holes for anchors, nylon plugs, and other fasteners
• Precision drilling in tiles and bricks with adjustable hammering force using a variable speed switch
• Anchoring with hammering force using an anchor setter
• Performing concrete chiseling, chipping, wall chasing, and tile removal
• Drilling holes into metal and wood materials using a drill chuck holder

Warranty

• Includes 3 Years Standard Warranty with an additional 3 Years when registered online.

Specifications

• Voltage: 36V
• Motor type: Brushless
• Switch type: Variable speed trigger switch
• Impact energy: 3.2J
• Drilling Range Capacity
  • Concrete drill bit: 3.4 - 28mm
  • Concrete core bit: 25 - 50mm
  • Steel: 13mm
  • Wood: 32mm
• Full load impact rate: 0 - 4,300bpm
• No-load rotation speed: 0-950rpm
• 3 operating modes: Hammer only, drilling only & Hammer / Drilling
• Light: LED
• UVP (User Vibration Protection): Yes
• Low Vibration Handle: Yes
• RFC (Reactive Force Control): Yes
• One-Push Action for Quick Bit Mounting: Yes
• Constant Speed Control: Yes
• 2 Step Speed Control: Yes
• Auto Stop Function: Yes
• LED level: Yes
• Weight including battery (BSL36A18): 3.9kg
• Dimensions L x W x H including battery: 356 x 91 x 232mm
