Description

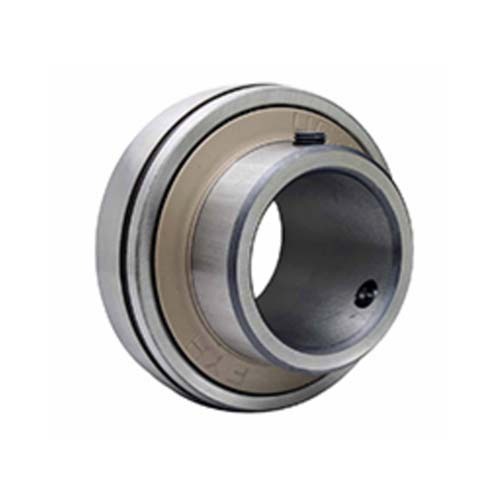

Heavy Wide Inner Ring Bearing Cylindrical Bore w/ Grub Screw - Imperial

  • Ball bearing insert.
  • Cylindrical bore with grub screw.

About Wide Inner Ring Bearing

  • Commonly used ball bearings designed for installation into the corresponding wide inner ring housings.
  • This range is well known for its versatility between bearing and housing options as well as ease of installation.
  • Wide inner ring insert bearings also distributes the load over the larger surface area created by the wider inner ring.
  • These bearings are generally used for heavier duty applications.

Specifications

  • AIMS SKU A0156860
  • Brand FYH
  • Model Number UC308-24/FYH

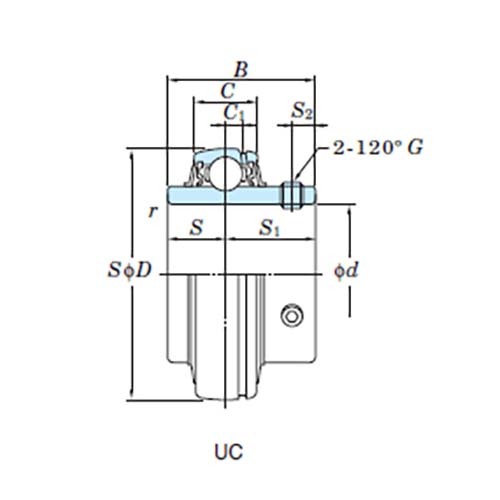

  • Outside Diameter 3.543 in
  • B (in) 2.047
  • Shaft Diameter (in) 1 1/2
  • b (mm) 52
  • S (mm) 19
  • Set Screw Brg. Bore G (mm) M10 x 1.25
  • S (in) 0.748
  • R Min (in) 0.059
  • C (in) 1.102
  • D (in) 3.543
  • Width 2.047 in
  • S2 (mm) 10
  • C1 (mm) 8
  • S2 (in) 0.394
  • Basic Load Rating C0r (kn) 24
  • R Min (mm) 1.5
  • C1 (in) 0.315
  • Bore Diameter 1 1/2 in
  • D (mm) 90
  • S1 (mm) 33
  • C (mm) 28
  • S1 (in) 1.299
  • Basic Load Rating Cr (kn) 40.7
  • Factor f0 13.2
  • Type Ball Bearing
  • System of Measurement Imperial
  • Series UC300
SKU: A0156860

FYH Heavy Wide Inner Ring Bearing UC308-24 with Grub Screw 1 1/2 x 3.543"

Heavy Wide Inner Ring Bearing w/ Grub Screw - Imperial

$120.34
