Description

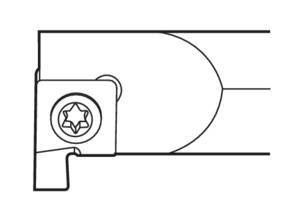

Grooving Toolholder Screw (SNR/L) Internal

  • Cylindrical, shank type.
  • Internal.
  • Screw, insert clamping.

About Seco Grooving

  • No matter the material, component size, surface finish or accuracy requirement, we have a grooving solution that can enhance your productivity and profitability from flexible products that work across a variety of part types to dedicated tools that solve unique challenges.

About Seco K-Style Precision Grooves

  • The Seco K-Style system is intended for radial and axial as well as external and internal precision grooving.
  • The range of grooving inserts includes inserts for most groove profiles, such as circlip profiles, O-ring profiles, thread undercut and radius grooves.

Specifications

  • AIMS SKU A0118809
  • Brand Seco
  • Model Number 75025331
  • Barcode Number 25331750000101
  • Designation SNL0010H9

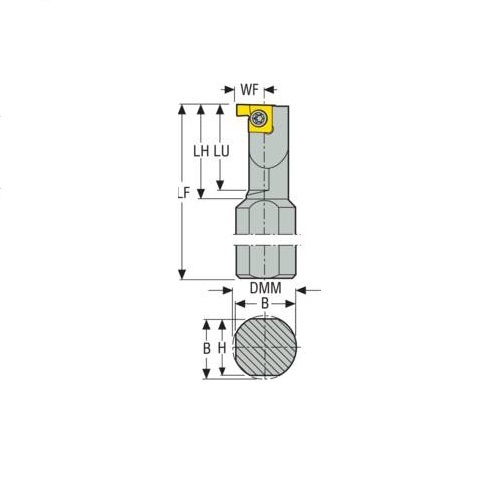

  • Functional Length (LF) mm 100
  • Head Length (lh ) Mm 20
  • Height Of Tool Holder Shank (H) mm 9.5
  • Direction Of Cutting (hand) Left
  • Functional Width (WF) mm 7.5
  • Connection Text Workpiece Side (ctws) 9NL
  • Connection Text Machine Side (CTMS) 10
  • Cutting Diameter Internal Minimum (dcinn) Mm 14
  • Shank Diameter (DMM) mm 10
  • Shank Width (b) mm 9.5
  • Type Grooving Toolholder
  • Insert Clamping System (ICS) S
  • Tool Cutting Edge Angle (kapr) Deg 90.0 deg
  • Shank Type Cylindrical
  • Version (internal/external/both) (ver) Internal
SKU: A0118809 On Sale

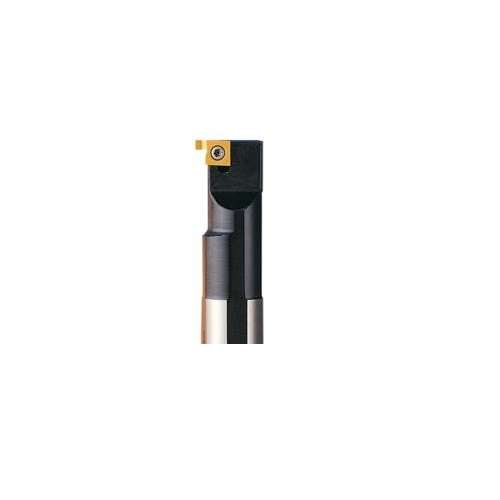

Seco Internal Grooving Toolholder (Screw) 9.5 x 9.5 x 100mm Left SNL0010H9

Grooving Toolholder Screw (SNR/L)

$175.03
$205.92
