Description

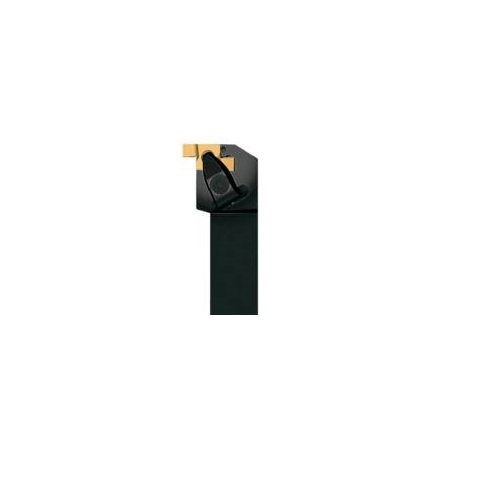

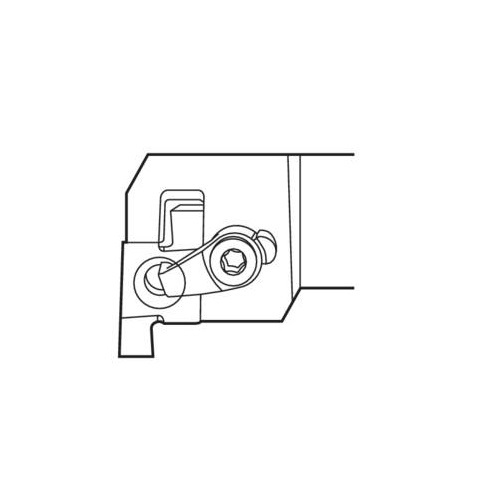

Grooving Toolholder Clamp - Cranked-Heavy Duty (CEAR/L)

  • Square shank, shank type.
  • External axial.
  • Clamp Type, insert clamping.

About Seco Grooving

  • No matter the material, component size, surface finish or accuracy requirement, we have a grooving solution that can enhance your productivity and profitability from flexible products that work across a variety of part types to dedicated tools that solve unique challenges.

About Seco K-Style Precision Grooves

  • The Seco K-Style system is intended for radial and axial as well as external and internal precision grooving.
  • The range of grooving inserts includes inserts for most groove profiles, such as circlip profiles, O-ring profiles, thread undercut and radius grooves.

Specifications

  • AIMS SKU A0118640
  • Brand Seco
  • Model Number 2528519
  • Barcode Number 28519025000101
  • Designation CEAL2525M20QHD
  • Functional Length (LF) mm 150
  • Height Of Tool Holder Shank (H) mm 25
  • Direction Of Cutting (hand) Left
  • Head Length (lh ) Mm 35
  • Connection Text Workpiece Side (ctws) 20EAL
  • Connection Text Machine Side (CTMS) 2525
  • Functional Width (WF) mm 39.4
  • Shank Width (b) mm 25
  • Type Grooving Toolholder
  • Version (internal/external/both) (ver) External
  • Shank Type Square shank
  • Tool Cutting Edge Angle (kapr) Deg 90.0 deg
SKU: A0118640 On Sale

Seco External Grooving Toolholder (Clamp) 35 x 39.4 x 150mm Left Cranked - Heavy Duty CEAL2525M20QHD

Grooving Toolholder Clamp - Cranked-Heavy Duty (CEAR/L)

$197.47
