Description

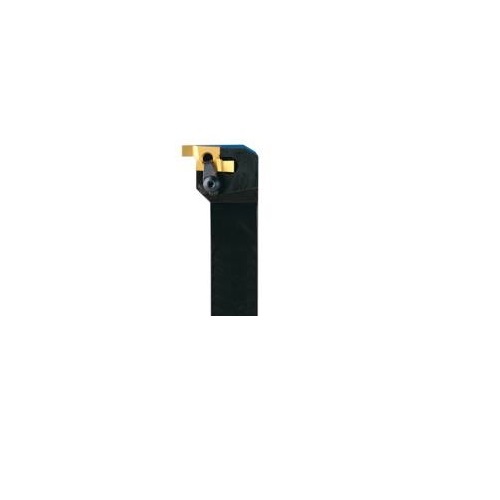

Grooving Toolholder Clamp (CEAR/L) External Axial

  • Square shank, shank type.
  • External axial.

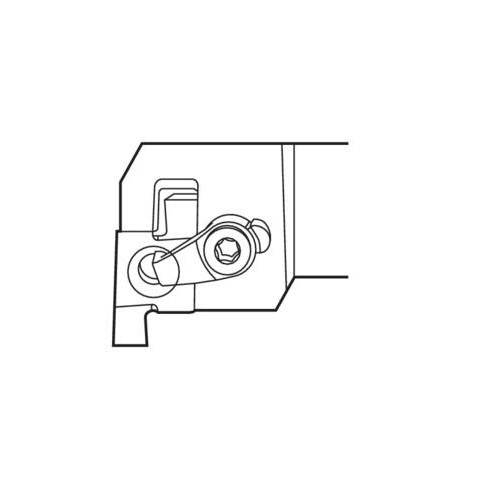

  • Clamp Type, insert clamping.

About Seco Grooving

  • No matter the material, component size, surface finish or accuracy requirement, we have a grooving solution that can enhance your productivity and profitability from flexible products that work across a variety of part types to dedicated tools that solve unique challenges.

About Seco K-Style Precision Grooves

  • The Seco K-Style system is intended for radial and axial as well as external and internal precision grooving.
  • The range of grooving inserts includes inserts for most groove profiles, such as circlip profiles, O-ring profiles, thread undercut and radius grooves.

Specifications

  • AIMS SKU A0118633
  • Brand Seco
  • Model Number 72613
  • Barcode Number 72613000000108
  • Designation CEAL1006-10

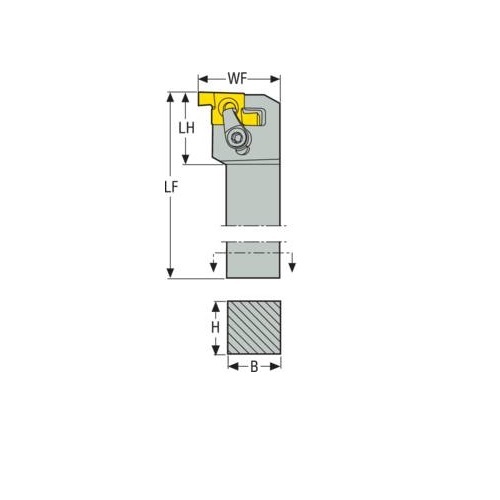

  • Functional Length (LF) mm 152.4
  • Height Of Tool Holder Shank (H) mm 25.4
  • Direction Of Cutting (hand) Left
  • Head Length (lh ) Mm 28.2
  • Connection Text Workpiece Side (ctws) 10/12EAL
  • Connection Text Machine Side (CTMS) 25.4
  • Functional Width (WF) mm 35.4
  • Shank Width (b) mm 25.4
  • Type Grooving Toolholder
  • Insert Clamping System (ICS) C
  • Tool Cutting Edge Angle (kapr) Deg 90.0 deg
  • Shank Type Square shank
  • Version (internal/external/both) (ver) External
SKU: A0118633 On Sale

Seco External Grooving Toolholder (Clamp) 28.2 x 35.4 x 152.4mm Left CEAL1006-10

Grooving Toolholder Clamp (CEAR/L)

$176.53
$207.68
