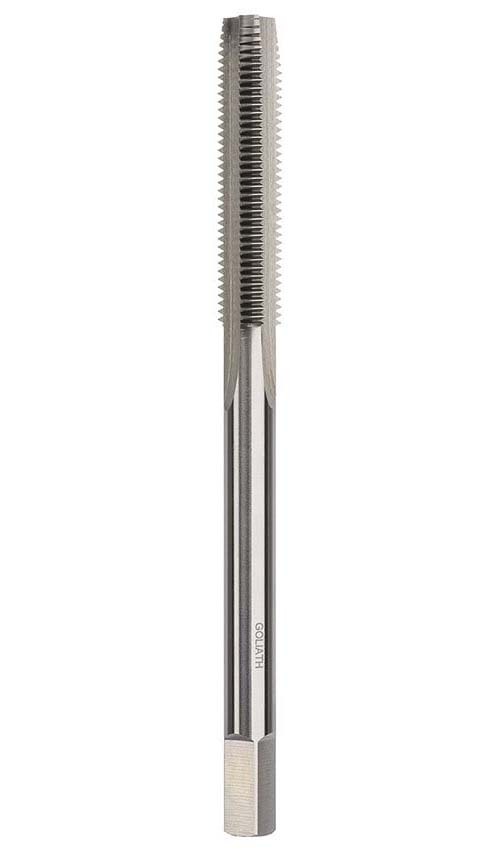

Goliath UNC Intermediate Machine Nut HSS Tap

  • HSS Bright Finish UNC Machine Nut Intermediate Tap.
  • Machine Nut Taps are used where a long shank is needed and are available in Taper, Intermediate, and Bottoming leads.
  • To ensure easy and precise use the Machine Nut Tap Taper lead has a unique, very long entering chamfer.
  • This makes aligning the cutting end with the work piece simple.
  • Ideal for tapping nuts, small quantities made from tough steel such as stainless steel as well as mild steels, or for rethreading rusty or worn threads.
  • Alternatively, the Intermediate and Bottoming leads are ideally suited to long-reach threading applications where the thread needing to be tapped or cleaned is beyond the reach of a standard tap.
  • We recommend the Intermediate lead Machine Nut Tap for long-reach through-hole applications and the Bottoming lead for long-reach blind hole applications.
  • The Unified National Coarse thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada, and the UK.
  • The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.
  • The thread is described by its major diameter and the number of threads per inch of length (TPI).
  • This thread series is commonly used in the mass production of bolts, screws, and nuts.
  • It is used for threading into lower tensile strength materials (bronze, brass, aluminium, and plastics) to obtain the best resistance to stripping of the internal thread.
  • It is also used on quick assembly or disassembly or if corrosion or slight damage is possible.


  • AIMS SKU A0195934
  • Brand Goliath
  • Model Number L08CJ3
  • Barcode Number 9349009020383
  • Diameter (inch) No. 8
  • Thread (TPI) 32
  • Tolerance CL2
  • No. Of Flutes 3
  • Thread Length (mm) 25
  • Drill Diameter 3.5mm
  • Thread Form Type UNC
  • Length Overall (mm) 95
  • Type Machine Nut Tap
  • Material HSS
  • Finish Bright
  • Lead Intermediate
  • Standard BS949
SKU: A0195934

Goliath No. 8 x 32 UNC Intermediate Machine Nut HSS Tap Bright L08CJ3

Goliath UNC Intermediate Machine Nut HSS Tap

RRP $130.42
SAVE $42.89 (33%)
