Description

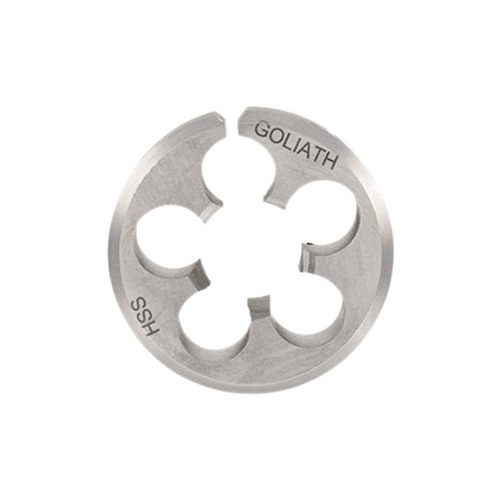

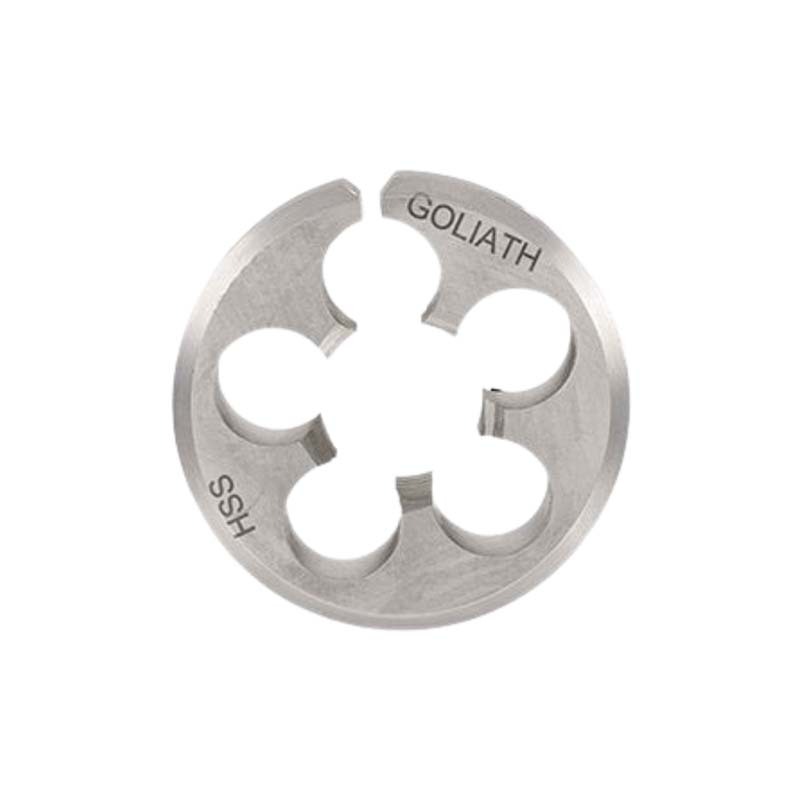

Goliath UNC HSS Left Hand Circular Split Button Die

  • HSS Left Hand Circular Split Button Die
  • HSS Button Dies (also known as Adjustable Dies) are designed for cutting external threads.
  • They are used for threading rods, bolts, and studs, either by hand using a die stock, or by machine using a floating die holder.
  • They also can be used to cut smaller or larger, than the factory setting, by utilising the adjusting screws in the die holder.
  • Dies are manufactured with a thread chamfer to aid starting.
  • M2-HSS material provides increased wear resistance and superior thread accuracy.
  • The Unified National Coarse thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.
  • The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.
  • The thread is described by its major diameter and the number of threads per inch of length (TPI).
  • This thread series is commonly used in the mass production of bolts, screws, and nuts.
  • It is used for threading into lower tensile strength materials (bronze, brass, aluminium and plastics) to obtain the best resistance to stripping of the internal thread.
  • It is also used on quick assembly or disassembly or if corrosion or slight damage is possible.

Specifications

  • AIMS SKU A0196179
  • Brand Goliath
  • Model Number F07CAL
  • Barcode Number 9349009026002
  • Outer Diameter 13/16"
  • Diameter (inch) No. 6
  • TPI 32
  • Thread Form Type UNC
  • Type Button Dies
  • Material HSS
SKU: A0196179

Goliath No. 6 x 32 UNC 13/16" HSS Left Hand Circular Split Button Die

Goliath UNC HSS Left Hand Circular Split Button Die

$138.25
RRP $171.66
SAVE $33.41 (19%)
