Description

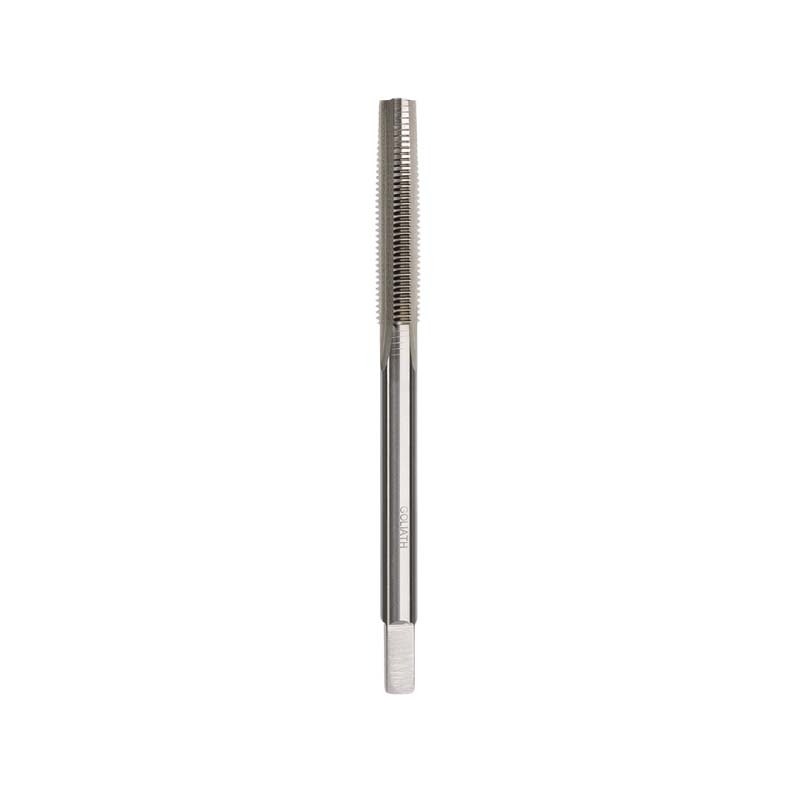

Goliath MC Taper Machine Nut HSS Tap

  • HSS Bright Finish Metric Coarse Machine Nut Taper Tap.
  • Machine Nut Taps are used where a long shank is needed and are available in Taper, Intermediate, and Bottoming leads.
  • To ensure easy and precise use the Machine Nut Tap Taper lead has a unique, very long entering chamfer.
  • This makes aligning the cutting end with the workpiece simple.
  • Ideal for tapping nuts, small quantities made from tough steel such as stainless steel as well as mild steels, or for rethreading rusty or worn threads.
  • Alternatively, the Intermediate and Bottoming leads are ideally suited to long-reach threading applications where the thread needs to be tapped or cleaned is beyond the reach of a standard tap.
  • We recommend the Intermediate lead Machine Nut Tap for long-reach through-hole applications and the Bottoming lead for long-reach blind-hole applications.
  • The Metric Coarse angle of thread is 60 degrees.
  • The crest is flat and the thread has clearance at the root, allowing external and internal threads to engage well.
  • A larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
  • The major diameter of the external thread and pitch is specified by a simple numerical value (most commonly measured in millimetres).

Specifications

  • AIMS SKU A0193724
  • Brand Goliath
  • Model Number L33EH3
  • Barcode Number 9349009019417
  • Diameter 3mm
  • Pitch (mm) 0.5
  • Standard BS949
  • Group Code GDIE
  • Drill Diameter 2.5mm
  • Tap Lead Taper
  • Length Overall (mm) 89
  • No. Of Flutes 3
  • Thread Form Type Metric Coarse
  • Thread Length (mm) 19
  • Tolerance CL2
  • Type Machine Nut Tap
  • Material High Speed Steel (HSS)
  • Finish Bright
SKU: A0193724

Goliath 3 x 0.5mm MC Taper Machine Nut HSS Tap - L33EH3

Goliath MC Taper Machine Nut HSS Tap

$81.65
RRP $121.65
SAVE $40.00 (33%)
