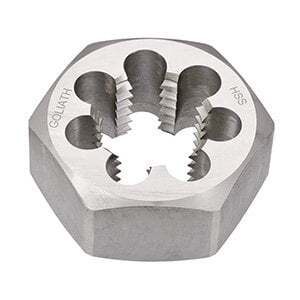

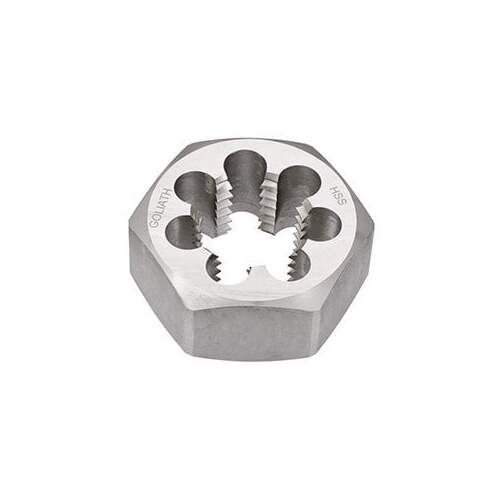

Goliath Hexagonal HSS Die Nut for External Thread
High Speed Steel (HSS) Dienuts
- Goliath solid High Speed Steel (HSS) Dienuts are used for cutting of new threads as well as extending / cleaning / resizing of existing threads where a button die is not suited due to work space restrictions and / or on site thread accessability.
- HSS Dienuts have a vastly longer tool life than Carbon dies as well as producing more accurate threads.
UNC (Unified National Coarse)
- This thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.
- The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.
- The thread is described by its major diameter and the number of threads per inch of length (TPI).
- This thread series is commonly used in the mass production of bolts, screws and nuts.
- It is used for threading into lower tensile strength materials (bronze, brass, aluminium and plastics) to obtain the best resistance to stripping of the internal thread.
- It is also used on quick assembly or disassembly or if corrosion or slight damage is possible.
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Goliath Hexagonal HSS Die Nut for External Thread
Goliath Hexagonal HSS Die Nut for External Thread
SKU: A0174440
Type: Die Nuts
- Wide Range
- Reliable Services
- Proven Trust
Available
The Goliath Hexagonal HSS Die Nut for External Thread by Goliath is a Die Nuts made of High Speed Steel (HSS). It provides a vastly longer tool life than Carbon dies and is suitable for Threading in lower tensile materials such as bronze and plastics.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
Goliath Hexagonal HSS Die Nut for External Thread
High Speed Steel (HSS) Dienuts
- Goliath solid High Speed Steel (HSS) Dienuts are used for cutting of new threads as well as extending / cleaning / resizing of existing threads where a button die is not suited due to work space restrictions and / or on site thread accessability.
- HSS Dienuts have a vastly longer tool life than Carbon dies as well as producing more accurate threads.
UNC (Unified National Coarse)
- This thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.
- The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.
- The thread is described by its major diameter and the number of threads per inch of length (TPI).
- This thread series is commonly used in the mass production of bolts, screws and nuts.
- It is used for threading into lower tensile strength materials (bronze, brass, aluminium and plastics) to obtain the best resistance to stripping of the internal thread.
- It is also used on quick assembly or disassembly or if corrosion or slight damage is possible.
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Goliath Hexagonal HSS Die Nut for External Thread
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Goliath Hexagonal HSS Die Nut for External Thread by Goliath is a Die Nuts made of High Speed Steel (HSS). It provides a vastly longer tool life than Carbon dies and is suitable for Threading in lower tensile materials such as bronze and plastics. |
Regular price
From $91.66
Sale price
From $91.66
Regular price
Unit price
/per
| Goliath | Die Nuts |
TPI
40,32,24,20,18,16,14,13,12,11,10,9,8,7,6,5,4.5
Diameter (inch)
No.4,No.6,No.8,No.10,No.12,0.25,5/16,3/8,7/16,0.5,9/16,0.625,0.75,0.875,1,1-1/8,1-1/4,1-3/8,1-1/2,1-3/4,2
|
Choose your option
Goliath Hexagonal HSS Die Nut for External Thread
Goliath Hexagonal HSS Die Nut for External Thread
SKU: A0174440
Type: Die Nuts
Hurry up, only 5 items left in stock.
The Goliath Hexagonal HSS Die Nut for External Thread by Goliath is a Die Nuts made of High Speed Steel (HSS). It provides a vastly longer tool life than Carbon dies and is suitable for Threading in lower tensile materials such as bronze and plastics.
