Goliath F01DA Circular Split Button Die HSS No. 0 x 80 UNF 13/16"

Goliath F02DA Circular Split Button Die HSS No. 1 x 72 UNF 13/16"

Goliath F03DA Circular Split Button Die HSS No. 2 x 64 UNF 13/16"

Goliath F04DA Circular Split Button Die HSS No. 3 x 56 UNF 13/16"

Goliath F05DA Circular Split Button Die HSS No. 4 x 48 UNF 13/16"

Goliath F06DA Circular Split Button Die HSS No. 5 x 44 UNF 13/16"

Goliath F07DA Circular Split Button Die HSS No. 6 x 40 UNF 13/16"

Goliath F08DA Circular Split Button Die HSS No. 8 x 36 UNF 13/16"

Goliath F09DA Circular Split Button Die HSS No. 10 x 32 UNF 13/16"

Goliath F10DA Circular Split Button Die HSS No. 12 x 28 UNF 13/16"

Goliath F09DB Circular Split Button Die HSS No. 10 x 32 UNF 1"

Goliath 1/4" x 28 TPI UNF 13/16" HSS Circular Split Button Die - F11DA

Goliath No 12 x 28 TPI UNF 1" HSS Circular Split Button Die - F10DB

Goliath 1/4" x 28 TPI UNF 1" HSS Circular Split Button Die - F11DB

Goliath 5/16" x 24 TPI UNF 1" HSS Circular Split Button Die - F12DB

Goliath 3/8" x 24 TPI UNF 1" HSS Circular Split Button Die - F13DB

Goliath 7/16" x 20 TPI UNF 1" HSS Circular Split Button Die - F14DB

Goliath 1/2" x 20 TPI UNF 1" HSS Circular Split Button Die - F15DB

Goliath 1/4" x 28 TPI UNF 1-1/2" HSS Circular Split Button Die - F11DD

Goliath 5/16" x 24 TPI UNF 1-1/2" HSS Circular Split Button Die - F12DD

Goliath 3/8" x 24 TPI UNF 1-1/2" HSS Circular Split Button Die - F13DD

Goliath 7/16 x 20 TPI UNF 1-1/2" HSS Circular Split Button Die - F14DD

Goliath 1/2" x 20 TPI UNF 1-1/2" HSS Circular Split Button Die - F15DD

Goliath 9/16" x 18 TPI UNF 1-1/2" HSS Circular Split Button Die - F16DD

Goliath 5/8" x 18 TPI UNF 1-1/2" HSS Circular Split Button Die - F17DD

Goliath 11/16" x 16 TPI UNF 1-1/2" HSS Circular Split Button Die - F117XDD

Goliath 11/16" x 18 TPI UNF 1-1/2" HSS Circular Split Button Die - F17XXDD

Goliath 3/4" x 16 TPI UNF 1-1/2" HSS Circular Split Button Die - F18DD

Goliath 1/2" x 20 TPI UNF 2" HSS Circular Split Button Die - F15DE

Goliath 9/16" x 18 TPI UNF 2" HSS Circular Split Button Die - F16DE

Goliath 5/8" x 18 TPI UNF 2" HSS Circular Split Button Die - F17DE

Goliath 3/4" x 16 TPI UNF 2" HSS Circular Split Button Die - F18DE

Goliath 7/8" x 14 TPI UNF 2" HSS Circular Split Button Die - F19DE

Goliath 1" x 12 TPI UNF 2" HSS Circular Split Button Die - F20DE

Goliath 1" x 14 TPI UNF 2" HSS Circular Split Button Die - F220DE

Goliath 1-1/8" x 12 TPI UNF 3" HSS Circular Split Button Die - F21DG

Goliath 1-1/4" x 12 TPI UNF 3" HSS Circular Split Button Die - F22DG

Goliath 1-3/8" x 24 TPI UNF 3" HSS Circular Split Button Die - F122DG

Goliath 1-1/2" x 12 TPI UNF 3" HSS Circular Split Button Die - F23DG

Goliath 1-5/8" x 12 TPI UNF 3" HSS Circular Split Button Die - F123DG

Goliath 1-3/4" x 12 TPI UNF 3" HSS Circular Split Button Die - F24DG

Goliath 1-7/8" x 12 TPI UNF 3" HSS Circular Split Button Die - F124DG

Goliath 2" x 12 TPI UNF 3" HSS Circular Split Button Die - F25DG

Description +

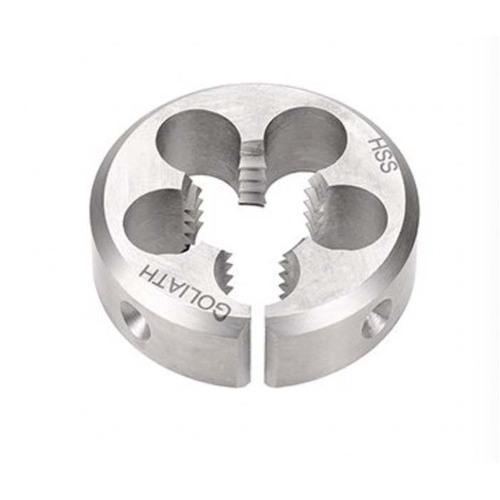

Goliath Circular Split Button Die HSS

UNF (Unified National Fine) this thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.
The thread profile of UNF is the same as for metric threads and is described in the JIS B0206 standard.
The thread is described by its major diameter and the number of threads per inch of length (TPI).
When used on external threads this series has greater tensile stress area than coarse threads of the same size.
Fine series threads will resist stripping out better than coarse threads in areas where the external and mating internal threads are subjected to loads equal to or greater than the capacity of the screw or bolt.
Fine threads are also used where the length of engagement is limited 1-1/4 or where wall thickness demands a fine pitch.
Manufactured from HSS this general purpose button die is designed for use in medium tensile materials .

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

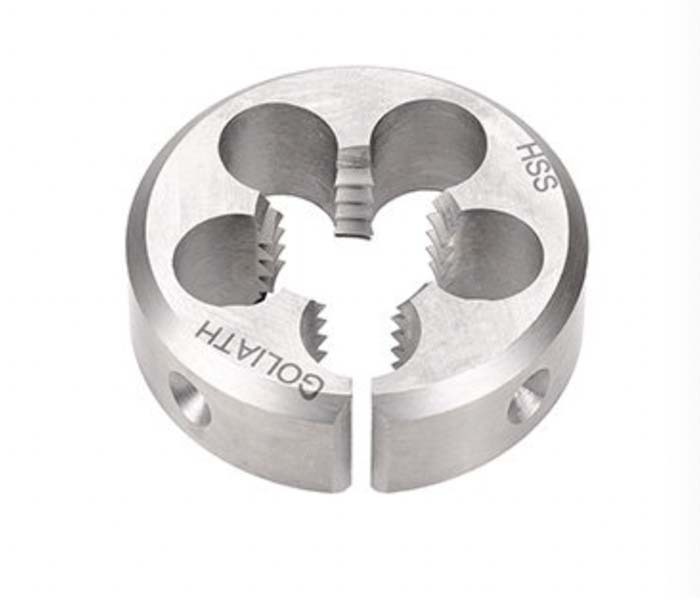

Goliath Circular Split Button Die HSS

SKU: A0174429

Type: Button Dies

$155.58

Inc. GST

Buy It Now

Available

The Goliath Circular Split Button Die HSS by Goliath is a Button Dies made from HSS suitable for use in medium tensile materials and conforming to the UNF thread profile common to metric threads. It provides 1-1/4 length of engagement and is suitable for Threading.
