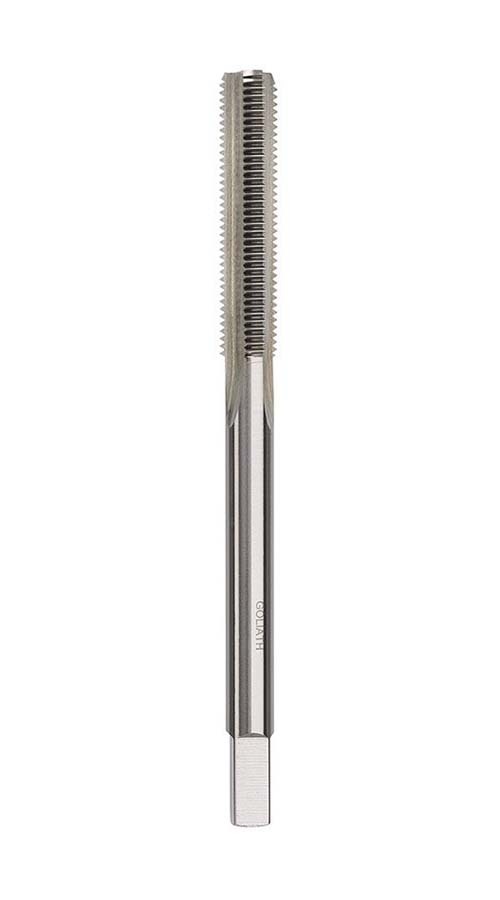

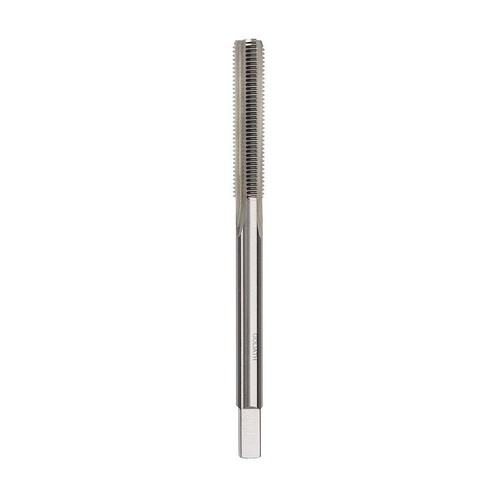

Goliath BSW Bottom Machine Nut HSS Tap - Long Reach

  • HSS Bright Finish BSW Machine Nut Intermediate Tap.
  • Machine Nut Taps are used where a long shank is needed and are available in Taper, Intermediate, and Bottoming leads.
  • To ensure easy and precise use the Machine Nut Tap Taper lead has a unique, very long entering chamfer.
  • This makes aligning the cutting end with the workpiece simple.
  • Ideal for tapping nuts, small quantities made from tough steel such as stainless steel as well as mild steels, or for rethreading rusty or worn threads.
  • Alternatively, the Intermediate and Bottoming leads are ideally suited to long reach threading applications where the thread needing to be tapped or cleaned is beyond the reach of a standard tap.
  • We recommend the Intermediate lead Machine Nut Tap for long-reach through-hole applications and the Bottoming lead for long reach blind hole applications.
  • British Standard Whitworth angle of thread is 55 degrees as opposed to 60 degrees in Metric and Unified threads.
  • This thread form was developed by Sir Joseph Whitworth in 1841.
  • The thread form has rounded roots and crests and is specified in BS84:1956.


  • AIMS SKU A0197925
  • Brand Goliath
  • Model Number L07AK3
  • Barcode Number 9349009019820
  • Diameter 1/8"
  • Thread Form Type BSW
  • Tolerance CL2
  • Thread Per Inch (TPI) 40
  • Drill Diameter 2.55mm
  • Length Overall (mm) 89
  • No. Of Flutes 3
  • Type Machine Nut Tap
  • Material HSS
  • Finish Bright
  • Lead Bottom
  • Standard BS949
SKU: A0197925

Goliath 1/8" x 40 TPI BSW Bottom Machine Nut HSS Bright Tap - L07AK3

Goliath BSW Bottom Machine Nut HSS Tap - Long Reach

RRP $132.36
SAVE $43.51 (33%)
