Description
Goliath UNC Coventry Chaser (Dieheads) S-Rake NAMCO
- UNC Coventry Chaser 1HD S-Rake NAMCO

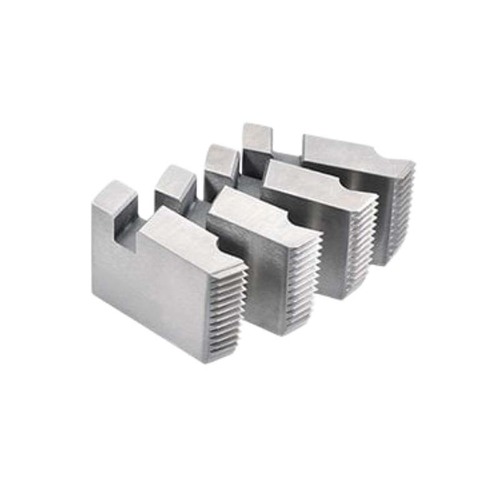

- 4 piece coventry style thread cutting chaser.
- Coventry Chasers (Dieheads) can be used on Turret lathes, CNC, and automatic screw machines.
- The total system is noted for its ease and simplicity in setting, and for the accuracy of cut over a very wide range of thread variations.
- Automatic self-opening at the completion of each cut makes Coventry ideal for batch or continuous production work.
- Coventry chasers are designed so that cutting takes place at the chamfer and the first full tooth. The other teeth are above centre height, so they act as a nut, ensuring accurate pitch.
- Rugged - simple construction for reliability and long life.
- Compactness - permitting use on machines with limited clearance.
- Accurate Pitch - due to the guiding action of the non-cutting portion of the die.
- Adjustability - providing fine regulation of finished diameter for 3a class threads.
- Parallel threads - due to the very efficient support of the dies in the diehead.
- Minimum downtime - for change of thread size, important for production economy on short to medium batch runs.
Specifications
- AIMS SKU A0196263
- Brand Goliath
- Model Number P34NC1SN
- Barcode Number 9349009032836
- Rake S
- Size 3/4"
- Diehead Size (inch) 1
- Thread Form Type UNC
SKU: A0196263
Goliath 3/4" UNC Coventry Chaser (Dieheads) 1" S-Rake NAMCO, 4 Pieces
