Description

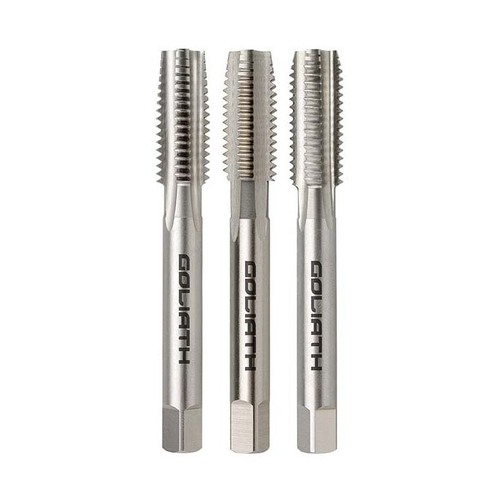

Goliath MF Straight Flute Tap Set HSS Bright

  • HSS Bright Finish Metric Fine Hand and Machine Tap Set (T, I, B).
  • HSS Straight Flute Short Machine and Hand Taps.
  • These general-purpose taps are ideal for creating new threads in a wide variety of materials.
  • Goliath HSS taps provide a high hardness-to-toughness ratio, compressive and tensile strength, good abrasion resistance and resistance to micro-chipping, ensuring a long tool life.
  • Metric Fine angle of thread is 60 degrees. The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
  • A larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength. The major diameter of the external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).
  • Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high-precision holes.
  • Intermediate Taps have a lead of four threads and are used in most general-purpose applications to cut a thread true to a pre-drilled pilot hole.
  • Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
  • Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
  • Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.

Specifications

  • AIMS SKU A0195653
  • Brand Goliath
  • Model Number C51XED4
  • Barcode Number 9349009004550
  • Diameter 25mm
  • Thread Form Type Metric Fine
  • Tolerance ISO 2
  • Pitch 1.5mm
  • Drill Diameter 23.5mm
  • Length Overall (mm) 120
  • No. Of Flutes 4
SKU: A0195653

Goliath 25 x 1.5mm MF Straight Flute Tap Set HSS Bright - C51XED4

Goliath MF Straight Flute Tap Set HSS Bright

$476.72
RRP $710.30
SAVE $233.58 (33%)
