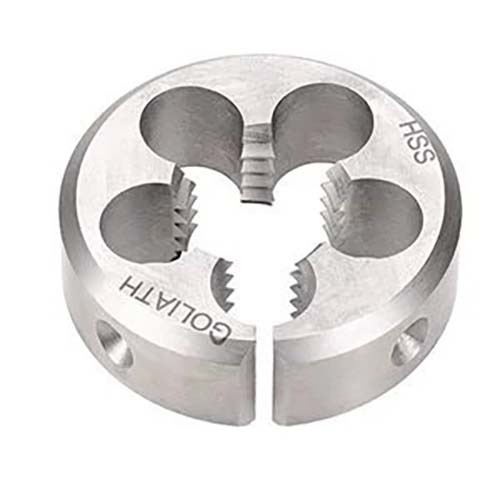

Goliath Circular Split Button Die HSS

  • UNF (Unified National Fine) this thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.
  • The thread profile of UNF is the same as for metric threads and is described in the JIS B0206 standard.
  • The thread is described by its major diameter and the number of threads per inch of length (TPI).
  • When used on external threads this series has greater tensile stress area than coarse threads of the same size.
  • Fine series threads will resist stripping out better than coarse threads in areas where the external and mating internal threads are subjected to loads equal to or greater than the capacity of the screw or bolt.
  • Fine threads are also used where the length of engagement is limited 1-1/4 or where wall thickness demands a fine pitch.
  • Manufactured from HSS this general purpose button die is designed for use in medium tensile materials .


  • AIMS SKU A0199465
  • Brand Goliath
  • Model Number F11DD
  • Barcode Number 9349009024398
  • Outer Diameter 1-1/2"
  • TPI 28
  • Diameter 1/4"
  • Thread Form Type UNF
  • Type Button Dies
  • Material HSS
  • Thread Form Type UNF
SKU: A0199465

Goliath 1/4" x 28 TPI UNF 1-1/2" HSS Circular Split Button Die - F11DD

Goliath Circular Split Button Die HSS

RRP $119.17
SAVE $23.19 (19%)
