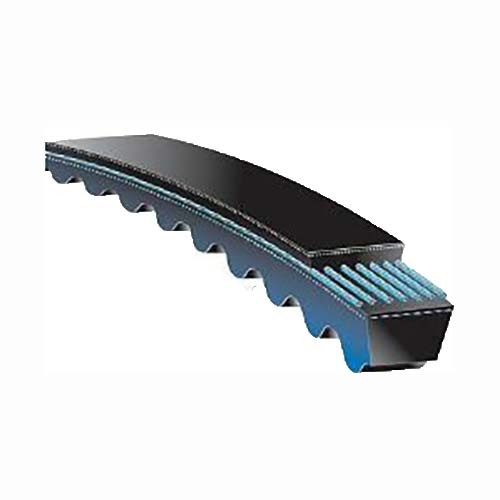

Gates XPZ2120/3VX836 QuadPower V-Belt
Available
The Gates QuadPower 4 Drive Belt XPZ section delivers high-power, high-efficiency transmission for demanding industrial drives. The cogged underside reduces operating temperature on smaller sheave diameters, extending belt life and improving drive efficiency compared to equivalent wrapped V-belts of the same section.
Where this product is used
Gates Drive Belts are engineered for high-power industrial, agricultural and heavy-duty applications. Typical end uses include:
- High-power industrial drives on mills, crushers, mining conveyors and heavy-duty process equipment
- Agricultural and construction machinery subject to shock loads, vibration and variable torque demands
- Quarrying and material-handling systems where superior power ratings and extended belt life are critical
Key specifications
| Specification | Detail |
|---|---|
| Belt Section | XPZ |
| Series | QuadPower 4 — Gates’ 4th-generation service-free raw edge V-belt |
| Cross-reference (RMA code) | 3VX836 |

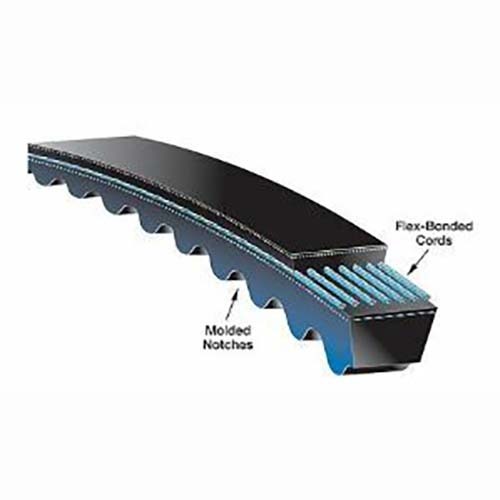

| Construction | Raw edge, moulded-notch (cogged) 2nd-generation EPDM compound; minimal-elongation polyester tensile cords with blue adhesion layer for stable tension over the belt’s full life (no re-tensioning required); double Flex-Weave textile backing; non-self-igniting; static conductive (ISO 1813 & RMA IP3-3) |
| Nominal Dimensions (Width x Height) | 10 x 8 mm |
| Belt Length | 2120 mm (pitch length) |
| Available Length Range (single belt) | 600 - 3550 mm |
| Temperature Range | -50°C to +130°C (ISO XP-coded belt) — RMA-coded 3VX/5VX/8VX equivalents are rated -57°C to +121°C per Gates |
| Energy Efficiency | Up to 98% — approx. 3 percentage points higher than a wrapped V-belt of the same section (Gates) |
| Compliance | REACH & RoHS compliant; ATEX compatible (ISO 1813 static conductivity); halogen-free |
| Belt Matching | Meets Gates UNISET tolerances — any Quad-Power 4 belt of the same section and length matches any other, no belt-matching required |
Selecting the right option
Select by section designation: XPZ (10 mm top, lightest duty), XPA, XPB, XPC (widest, highest power). QuadPower 4 XP belts are direct replacements for standard narrow V-belts of the same section and length — the cogged underside allows operation on smaller sheave diameters than wrapped equivalents. Confirm the published minimum sheave diameter for your section before fitting. For Tri-Power AX/BX/CX cogged classical belts, cross-reference the A/B/C pitch length. Contact AIMS if you need a power-rating check for your specific drive.
