Description

** This belt can be ordered in a custom width of your choice. Please contact us for a quotation. **

Descriptions

  • Due to its double and directly opposite teeth, Twin Power® synchronous belts ensure high loading capacity on contra-rotating drives and ensure smooth running and high flexibility
  • PowerGrip® HTD® Twin Power® belts allow for higher offered drives than classical pitch PowerGrip® Twin Power®

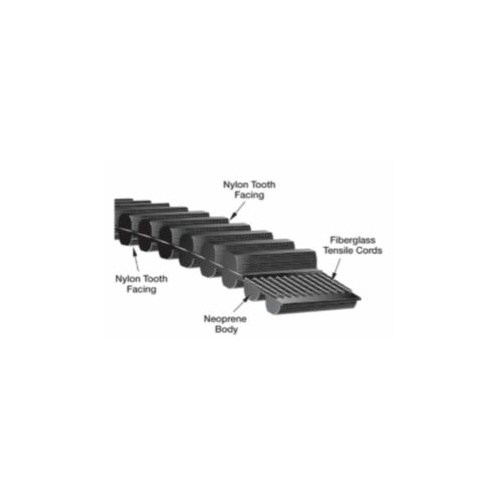

Construction

  • Similar in construction to PowerGrip® HTD® synchronous belts: strong tensile member, precision formed elastomeric teeth and body
  • Neoprene body provide protection against grime, grease, oil and moisture
  • Fibreglass tensile cords
  • Tough nylon facing protects and reinfonces the tooth surface.

Advantages

  • Twin Power® can transmit up to 100% of its maximum rated load from either side of the belt; alternatively, it can transmit a load on both sides – provided the sum of the loads does not exceed the maximum capacity
  • Non-slip positive drive
  • Runs at low noise
  • Compact, light-weight, and cost e?ective drives
  • High tooth jump resistance
  • High efficiency positive drive
  • Maintenance free
  • No lubrication

Temperature Range

  • Range: -30°C to +100°C

Specifications

  • AIMS SKU A0025763
  • Brand Gates
  • Model Number TP1360-8M-30
  • Barcode Number 5412571336566
  • Timing Belt Code TP1360-8M-30
  • Length (mm) 1360
  • Belt Width (mm) 30
  • Number of Teeth 170
  • Teeth Depth (mm) 3.4
  • Pitch (mm) 8
  • Depth (mm) 8.8
  • Type Twin Power Belt - Double Sided Synch
  • System of Measurement Metric
  • Material Fibreglass Cord
  • Section 8M
  • Series Gates PowerGrip HTD Timing Belt
SKU: A0025763

Gates TP1360-8M-30 (TP1360-8M-30) Twin Power HTD Double Sided Synchronous Belt

Twin Power Belt - Double Sided - Synchronous

$314.53
RRP $507.32
SAVE $192.79 (38%)
